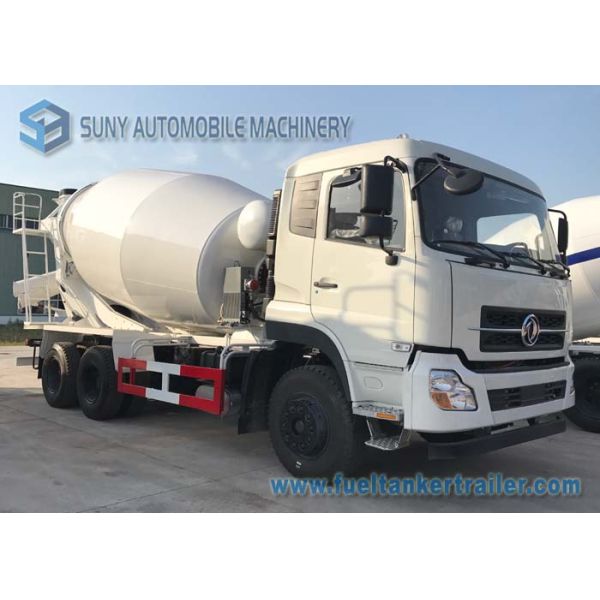

4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors
Specifications
Brand Name :
SUNY
Model Number :
SUNNY DF153MT
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 25, 000 ~75, 000 per Unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 Units per year
Delivery Time :
20 ~ 35 working days after we get the deposit
Packaging Details :
40HQ container
Mixing effective volume (m3) :
3 to 7M3
Hydraulic oil pump :
Germany ZF, Italy PMP, American Sao
Hydraulic motor :
Germany Rexroth, Heidler, Italy PMP
Reducer :
577L (Bon Feili)
Cooling oil tank :
15L (AKG)
Tilt :
13.5 (°)
Rotation speed :
0-15 (rpm)
Feeding speed :
≥3(m3/min)
Discharge speed :
≥1 (m3/min)
Discharge residual :
≤1(%)
Concrete slump :
70-260(mm)
Water supply form :
Water supply
Water tank capacity :
350 (L)
Description

4M3 5M3 6M3 7M3 Mixer truck Dongfeng 3 to 7cubic cement concrete mixer truck Blue Red White

Company Information:

Hubei SUNY Special Automobile Manufacture Co . , Ltd is a professional transit mixer truck manufacturer in China . Supply ability of transit mixer truck is 200 units per month . We have a perfect quality inspection system for transit mixer truck . welcome to our company to purchase the transit mixer truck.

Specifications:

4M3 5M3 6M3 7M3 Mixer truck Dongfeng 3 to 7cubic cement concrete mixer truck Blue Red White

Vehicle parameters
Vehicle Modes Vehicle Brand SUNY
Overall dimensions 6173 x2462 x2710 Curb weight 13650 kg
Loading capacity 4 to 7m3

Chassis parameters
Chassis model EQ3141KJ/EQ3168KJ Chassis brand DongFeng
Overall dimensions 6173 x2462 x2710 Wheel base 1940 + 1860 mm
Front / rear wheel track 1995 / 1800 / 1800mm Front / rear suspension 1245/1128mm
Approach / departure angle 26 / 35 ° Maximum speed 85 km / h
Chassis Manufacturer BEIBEN TRUCK
Cab Configuration NG80B a row and a half ( with sleeping berth ) , allowable 3 passengers , air conditioner
Color Blue Red White , other color is optional
Engine Model WP10 . 340E32
Emission Euro 2
Type

6 cylinders , in - line , water - cooled , 4 - stroke , turbo inter - cooling , direct injection , exhaust valve brake , diesel engine
Rated power 340hp , rated power speed 2200 rpm
Displacement 9726 ml
Max . torque 1250 N . m
Bore x stroke 126 x 155 mm
Manufacturer Weichai Power Co . , Ltd
Tire Size 12 . 00R20 steel wire tire
Number 10 + 1 nos
Clutch φ 430 diaphragm clutch
Fuel tank 300L aluminum alloy
Front axle 7 . 5 tons
Rear axle 13 . 0 tons
Drive form 4x2
Suspension Multi leaf springs
Rated voltage 24V , DC
Transmissions Gearbox 9T1680 , 9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above , please take the actual product as the standard
transit mixer truck structure parameters
Loading capacity 8 m3 Tank material 6 mm alloy steel
Tank front head 8 mm alloy steel Reducer Germany ZF
Hydraulic pump Germany REXROTH Hydraulic motor Germany REXROTH
Radiator KAIPENG Color and Logo Optional
Standard configuration

Less than 7m3 : chassis , sub frame , mixer tank ( main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material ) , domestic reducer , hydraulic pump , hydraulic motor , radiator , water tank , cleaning hose , feed port , discharge port , climbing

ladder , air pressure water supply device .
Selective configuration

1 , American SALI56 hydraulic pump , SALI63 hydraulic motor

2 , Italy P071 hydraulic pump , M063 hydraulic motor

3 , A full set of imported parts ( ZF3301 reducer )
Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.Italy

Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America

SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.

MOQ,payment terms , delivery terms , price
MOQ One unit
Payment terms T / T 30 % down payment , 70 % balance after inspection before delivery
L / C is optional
Inspection Buyer ' s agent or third party inspection agency , the cost is paid by the buyer
Delivery term 20 days from down payment
Documentation Maintenance manual
User manual
Packing list
Commercial invoice
Certificate of origin is optional
Spare parts list for purchase is optional
Standard tools With standard tools for chassis and transit mixer truck structure
Packing The main vehicle nude and covered with wax , attached parts and tools put into standard export box
Other requirements Please fill in here
FOB / CNF / CIF USD

Because exchange rate and ocean freight may be changed in near future , so the price is only valid for 15 days . Please confirm the price again with our company before placing the order , thanks.
