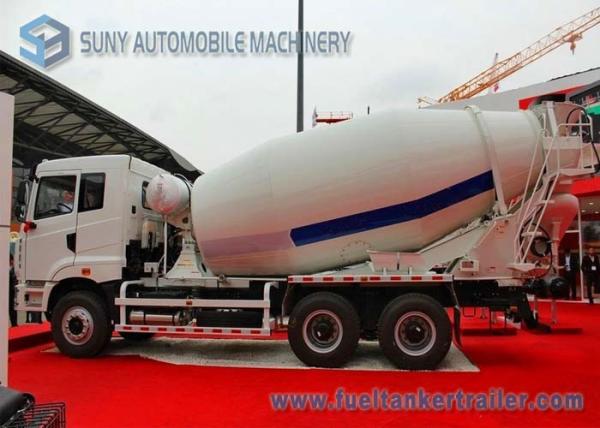

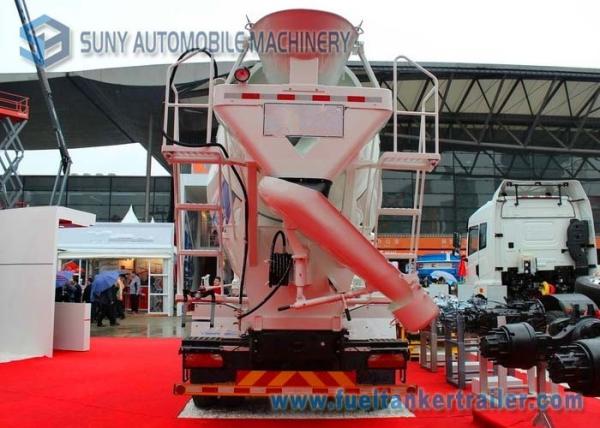

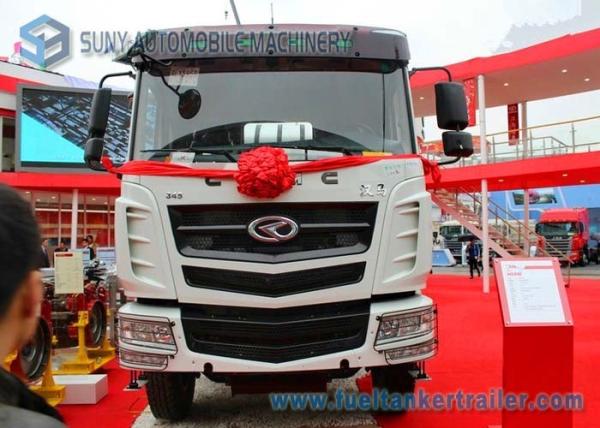

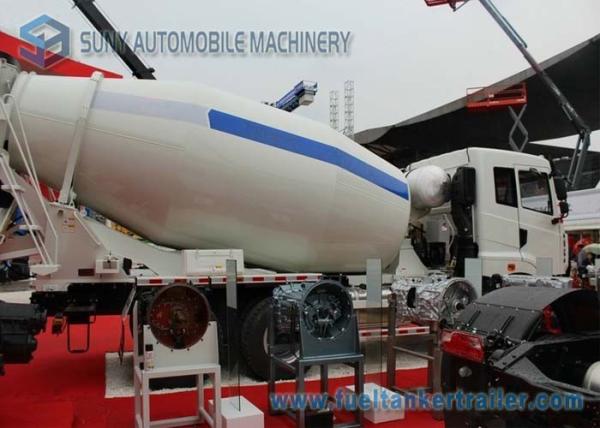

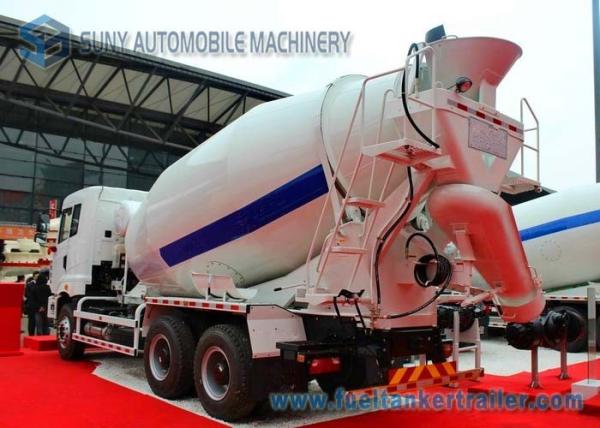

11 M3 Transit Mixer Truck CAMC 345Hp Detachable 90CM With Anti Leakage Groove

Description:

1) Color: White with gray and blue stripes, Optional base on customers ' requirements;

2) Engine: CAMC, 345 hp;

3) Water Tank: White, 420 Litres;

4) Chute: White, Detachable, 90 CM with anti leakage groove;

5) Mixer Drum: White with gray and blue stripes, 11 M3 mixing volume;

6) Cab: White with 4 side windows and one sleeper;

7) Chassis: CAMC Hanma;

8) Ladder: White, both left and right sides;

9) Reducer brand: Italy brand, BONFIGLIOLI;

10) Hydraulic pump brand: Italy brand, MESSORI;

11) Hydraulic motor brand: Italy brand, MESSORI.

Applications:

The mixer truck is for mixing and transporting concrete, beton, cement. Our mixer trucks are mainly made by alloy steel, with high quality and competitive price.

Competitive Advantage:

1) For producing mixing tank and mixing blade, our factory use B520JJ alloy steel as material, other factories use Q235 carbon steel. B520JJ alloy steel is 1 ~ 2 times stronger than Q235 carbon steel. Our mixing tank ’ s life can be 50 ~ 80 thousand cubic meters, our mixing blade ’ s life can be 30 ~ 40 thousand cubic meters.
2) Mixing tank is equipped with sectional mold tooling which ensures the tank round and coaxial. Automatic welding ensures the weld seam smooth, beautiful and stronger. Other factories don ’ t use sectional mold tooling and automatic welding.
3) 3D mixing technology ensures uniform mixing, input rate ≥ 8m3 / min, output rate ≥ 5m3 / min, residual rate ≤ 0.45 % , Slump 50 mm ~ 220 mm. We weld special wear rib on the edge of mixing blade which makes the mixing blade ’ s life increasing more than 12 % . Other factories don’t have 3D mixing technology and special wear rib.
4) Reducer, hydraulic pump and motor are optional base on customers ’ requirements.

Specifications:

11 M3 Transit Mixer Truck CAMC 345Hp BONFIGLIOLI Reducer MESSORI Pump And Motor

More Pictures:

Welcome to contact us for more pictures and information.
