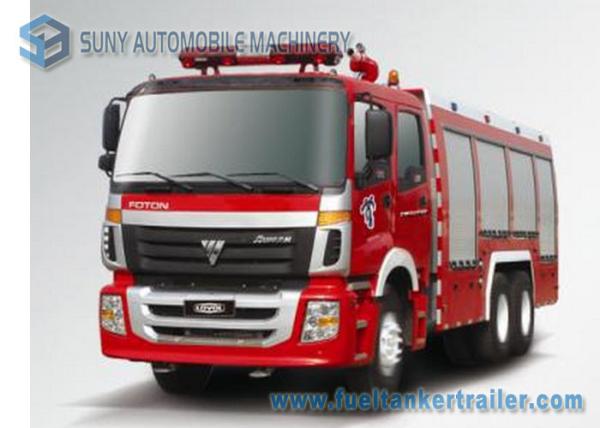

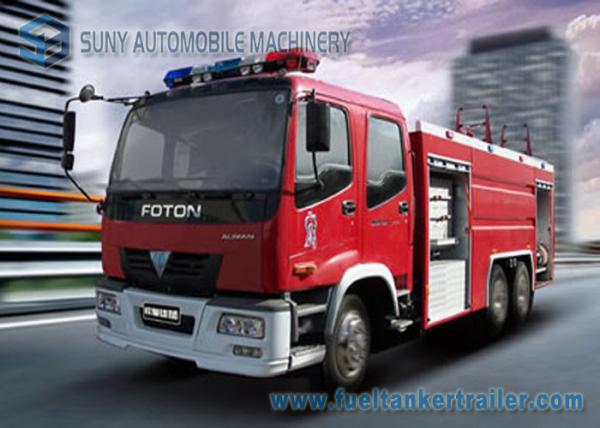

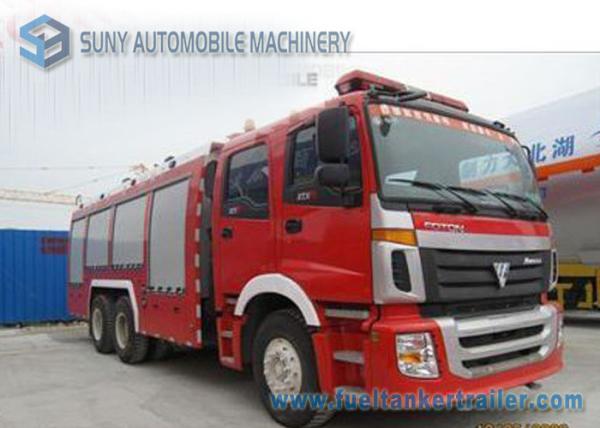

12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
12000L Water Fire Fighting Vehicle 270hp Double Row Cabin FOTON 6X4 Chassis
Specifications
Brand Name :
SUNY
Model Number :
SY5160XFSC
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD55000 /set- USD75000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
200 set per month
Delivery Time :
15-25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Tank material :
12000L
Dimension :
9905x2480x3500 mm
Engine :
WP10.270
Drive :
6X4
Wheel base :
4300+1350 mm
Chassis brand/ model :
FOTON/ BJ1253VLPJE
Description

12000L Water Fire Fighting Trucks 270hp Double Row Cabin FOTON 6X4 Chassis

Description & application:
1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
2- Water and foam fire truck water tank equipped with fire pump and foam mixed system, bubble gun, cannon, and etc., can spray water and foam mixture to put out the fire during extigushing. It is specially suitalbe in petrochemical industry, power plants and valuable equipment instruments, it is the necessaary fire truck for petrochemical enterprises, oil terminals, airport and city fire extigushing field.
3- There are Dry powder fire truck and Ladder fire truck optional

Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.

Specifications:

FOTON 6X4 12000L Water / Foam Fire Fighting Trucks 270hp double row

Description

FOTON 6x4 fire truck

Drive Model

6x4

Chassis

BJ1253VLPJE

Fact cubage

11.655cbm(water tank:9cbm, foam tank 2.655cbm)

Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

9905x2480x3500

Wheel base (mm)

4300+1350

Overhang (front/rear) (mm)

1555/2600

Wheel track (front/rear) (mm)

2005/1865/1865

Approach/Departure angle

18/16

Weight in KGS

Curb Weight

12040

GVW.

24490

Max. driving speed(km/h)

90

Engine

Model

WP10.270

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

270

engine capacity(ml)

199

Emission standard

Euro III

Gearbox

8 forwards & 1 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

200

Tire

12.00R20 , 10pcs + 1 spare

Brakes

dual circuit compressed air brake

UPPER

Water tank Volume

9cbm

Foam tank Volume

2.655cbm

Loading Capacity

11.655

Protective material

Carbon steel

Fire Pump

Mode

CB30.60

Flow

60L/s

Pressure

1.0Mpa

Fire Monitor

Mode

PL48

Pressure

1.0-1.2MPa

Flow

48L/S

Fire Distance(water/foam)

55m/60m

Rotation Angle

360/-30~80
