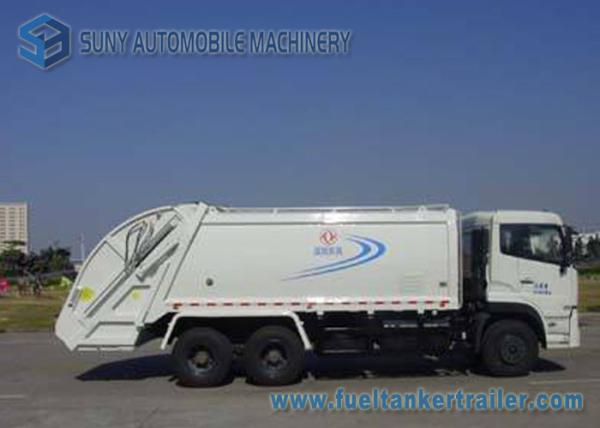

8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
Specifications
Brand Name :
SUNY
Model Number :
SY5154LJHW
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD45000-USD60000
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200 set per month
Delivery Time :
15 - 25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/model :
dongfeng 6x4 Garbage truck
Garbage van capacity :
16 m3 18 m3
Tank material :
Q235
Dimension :
8532x2470x3338   mm
Engine :
210 hp
Drive :
6x4
Wheel base :
3500 mm + 1300 mm
Description

8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG

Description&Applications:

Compression garbage truck is the urban sanitation special vehicle which is used to highly collecting,transiting garbage and could avoid to leak along the way leading to secondary pollution in the collecting and transiting process.It is the ideal urban sanitation equipment.

1. The collecting method is simple.

2. High compression ratio and big loading capacity

3. Automatic operation: adopting computer controlling system,could set two operating models with full-automation and half-automation.

Competitive Advantage:

1- powful R & D capabilities ------ we can design and produce the truck according to different trash cans of different countries so that it can be fit for the different countries’ demand.

2- strict quality control ---- stable quality for each truck

3- competitive price ----- based on same product, our price is most competitive

4- best service ----- we cherish each customer and opportunity.

Specifications:

Diesel Q235 DONGFENG 6x4 3 Axle Garbage Trucks 8000kg /16M3 Load

Main technical parameters

Name

garbage compressor truck

Outline size(mm)

8532x2470x3338

Model

dongfeng brand

Gross weight(kg)

21000

Engine model

B210-33

Loading weight(kg)

8955

Emission/ ( ml/Kw)

5900ml/155kw, 210Hp

Curb weight(kg)

11750

Engine type

Diesel, 6 Cylinders, Direct line, Turbocharge and water cooling

Fuel type

diesel

Wheelbase(mm)

3500+1300

Max speed(km/h)

90

Tire model / number

10.00-20 / 7 Units

Operation control system

Electrically hydraulic

Transmission

6 speed with over drive, 6F&1R

Traction system

6x4

Electric System

24v

Approaching angle(°)

19

Front / rear track(mm)

1940/1860

Departure angle(°)

12

Front/rear hang(mm)

1425/2487

Upstructure configuration

Tank volume(L)

18000

Steering

Power, Dong Feng

Material

carbon steel, stainless steel, side thickness 3mm, bottom thickness 4mm

equipment

rear loading system 240L, 360L, 600L garbage container

Optional

Air Condition,CD, Video, Installing the rotation device for the garbage plastic bucket

8000kg / 16M3 Load Waste Collection Truck Diesel Q235 Tank DONGFENG
