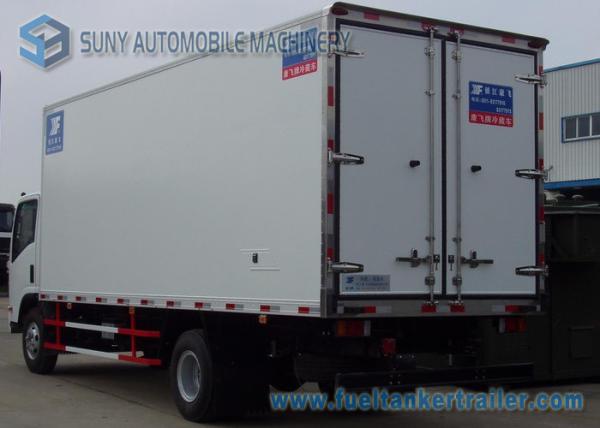

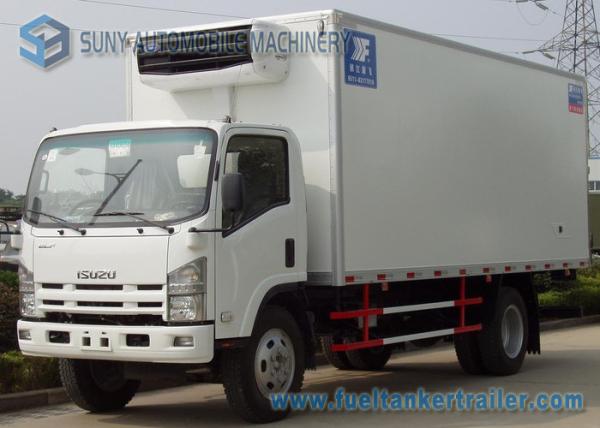

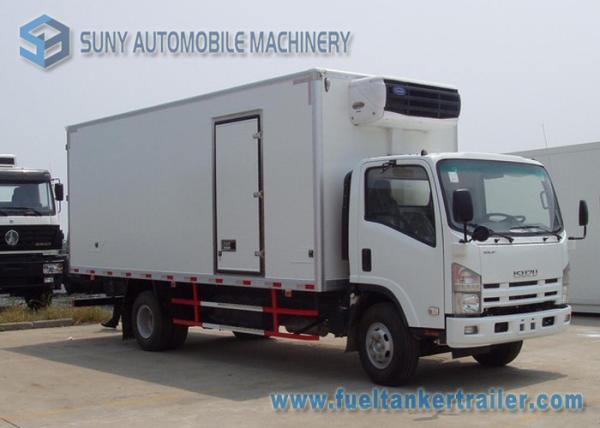

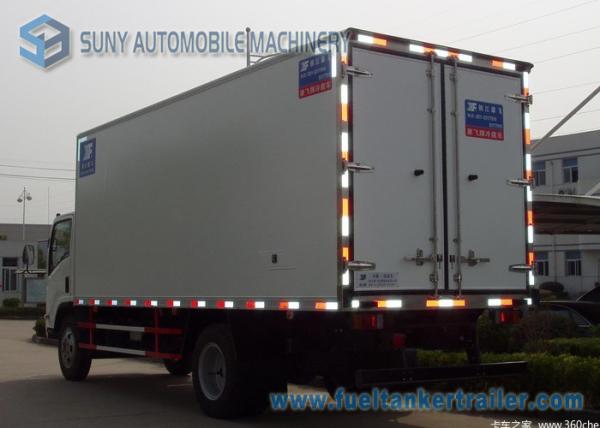

ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
ISUZU 4 X 2 Refrigerator Van Truck 8000KG White 6 Wheelers Refrigerator Van Truck
Specifications
Brand Name :
SUNY
Model Number :
QL11009LARY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 35000-40000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk, ro-ro, container
Type :
4 X 2 Refrigerated Van Truck
Loading Capacity (kg) :
8000
Wheelbase (mm) :
4175
Tire & Quantity :
8.25-20 & 6+1
Engine :
4KH1-TCG40
Maximum Power :
139kw / 190hp
Van Dimension (mm) :
5380 * 2200 * 2000
Temperature Range :
- 10℃
Van Material :
Fiber glass
Description

ISUZU 4 X 2 Refrigerated Box Truck 8000KG White 6 Wheelers Refrigerator Van Truck

Product Description:

Regrigerated compartment specific requirements:

In addition,different products have different requiremernt on envelope.For example,refrigerated trucks transporting meat need to customize the link on the envelope;to store refrigerated delivery truck to do small quantities,varieties,require multi-temperature refrigerated trucks layer,different temperature requirements,handing and more frequent you need to open the door refrigerated trucks.

Product Parameter:

Type

4 * 2 refrigerated van truck

Brand

IUSZU

Emission Standard

Euro 4

Cab

Single row, with A/C

Vehicle Description

Overall dimensions(mm)

7500 * 2420 * 3360

G.V.W (kg)

15000

Curb weight(vehicle) (kg)

10055

Loading capacity (kg)

8000

Whole vehicle main performance

Max speed (Km/h)

95

Engine

Engine model

4KH1-TCG40

Maximum power (kw)

139kw / 190hp

Displacement (lit)

5193

Number of cylinders

4

Type of fuel

Diesel

Chassis Description

Chassis model

QL11009LARY

Wheel base (mm)

4175

F / R overhang (mm)

1605 / 1575

F / R tread (mm)

1810 / 1907

Gear box

6 forwards & 1 reverse

Spring plate

8 / 10 + 6

Type of fuel

Diesel

Brake system

Air braking

Operation control system

Power Steering

Electric system

24V

Tires & Quantity

8.25-20 & 6+1

The Description for Refrigerated

Dimension (mm)

5380 * 2200 * 2000

Fact volume (M3)

25

Material

The fiber-glass between the inner-outer color plate

Independent refrigeration unit

Equipped with the K693 independent refrigerated unit

Temperature range

-10°C

Heat preservation layer

8cm

Side door

For your optional

The standard parts of van

Stainless lock,stainless cornerite,stainless frame,dome light,bumper block,ventilating slot
