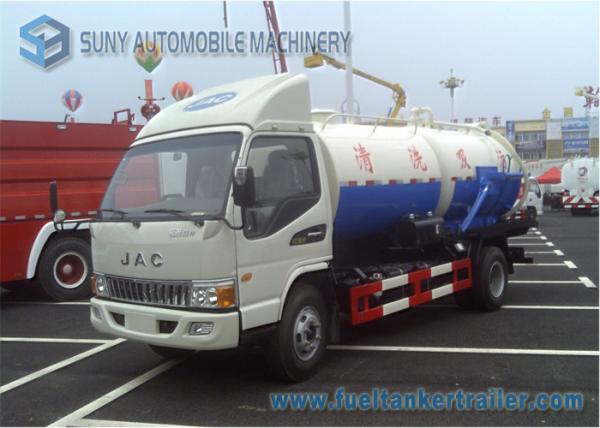

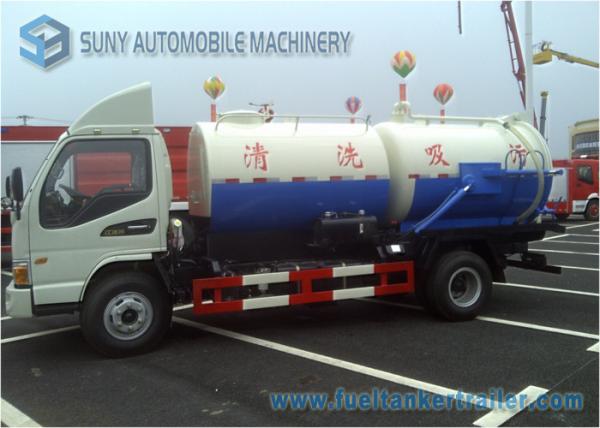

JAC 141hp 3000 L Sewage Suction Truck With Special Vacuum Pump
JAC 141hp 3000 L Sewage Suction Truck With Special Vacuum Pump
JAC 141hp 3000 L Sewage Suction Truck With Special Vacuum Pump
JAC 141hp 3000 L Sewage Suction Truck With Special Vacuum Pump
JAC 141hp 3000 L Sewage Suction Truck With Special Vacuum Pump
JAC 141hp 3000 L Sewage Suction Truck With Special Vacuum Pump
Specifications
Brand Name :
SUNY
Model Number :
HFC1081P91K2C5
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD20000-28000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk,ro-ro,container
GVW :
8280 kg
Tank material :
Q235
Traction system :
4x2
Sewage sludge Tank Volume :
3000 L
Water Tank Volume :
3000 L
Tire specification :
7.50-16 14PR
Wheel base :
3815 mm
Engine model :
ISF3.8s4141
Description

JAC 141hp 3000 L Sewage Suction Truck With Special Vacuum Pump

Applications:

1. Cleaning of pipes from pollution.

2. Liquidation of emergency blockages.

3. Removal of ground formations

Competitive Advantage:

1. Equipped with special vacuum pump, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment, Time for full suction<5min

2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

4. The diesel engine ( air compressor unit ), providing compressed air.

Specifications:

Vehicle Description

Vehicle model

Sewage suction truck

Overall dimensions ( mm )

7130*2240*2670

GVW ( kg )

Appro×8280

Fact loading capacity ( L )

6000

Mass in working order ( kg )

Appro×5340

Max. Speed ( km/h )

95

Chassis Description

Chassis Model

HFC1081P91K2C5

Cab

Standard cabin with left hand drive

Color

Optional

Allowable person in cab

2/3

Wheel base ( mm )

3815

Front/Rear track base ( mm )

1680/1600

Front/Rear overhang ( mm )

1085/2230

Number of axles

2

Axle

Front axle

2980

Rear axle

5300

Traction system

4*2

Operation control system

Power steering

Braking system

Full air

Electric system

24V

Transmission

5speed

Spring plate

9/11+8

Tire specification

7.50-16 14PR

Tire quantity

6+1

Engine Description

Engine model

ISF3.8s4141

Emission standard

Euro 4

Exhaust/output

3760 ml/105 kw

Horse power

141hp

Up-parts Description

Sewage sludge Tank Dimension ( mm )

φ1450×2055

Water Tank Dimension ( mm )

φ1400×2130

Standard Equipment

Equipped with high-power vacuum suction sewage pump.

Equipped with lifting function, and double hydraulic cylinder, rear cover can hydraulic opening with self-flowing valve.

Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment.

Working Condition:

1,Altitude: 0-4500 m

2,Temperature: -350 C~+450 C

3,Relative humidity: 80%

4,Wind force: ≤8 degree
