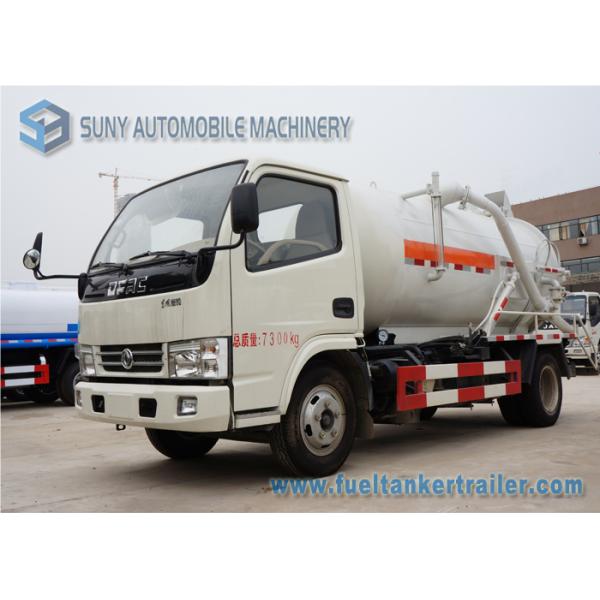

Dongfeng 4000L 100hp Vacuum Tank Truck 4x2 Suction Type Sewer Scavenger

Description:

1. Independent high pressure jet washing & cleaning system helps ensure safe operation and high efficiency.

2. Independent vacuum suction system helps ensure efficient capacity and high suction performance.

3. Sludge tank is equipped with liquid level observation door and high liquid level protection alarm device, in the event that the liquid level in tank reaches the designated height, the engine's rotation speed will be automatically altered into idle speed.

4. Three kinds of sprinklers are employed: rhombic penetrate nozzle, mushroom nozzle, and bomb nozzle.

5. High pressure dredging & cleaning and vacuum pollutant absorption are integrated (for multiple-purpose usage).

Applications:

Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.

Competitive Advantage:

1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min

2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

4. The diesel engine ( air compressor unit ), providing compressed air.

Specifications:
