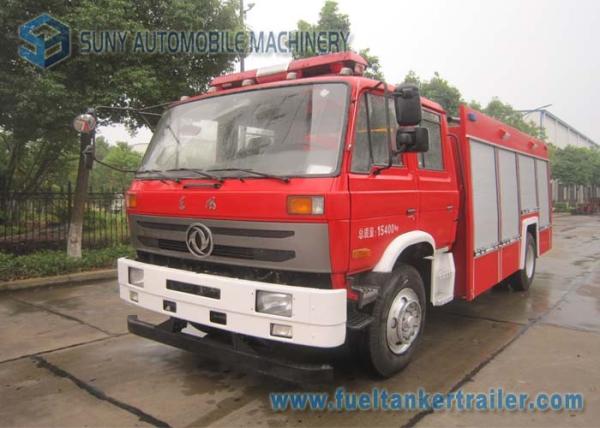

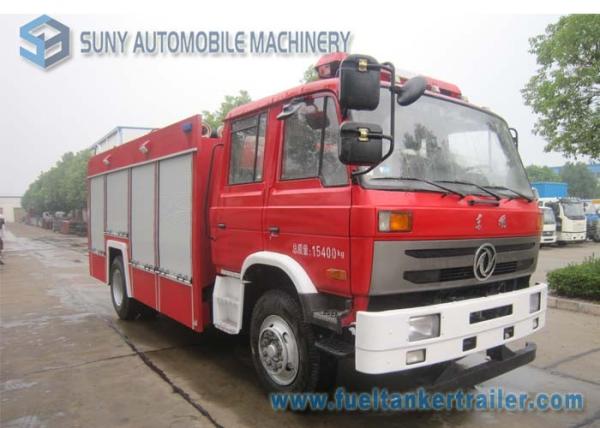

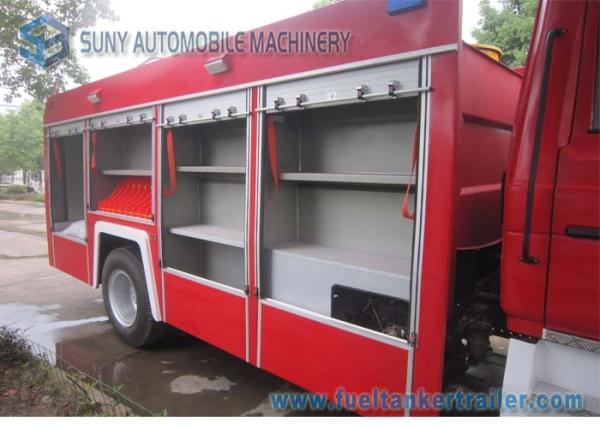

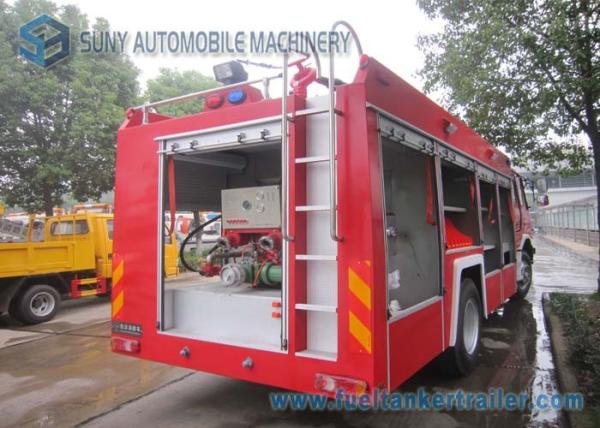

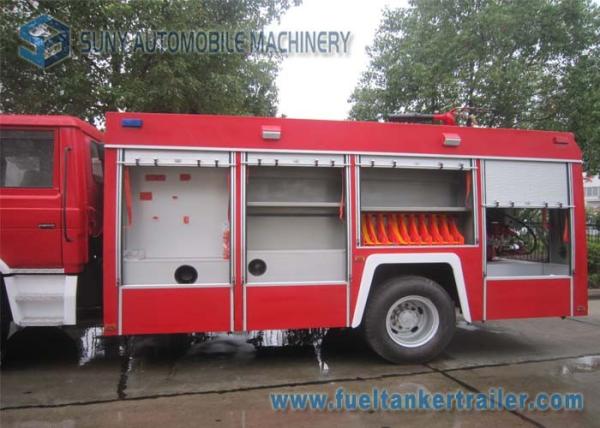

Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine
Specifications
Brand Name :
SUNY
Model Number :
SY5151XF
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD45000 /set- USD55000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
200 set per month
Delivery Time :
15-25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/ model :
Dongfeng/ EQ1160GKJ1
Water tank capacity :
6000L
Foam tank capacity :
1000L
Tank material :
Q235
Dimension :
7990* 2490* 3410 mm
Engine :
ISB190 40
Drive :
4X2
Wheel base :
4500 mm
Description

6000 l--7000 l 4x2 2 Axle Water And Foam Fire Fighting Truck 190hp Dongfeng Double Row
Description & application:
1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
2- Water and foam fire truck water tank equipped with fire pump and foam mixed system, bubble gun, cannon, and etc., can spray water and foam mixture to put out the fire during extigushing. It is specially suitalbe in petrochemical industry, power plants and valuable equipment instruments, it is the necessaary fire truck for petrochemical enterprises, oil terminals, airport and city fire extigushing field.
3- There are Dry powder fire truck and Ladder fire truck optional

Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.

Specifications:

6000 l--7000 l 4x2 2 Axle Water And Foam Fire Fighting Truck 190hp Dongfeng Double Row

Vehicle Description

Brand-Series

Dongfeng 4x2 Fire Truck

Emission Standard

Euro 4

Chassis Model

EQ1160GKJ1

Fuel type

Diesel

Cabin

Dongfeng Double row,Optional A/C

Whole vehicle main dimensions (mm)

Overall size (L× W× H )

7990*2490*3410

Wheel base

4500

Front overhang

1250

Rear overhang

1900

Min. ground clearance

515

Weight data (kg)

G.V.W

15400

Curb weight ( chassis )

8250

Max payload

6000-12000

Engine

Model

ISB190 40

Maximum power

140kw / 190 hp

Number of cylinders

6

Displacement ( L )

5.900

Engine Manufacturer

Dongfeng cummins engine

Transmission

Number of gears

5 forward gears, 1 reverse gear ( Manual )

Axle

Front axle

3.6 T

Rear axle

10 T

Suspension

Spring Leaf spring

9/ 10+8

Steering system

/

Powering steering

Brake system

Service brake

Dual circuit compressed air brake

Electric device

Rated voltage

24 V

Tires & Quantity

10.00- 20 & 8+ 1

Tank Description

Fact cubage ( L )

Water 6000 L / Foam 1000 L

Tank material

Carbon steel Q235

Others

Pump: CB10/40, flowing rate: 40 L / s /MPa
Monitor: PL32, flowing rate: 32 L/ s / MPa,
Covering range: Water≥ 50 m, foam≥ 45 m

Accessories in Fire Truck

Suction pipe (4 m )

2 pcs

Hose coating

4 pcs

Water filter

1 pcs

Protecting bridge of hose

1 set

Manifold for separating

1 pcs

Hose link

4 pcs

20m Fire hose( Φ65 & 80 )

4+6 pcs

Fire hydrant wrench
( Ground )

1 pcs

Manifold for converging

1 pcs

Fire hydrant wrench
( Underground )

1 pcs

Waist ax

1 pcs

Suction pipe wrench

2 pcs

Dry-powder fire extinguisher

1 pcs

Fire bucket

1 pcs
