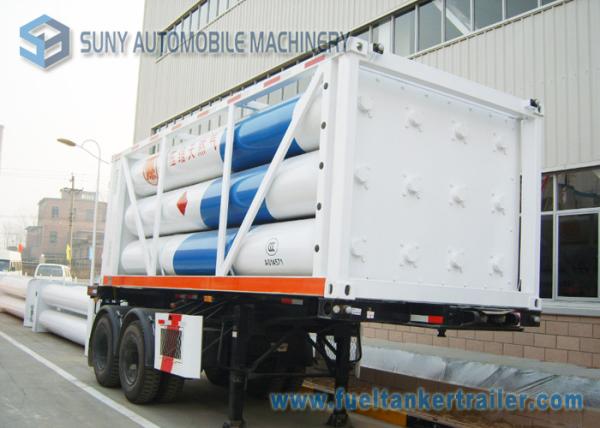

High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
Specifications
Brand Name :
SUNY
Model Number :
SY20FT-12CNG
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 92,000 ~ 120,000 / unit for FOB China
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
100 units/ quarter
Delivery Time :
25~35 days after we get the deposit
Packaging Details :
nude and surface protection
Total Volume :
12.48 m3
Operation pressure :
25 Mpa
Hydrostatic test pressure :
37.5 Mpa
Material :
Alloy steel 4130X
Tank shape :
cylinder tube
Dimentions :
6058*2438*2035 mm
CNG tube :
12 tubes
Description

CNG Tank Trailer 12 Tubes CNG Tanker Containe

Competitive Advantage:

1. Factory direct sales, fast delivery
2. Lowest price comparing the same quality
3. High Quality, good performance,
4. 18 months warranty, main beam whole life time grantee!
5. ISO11120, CCC, SGS, BV certificate

Specifications:

Product model

SY20FT-12CNG

Product type

20FT-12 tubes

Fluid

CNG

Design

ISO11120 ; BV certificate

Operation pressure

25 Mpa

Hydrostatic test pressure

37.5 Mpa

Working temperature

-40~+60℃

Tare weight

19775 kg

Fluid weight

2729 kg

Total weight

22504 kg

Total water volume

12.48 m3

Total fluid volume

3790 Nm3

Single cylinder size OD*L*Thickness

Φ559*5400*17.3 mm

Tube skid dimension L*W*H

6058*2438*2035 mm

Cylinder quantity

12

High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV

High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV

High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV

High Performance 12 Tubes Containe CNG Tank Trailer ISO11120 / BV
