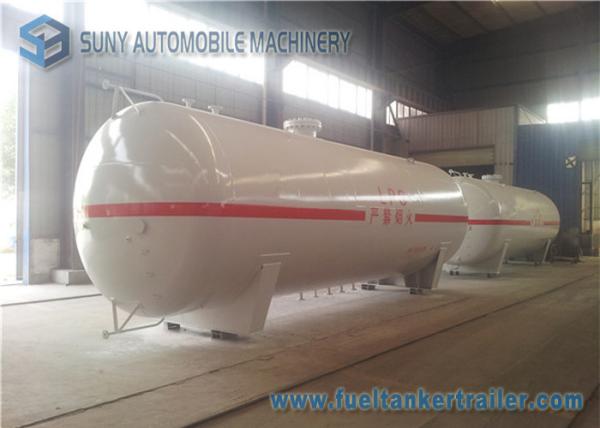

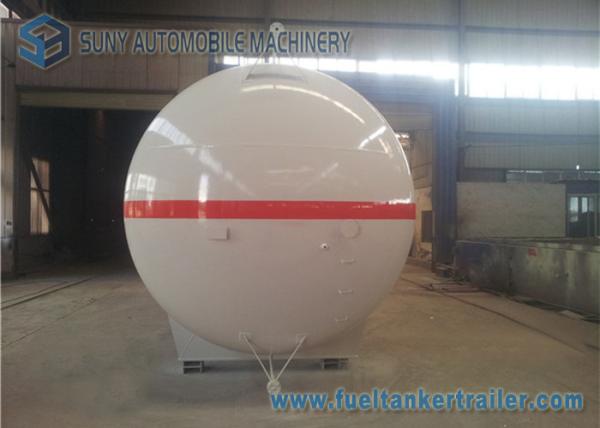

Round / Ellipse Safety LPG Tank Trailer , 50000 Liters LPG Propane Gas Storage Tank
Round / Ellipse Safety LPG Tank Trailer , 50000 Liters LPG Propane Gas Storage Tank
Round / Ellipse Safety LPG Tank Trailer , 50000 Liters LPG Propane Gas Storage Tank
Round / Ellipse Safety LPG Tank Trailer , 50000 Liters LPG Propane Gas Storage Tank
Specifications
Brand Name :
SUNY
Model Number :
SY50LPG
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD16000 ~ 19500/ unit
Supply Ability :
100 units/ quarter
Packaging Details :
nude with wax protection
Material :
Q345R, Q370R
Shape :
round, ellipse
Diameter :
2300 mm, 2400 mm, 2600 mm, 2700 mm, 2800 mm
Volume :
50 m3, 50 cbm, 50000 liters, 50000 L
Design pressure :
1.77 Mpa
Medium density :
420 ~ 590 kg / m3
Description

50 M3 LPG Tank Trailer, 50000 liters LPG Propane Gas Storage Tank, 50 CBM LPG Propane Gas Tanker

1. LPG propane gas storage tank volume: 50 m3, 50 cbm, 50000 L, 50000 liters;

2. LPG propane gas storage tank diameter: 2300 mm, 2400 mm, 2600 mm, 2700mm, 2800 mm;

3. LPG propane gas storage tank material: Q345R, Q370R;

4. optional accessories: Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.

5. Designing pressure:1.77 Mpa Designing temperature: -20 °C to 54 °C.

6. The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity, light weight and high efficiency.
7. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
8. There are high safety domestic or imported safety accessories for customers option.
9. The anti-corrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on

Competitive Advantage:

1. Factory direct sales, fast delivery
2. Lowest price comparing the same quality
3. High Quality, good performance,
4. 18 months warranty, main beam whole life time grantee!
5. ISO, CCC, SGS certificate

Specifications:

Item

Parameters

Item

Parameters

Product

50 m3 lpg storage tank

Liquid Indicator

Model

UHZ-518C14

Overall dimensions

12508 * 2324 * 2914

Version

Magnetic

Net weight ( Kg )

10190

Normal pressure

2.5 Mpa

Vessel type

III

Scope of testing

50-2300 mm

Designing pressure

1.77 Mpa

Precision

2.5

Working pressure

1.61 Mpa

Safety Valve

Model

A42F-2.5-80

Designing temperature

-19~50 ℃

Version

Built-in

Filling Medium

Propane

Normal pressure

2.5 Mpa

Corrosion margin

1.0 mm

Normal diameter

DN80

Volume

50 CBM

Opening pressure

1.68-1.76 Mpa

Heat treatment

bulk

Re-seating pressure

≥ 80% of opening pressure

Filling factor

420 kg / m3

Normal Diameter of Handling System

Feed pip

DN80

Material

Q345R

Drain pip

DN80

Hydraulic test pressure

2.22 Mpa

Admission port

DN50

Gas tight test pressure

1.77 Mpa

Sewage outfall port

DN80

Cylinder thickness

12 mm

Vent nozzle port

DN80

Head thickness

14 mm

stand

GB150-1998 < steel pressure vessels >

Service time

10 years

Safety regulation of pressure vessels

Accessory

Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.

Round / Ellipse Safety LPG Tank Trailer , 50000 Liters LPG Propane Gas Storage TankRound / Ellipse Safety LPG Tank Trailer , 50000 Liters LPG Propane Gas Storage Tank
