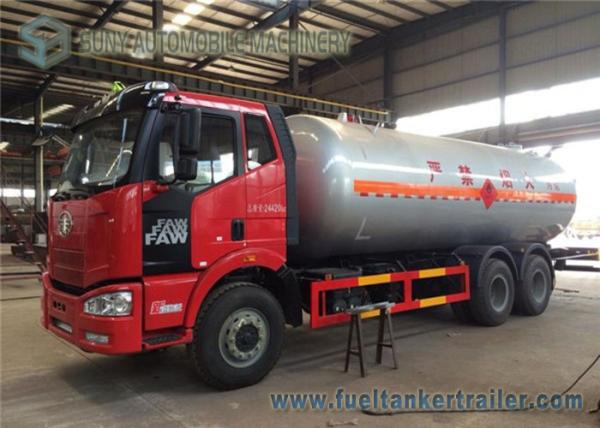

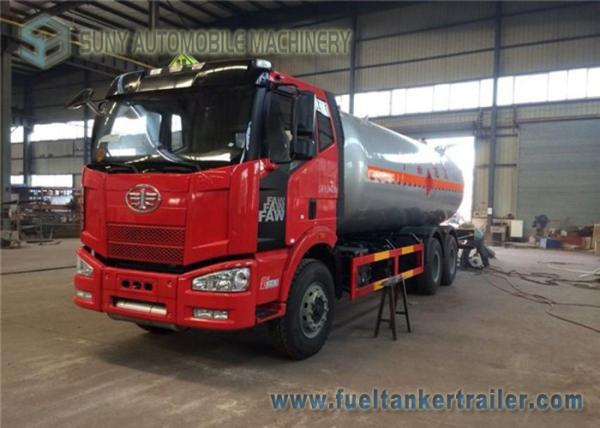

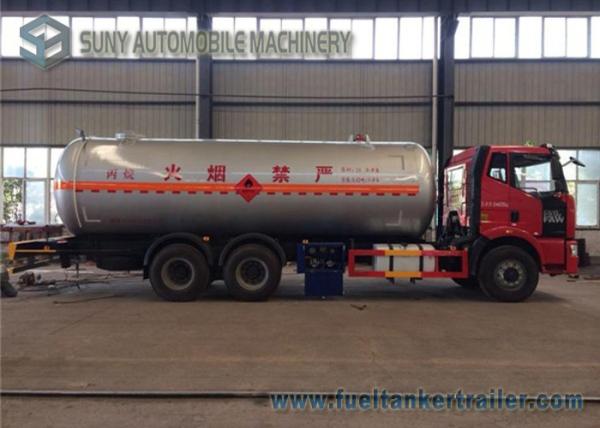

FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
Specifications
Brand Name :
SUNY
Model Number :
SY5240GYQ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: 60000-70000 usd / unit
Supply Ability :
50 units / month
Delivery Time :
35 - 45 days
Packaging Details :
nude with wax protection
LPG tank truck capacity :
24 M3, or 10 ton
Whole truck dimension :
10200 * 2500 * 3450
Truck driving type :
left hand driving, or right hand driving
Truck chassis wheelbase :
4800 + 1350 mm
Engine :
CA6DE3-22E3, 220 hp Euro 3, diesel engine
LPG tank material :
Q345R
Description

24 M3 3 Axles LPG Tank Trailer, 6 * 4 FAW 10 Ton LPG Tank Truck With Dispenser

Description:

1. lpg truck chassis: China FAW, 6 * 4, 10 tires; truck wheelbase: 4800 + 1350 mm

2. lpg truck overall size:10200 * 2500 * 3450 mm ;

3. engine: 220 hp, Euro 3, emission standard, diesel engine;

4. lpg truck capacity: 24 m3, 24 cbm, 24000 L, 24000 liters, 10T, 10000kg

5. lpg truck dispenser: optional

6. with air conditioner

Applications:

1. We manufacture tanks and vessels required for storage and transportation tanks of various liquids and gases like LPG, PROPANE, PROPYLENE, AMMONIA, LIQUID CARBON DIOXIDE, CHLORINE, HYDROGEN, NITROGEN, OXYGEN, ARGON, SULPHUR DIOXIDE, BUTADINE, ETHYLENE OXIDE AND OTHER GASES, in a wide range of various capacities for use in domestic, industrial and transportation sectors.

2. The manufacturing of these tanks requires special expertise, technology and strict quality control measures.

3. These tanks are manufactured confirming to various design standards like ASME SECT VIII DIV I & II, AD-MERKBLATTER, PD5500, IS2825 and under the stagewise inspection of various third party inspection agencies like DNV, BVIS, TUV, LLOYDS, PDIL and others.

4. We also manufacture a wide range of trucks, trailers, as well as machineries to meet different customers' demand all around the world.

Description:

Main Technical Parameter

Product Name

FAW 6*4 LPG Tank Trailer Truck

Gross Vehicle Weight ( kg )

25000

Overall Dimension ( mm )

10200 * 2500 * 3450

Curb Weight ( kg )

10420

Tanker Dimension ( L * Diameter) ( mm )

7534*2124 ( straight segment long 6380 mm )

Related Payload ( kg )

14385

Wheelbase ( mm )

4725 + 1350

Number of Axles

3

F / R Suspension ( mm )

1375 / 2750

F / R axle load ( Kg )

7000 / 18000 ( rear axles combined )

Appr / Dep Angle ( ° )

18 / 8

Max Speed ( km / h )

79

Cab Allowed Persons

3

Cab type

FAW J5M flat proof cab

Tank volume ( m3 )

25-27

Leaf Spring No.

4 / 10, 11 / 11

Chassis Technical Parameter

Chassis Model

CA1253P7K2L7T1E

Chassis Manufacturer

China FAW Group Corporation

Gear Box

6 speed forward and 2 reverse

Transmission type

Manual

Steering Type

LHD ( Power steering )

Brake System

Air brake

Front tread ( mm )

1914, 1950

Rear tread ( mm )

1847 / 1847

Drive Type

6 * 4

Tire Spec.

10.00R20, 10.00-20

Engine Technical Parameter

Engine Model

CA6DE3-22E3

Engine Producer

China FAW Group Corporation

Fuel Type

Diesel

Emission Standard

Euro 3

Displacement ( ml )

6618

Power ( KW )

162 KW / 220 hp

Superstructure Parameter

Storage medium

Propane

Unit volume filling capacity

0.42 ton / m3

Tank thickness ( mm )

6mm(optional other)

Tank material

carbon steel, optional stainless steel

Warranty

12 months, from the date of supply

Remarks

Equipped with air conditioner, drive recorder, speed limiting device

FAW 10 Ton LPG Tank Truck , 24M3 3 Axles 6x4 Truck With Dispenser
