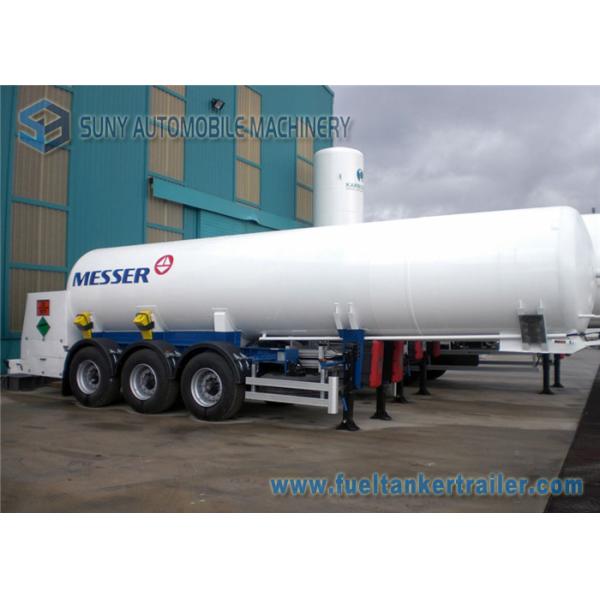

Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Q235 Carbon Steel 23.5 Ton LPG Tank Trailer 3 Axles With 12 Tires
Specifications
Brand Name :
SUNY
Model Number :
SY9390GYQ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: 385000-45000 usd/unit
Supply Ability :
50 units/month
Delivery Time :
35-45 days
Packaging Details :
nude with wax protection
Product Name :
35 M3 23.5 Ton LPG Tank Trailer
Whole truck dimension :
12700 * 2500 * 3975 mm
Truck chassis wheelbase :
6865 + 1310 + 13100 mm
LPG tank material :
Q345R, Q370R
Description

56 M3 12.7 M 3 Axles LPG Trailer, 23.5 Ton LPG Propane Gas Tanker Trailer

Description:

1. 56 M3 12.7 M 3 Axles 23.5 Ton LPG Propane Gas Tanker Trailer
2. truck wheelbase: 6865 + 1310 + 1310 mm, 12 tires;
3. propane gas tanker truck capacity: 56 m3, 56 cbm, 56000 L, about 23.5 T, 23500 kg
4. propane gas tanker truck dispenser: optional

Applications:

1. We manufacture tanks and vessels required for storage and transportation tanks of various liquids and gases like LPG, PROPANE, PROPYLENE, AMMONIA, LIQUID CARBON DIOXIDE, CHLORINE, HYDROGEN, NITROGEN, OXYGEN, ARGON, SULPHUR DIOXIDE, BUTADINE, ETHYLENE OXIDE AND OTHER GASES, in a wide range of various capacities for use in domestic, industrial and transportation sectors.
2. The manufacturing of these tanks requires special expertise, technology and strict quality control measures.
3. These tanks are manufactured confirming to various design standards like ASME SECT VIII DIV I & II, AD-MERKBLATTER, PD5500, IS2825 and under the stagewise inspection of various third party inspection agencies like DNV, BVIS, TUV, LLOYDS, PDIL and others.
4. We also manufacture a wide range of trucks, trailers, as well as machineries to meet different customers' demand all around the world.

Description:

Name

23.5 ton 3 axle LPG tank semi trailer

Model

SY9390GYQA

Overall dimension length/width/height (mm)

12700 * 2500 * 3975

tank dimension length/diameter (mm)

12340 * 2473

tank straight length (mm)

11000

Total Volume(m3)

56

Medium

Liquefied Petroleum Gas

Gross Vehicle Mass(kg)

39000

Curb weight(kg)

15480

Rated load(kg)

23520

Number of Axles

3

F/R Axle load (kg)

_ / 23000(Triaxial)

Wheel base (mm)

6865 +1310 +1310

Rear track base (mm)

1840 / 1840 / 1840

Approach/Departure Angle(°)

_ / 20

F/R Suspension (mm)

_ / 1550

Tyre type

12R22.5 12PR, 12pcs plus one spare tire

Pieces of spring

_/ 7 / 7 / 7

Tank Body Material

Q235 carbon steel

Color

Optional

Semi trailer tail clearance

540 mm

Standard configuration

one outlet, double loading and unloading, double valve box, double tool box, safe valves, temperature gauge, pressure gauge, emergency cut-off valves, 13T BPW axle, 12R22.5 12PR, one spare tire, JOST outrigger, JOST traction pin, fire bottle, anti-static ground tape, iron splash guard, ABS
