Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
Specifications
Brand Name :
SUNY
Model Number :
SY5020ZBS
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 12000 - USD 17000
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200 set per month
Delivery Time :
15 - 25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/model :
Changan 4 * 2
Refuse body capacity :
2 m3, 3 m3
Tank material :
Q235
Dimension :
3800 × 1480 × 1920 mm
Engine :
JL466Q4 Gasoline Engine, Euro 4
Drive :
4 * 2, right steering, left steering
Wheel base :
2500 mm
Description

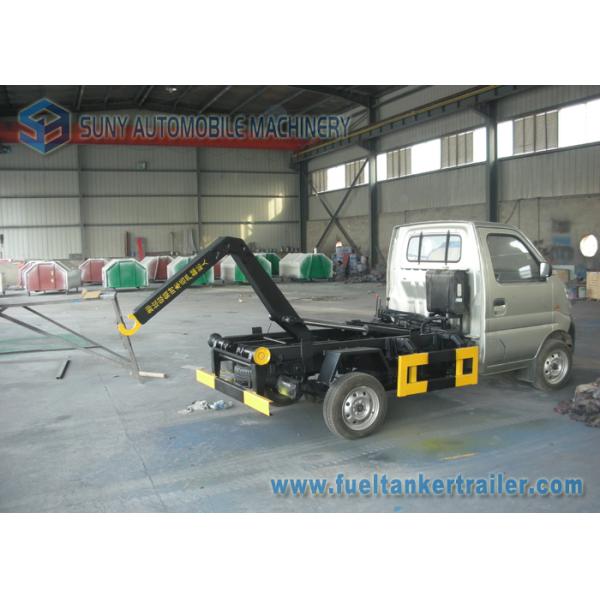

Changan Mini Garbage Truck, Euro 4 Gasoline Engine 53 HP Rubbish Collector Truck


1. 53 hp, Gasoline engine, Euro 4
2. gearbox: 5 forward, 1 reverse
3. 4*2 chassis, Wheelbase: 2500 mm

Applications:

The garbage truck is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.
If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.

Competitive Advantage:

garbage truck, trash collection convenient, highly effective, repeatedly compresses automatically, working automation, leak-proof garbage truck
1. High fuel efficiency

2. The turbocharger with wastegated design

3. Compacted yet durable and dependable engine

4. Advanced design and manufacturing

5. Excellent cold start performance

6. Excellent performance and advantage

Specifications:

Product

Changan Mini Garbage Truck, Euro 4 Gasoline Engine 53 HP Rubbish Collector Truck

Chassis type

SC1022DB4N

Cubage

2- 3 M3

Parameters

Overall dimension length / width / height ( mm )

3800 * 1480 * 1810

Total Mass ( kg )

1810

Payload ( kg )

600

Kerb Mass ( kg )

1080

Approach angle / Departure angle ( mm )

58 / 20

Front suspension / rear suspension ( mm )

480 / 820

Fuel Type

gasoline

Fuel Consumption / 100 km

6.4

Max Speed

90

Engine

Type

JL466Q4

Displacement / Power ( kw)

1012 m l/ 39 kw / 53hp

Manufacturer

Chongqing Changan Co., LTD

Type

4 stroke inline 4 cylinder piston engine

Chassis

Drive type

4 × 2

Wheelbase ( mm )

2500

Tread ( fron t/ rear )

1280 /1290

Front axle

925 kg

Rear axle

885 kg

Steering gear

Dual-armed steering wheel, recirculating ball steering

Transmission

5 forward gear,1 reverse gear, technical transmission

Clutch

Uniwafer, dry diaphragm spring clutch

Braking system

Brake fluid system, barrelChoose to fix air braking

Cab

Non-longheaded, single row

Number of spring axle ( front / rear)

- / 5

Tire Type

165/70R13LT, 165/70R1379T

Air-condition

Choose to fix

Special performance parameters

Hydraulic system pressure

16 MPa

Crane arm turn radius

2400 mm

Hydraulic system Flow capacity

Crane arm maximum pivot angle

145

Hoisting time

30s

Unloading time

50s

Changan Euro 4 Gasoline Mini Garbage Trucks Rubbish Collection Truck
