60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
Specifications
Brand Name :
SUNY
Model Number :
SY9002XXY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 12000 ~ 20000 / UNIT
Payment Terms :
T/T, L/C
Supply Ability :
1000 Unit / Month
Delivery Time :
10~20 working days
Packaging Details :
After Waxing by Container, RO-RO, Bulk Freighter
Overall Dimensions :
13000*2490*3460 mm
Trailer Material :
Q235 & Q345
Trailer Load :
50 t 60 t 70 t
Suspension :
Mechanical Suspension
Axles :
3 axles 13 t Fuwa Brand Optional BPW
Outrigger :
28 t Fuwa Optional JOST
Brake System :
WABCO Brand
Tire :
8.25R20 11.00R20 12.00R20, etc
Description

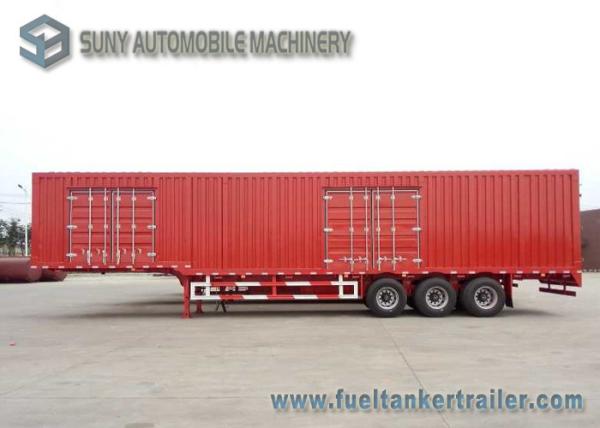

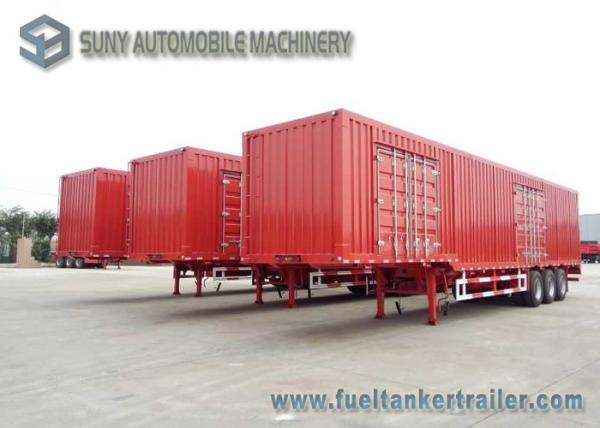

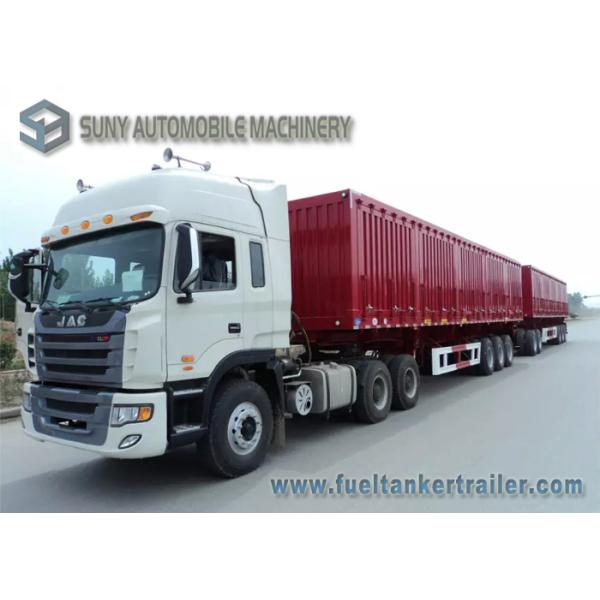

60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T

We have many type of Van semi trailer for you choose.

eg, 2 axles trailer , 3 axles trailer , 4 axles trailer ,

Box , Van , Freeze box, Van body Materials can be selected carbon steel , stainless steel , aluminum ,etc.

Load capacity : 50 T , 60 T , 70 T

Semi trailer is our company's main product. We configure Grid type semi trailer ,low bed semi trailer, container semi trailer, flat bed semi trailer, LPG tank semi trailer, fuel tank semi trailer, water tanker semi trailer, fecal suction semi trailer, sewage suction semi trailer, compactor garbage semi trailer, van semi trailer, box semi trailer, water tank semi trailer, bitumen semi trailer, bulk cement semi trailer, dump semi trailer, chemical tank semi trailer and etc. We produce tank semi trailer with plastic lining, aluminum tank, aluminum alloy tank, rotational molding, carbon steel, stainless steel, production according to the customer's requirement.

Products Technical Specification

Product Name

3 axles Van Semi Trailer

Vehicle Model

SY9400XXY

Overall dimensions

13000 * 2550 * 3990 mm

GVW (kg)

40000

Mass in working order (kg)

8500

Fact loading capacity (kg)

standard type 40000 - 55000

extra-heavy type 50000 - 80000

Van dimensions

12750 * 2400 * 2470 mm

Wheel base(mm)

6830+1310+1310

F/R track base(mm)

1830/1830/1830

F/R axle-load

-/23900 (3 axle)

Approach/Departure angle(°)

-/14

Axle

13 T and 16 T FUWA

Outrigger

28 T Single-action

Pin traction

90 #

Braking system

Brake made in China

Standard Equipment

(standard type)

13 T FUWA axle, 11.00R 20 tire 14/14+6 square beam ,14#channel steel side

Frame ,4S/2M chamber , ABS made in China ,3 mm flat ,13*90-10pcs springs ,

double spare tire carrier , and other equipment . 7 doors , Open top.

Standard Equipment

(extra-heavy type)

16 T FUWA axle, 12.00R 20 tire 16/18+10 welded beam ,

channel beam , 4S/2M

Chamber , ABS made in China ,4 mm flat,16*90-10pcs springs ,

and other Equipment..7 doors , Open top.

Optional Configuration (√ : Standard Equipment ○: Optional ×: Not )

Others

Painting , Marking , Side Guard ,Tool box .

According to the requirement of the buyer

2 axles , BPW Brand, Tire , van thickness ,etc

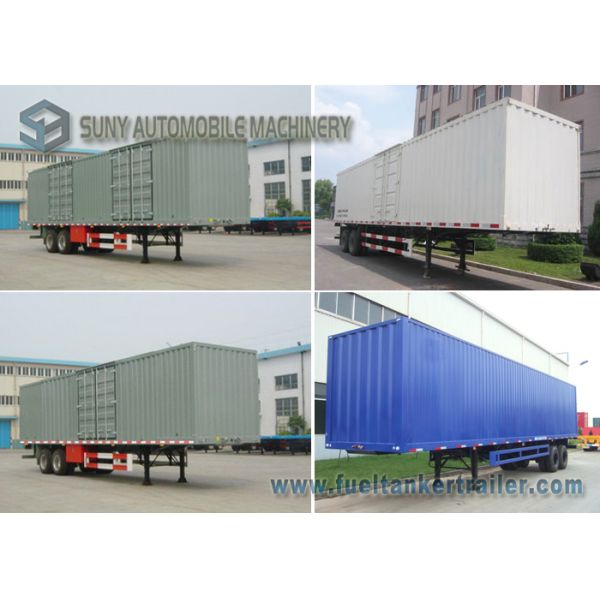

2Axle Van Semi Trailer (30T 35T 40T 45T)

60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T

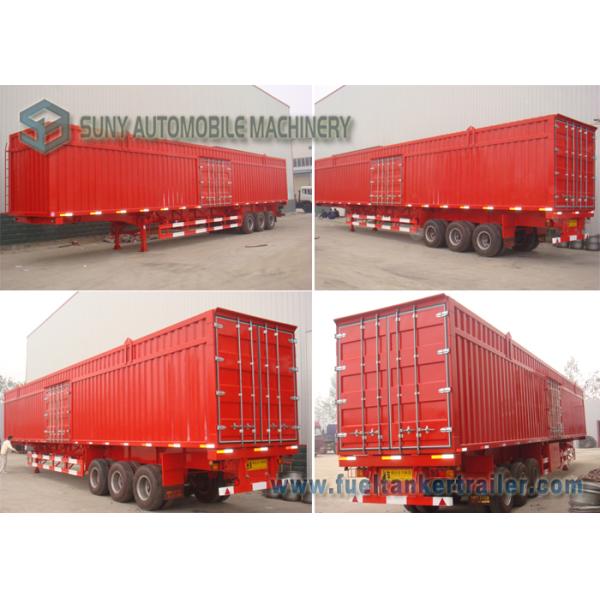

3Axles Van Semi Trailer(50T 60T 70T )

60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T

Full Van Semi Trailer

60 Cubic Heavy Duty Van Semi Trailer 3 Axles Box Semi Trailer 50T
