Specifications
Brand Name :
SUNY
Model Number :
SYRW40FAW
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 80, 000 ~ 200, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
30 ~ 40 working days after we get the deposit
Packaging Details :
Nude with waxing. Whole truck by RO - RO ship, Bulk cargo ship, SKD, CKD and so on. Upper body by Container.
Boom capacity :
25 ton
Under - lift capacity :
25 ton
Winch :
2 units, 20 ton per unit
Manual control :
Manual control on both left side and right side
Front leg type :
A type
Rear leg type :
L type
Angle of swing :
360 degree continue swing
Description

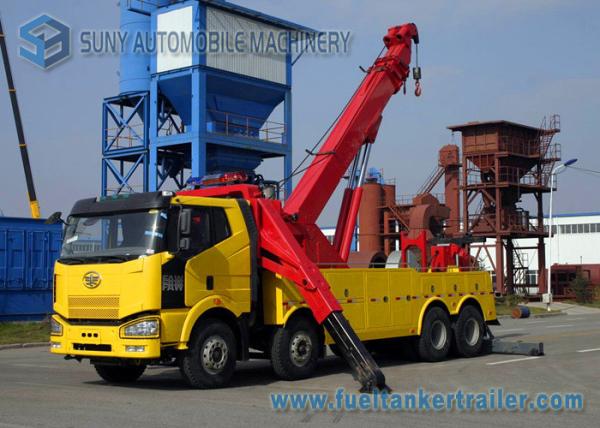

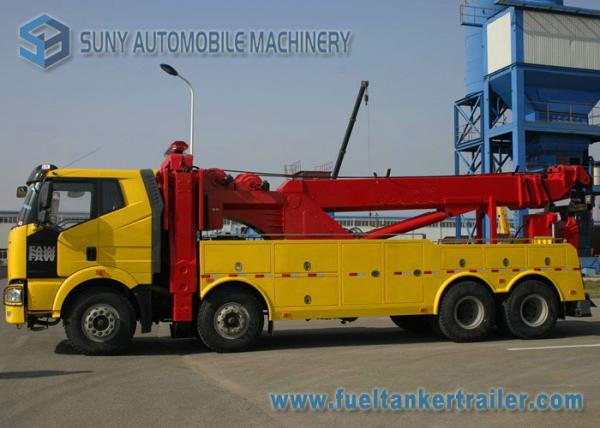

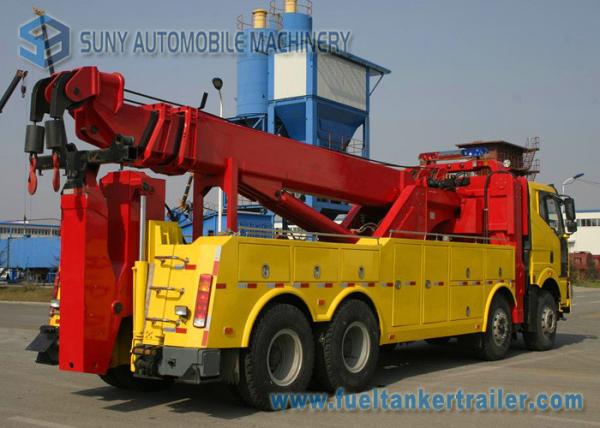

40DZ FAW 40 Ton Towing Rate 8X4 Heavy Duty Rotator Tow Truck Wrecker

Description:

1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;

2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;

3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.

Applications:

Our high quality and competitive price 40 ton SYRW40FA rotator wrecker with wireless remote control is mainly for towing heavy duty cargo truck and super heavy duty trailer.

Competitive Advantage:

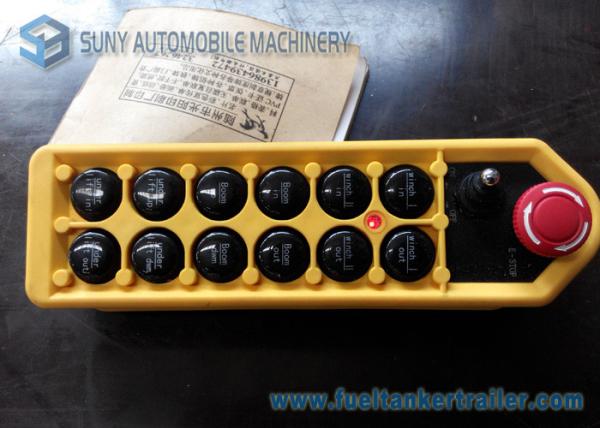

1) Wireless remote control boom, winch and under - lift;

2) 40 ton boom capacity with 360 degree continue swing;

3) Mainly made by alloy steel, high quality and competitive price.

Specifications:

40DZ FAW 40 Ton Towing Rate 8X4 Heavy Duty Rotator Tow Truck Wrecker

A. Boom

Model

SY40DZ

Stage

3 stages

Rating of the boom ( lb / kg )

Retracted at 30 °

Extended at 30 °

55000 / 25000

18700 / 8500

Max. Angle ( ° )

60

Rotator Angle ( ° )

360

Hook height ( inch / mm )

487 ” / 12370

The length to the tail of truck fully extended and min . angle ( inch / mm )

251 ” / 6376

B. Underlift

Model

SY25TS

Capacity fully extended ( lb / kg )

28600 / 13000

Capacity fully retracted ( lb / kg )

55000 / 25000

The length to the tail of the truck fully retracted ( inch / mm )

67 ” / 1702

The length to the tail of the truck fully extended ( inch / mm )

139 ” / 3531

Underlift tilt ( ° )

- 7 ~ 10

C. Winch

Model

SY005

Capacity of winch ( lb / kg )

44000 / 20000

Type of winch

Planetary

Diameter and length of steel cable

9 / 10 ” x 164 ’ / 22 x 50000

Steel cable impaction

Air Impaction

D. Chassis Recommendations

GVW ( lb / kg )

88000 / 40000

C . A ( inch / mm )

260 ” / 6605 – 275 ” / 6985

STANDARD FEATURES
  1. Boom
  2. Winch
  3. Steel Body
  4. Underlift
  5. Dual Front and Rear Outrigger
  6. Light Pylon
  7. Dual Joystick and Wireless Control
  8. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting )
  9. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon )
  10. Tools ( Include 5 pair of Forks, a pair of “ U ” Underlift Attachment and a pair of Safety Chain )

Notice: Equipment can be modified according to the customer ’ s requirement.
