INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
INT 16 Dongfeng 16 Ton Middle Duty Wrecker flatbed Wrecker Truck 4X2
Specifications
Brand Name :
SUNY
Model Number :
SYTW16DF
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 25, 000 ~ 55, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
15 ~ 25 working days after we get the deposit
Packaging Details :
Nude with waxing. Whole truck by RO - RO ship, Bulk cargo ship, SKD, CKD and so on. Upper body by Container.
Boom capacity :
16 ton
Under - lift capacity :
12 ton
Winch :
2 units, 8 ton per unit.
Manual control :
Manual control on both left side and right side
Electrical System :
Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon
Tools :
Include a pair of Fork, a pair of “ L ” Bar and a pair of Strap
Towing rating :
24 ton
Description

INT 16 Dongfeng 16 Ton Boom Capacity 4X2 Middle Duty Wrecker Tow Truck

Description:

1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;

2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;

3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.

Applications:

Our high quality and competitive price 16 ton SYTW16DF wrecker is mainly for towing middle duty cargo truck and super middle duty trailer.

Competitive Advantage:

1) Wireless remote control boom, winch and under - lift is optional;

2) 24 ton towing rating;

3) Mainly made by alloy steel, high quality and competitive price.

Specifications:

INT 16 Dongfeng 16 Ton Boom Capacity 4X2 Middle Duty Wrecker Tow Truck

A. Boom

Model

SY12T16D

Stage

2 stages

Rating of the boom ( lb / kg )

Retracted at 26 °

Extended at 26 °

35200 / 16000

18700 / 8500

Max. Angle ( ° )

26

Hook height ( inch / mm )

204 ” / 5170

The length to the tail of truck fully extended and min . angle ( inch / mm )

139 ” / 3530

B. Underlift

Model

SY12T16D - T

Capacity fully extended ( lb / kg )

19800 / 9000

Capacity fully retracted ( lb / kg )

26400 / 12000

The length to the tail of the truck fully retracted ( inch / mm )

70 ” / 1770

The length to the tail of the truck fully extended ( inch / mm )

120 ” / 3055

Underlift tilt ( ° )

- 6 ~ 5

C. Winch

Model

SY002

Capacity of winch ( lb / kg )

17600 / 8000

Type of winch

Worm gear

Diameter and length of steel cable

7 / 10 ” x 98 ’ / 18 x 30000

Steel cable impaction

Air Impaction

D. Chassis Recommendations

GVW ( lb / kg )

48400 / 22000

C.A ( inch / mm )

200 ” / 5080 – 215 ” / 5461

STANDARD FEATURES
  1. Boom
  2. Winch
  3. Steel Body
  4. Underlift
  5. Dual Rear Outrigger

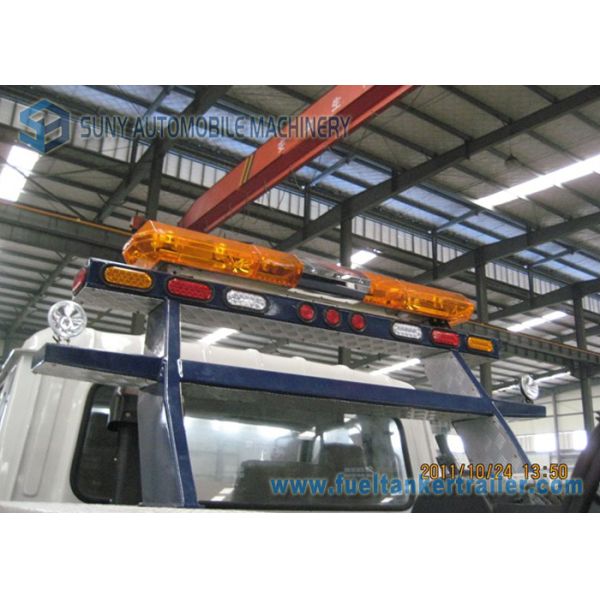

  6. Light Pylon
  7. Dual Joystick Control
  8. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting )
  9. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon )
  10. Tools ( Include 5 pair of Forks, a pair of “ U ” Underlift Attachment and a pair of Safety Chain )

Notice: Equipment can be modified according to the customer ’ s requirement.
