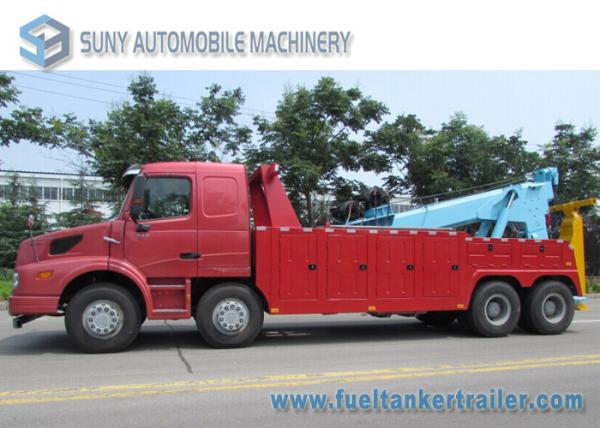

Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Long Cab INT 60 HOWO 60 Ton Boom Tow Truck 8X4 Truck Wrecker
Specifications
Brand Name :
SUNY
Model Number :
SYTW60HW
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 100, 000 ~ 300, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
25 ~ 45 working days after we get the deposit
Packaging Details :
Nude with waxing. Whole truck by RO - RO ship, Bulk cargo ship, SKD, CKD and so on. Upper body by Container.
Boom capacity :
60 ton
Under - lift capacity :
25 ton
Winch :
2 units, 25 ton per unit
Manual control :
Manual control on both left side and right side
Electrical System :
Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon
Tools :
Include a pair of Fork, a pair of “ L ” Bar and a pair of Strap
Towing rating :
60 ton
Description

Long Cab INT 60 HOWO 60 Ton Boom Capacity 8X4 Heavy Duty Wrecker Tow Truck

Description:

1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;

2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;

3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.

Applications:

Our high quality and competitive price 60 ton SYTW60HW wrecker is mainly for towing heavy duty cargo truck and super heavy duty trailer.

Competitive Advantage:

1) Wireless remote control boom, winch and under - lift is optional;

2) 60 ton towing rating;

3) Mainly made by alloy steel, high quality and competitive price.

Specifications:

Long Cab INT 60 HOWO 60 Ton Boom Capacity 8X4 Heavy Duty Wrecker Tow Truck

A. Boom

Model

INT 60

Stage

3 stages

Rating of the boom ( lb / kg )

Retracted at 30 °

Extended at 30 °

132200 / 60000

33000 / 15000

Max. Angle ( ° )

40

Hook height ( inch / mm )

351 ” / 8925

The length to the tail of truck fully extended and min . angle ( inch / mm )

252 ” / 6411

B. Underlift

Model

INT 60 - T

Capacity fully extended ( lb / kg )

18000 / 8100

Capacity fully retracted ( lb / kg )

55000 / 25000

The length to the tail of the truck fully retracted ( inch / mm )

58 ” / 1484

The length to the tail of the truck fully extended ( inch / mm )

129 ” / 3285

Underlift tilt ( ° )

- 6

C. Winch

Model

SY002

Capacity of winch ( lb / kg )

55000 / 25000

Type of winch

Planetary

Diameter and length of steel cable ( inch / mm )

7 / 8 ” / 22 x 200 ” / 60000

Steel cable impaction

Air Impaction

D. Chassis Recommendations

GVW ( lb / kg )

68200 / 31000

Clear C . A ( inch / mm )

186 ” / 4724

STANDARD FEATURES
  1. Boom
  2. Winch
  3. Steel Body
  4. Underlift
  5. Dual Rear Outrigger
  6. Light Pylon
  7. Dual Joystick Control
  8. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting )
  9. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon )

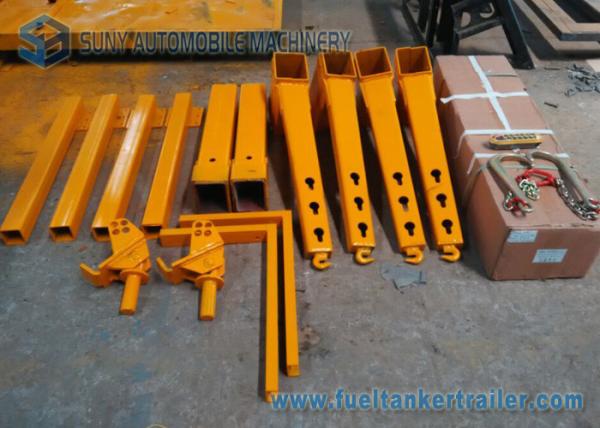

  10. Tools ( Include 5 pair of Forks, a pair of “ U ” Underlift Attachment and a pair of Safety Chain )

Notice: Equipment can be modified according to the customer ’ s requirement.
