Specifications
Brand Name :
SUNY
Model Number :
SYCMT8DF
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 20, 000 ~ 30, 000 per Unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per year
Delivery Time :
10 ~ 15 working days
Packaging Details :
Nude with waxing. Whole truck by ro - ro ship, bulk ship and flat rack. Upper body by 40HQ container.
Color :
White, Optional base on customers ' requirements
Engine :
Cummins 280 hp
Reducer :
1 : 45 Gear Ratio, 30000 N . m Torque
Hydraulic Pump :
63 L / Min Flow Rate, 20 Mpa Rated Pressure
Hydraulic Motor :
60 L / Min Flow Rate, 20 Mpa Rated Pressure
Water Tank Volume :
350 Litres
Residual Rate :
< 1 %
Filling Rate :
66 %
Description

Dongfeng 153 White 10 Wheeler 8 M3 Beton Mixer Truck With 280 Hp Cummins Engine

Description :

1 ) 4 X 2 concrete mixer truck, its mixing volume can be from 2 cubic meter to 7 cubic meter. Its standard configuration is Keyi reducer, Yuci hydraulic pump, Dali hydraulic motor and Kaipeng radiator. Imported reducer, hydraulic pump and hydraulic motor are optional.
2 ) 6 X 4 concrete mixer truck, its mixing volume can be from 8 cubic meter to 14 cubic meter. Its standard configuration is ZF reducer, Rexroth hydraulic pump and hydraulic motor, Kaipeng radiator. Other imported brand reducer, hydraulic pump and hydraulic motor are optional.
3 ) 8 X 4 concrete mixer truck, its mixing volume can be from 14 cubic meter to 18 cubic meter. Its standard configuration is PMP reducer, hydraulic pump and hydraulic motor, Kaipeng radiator.

Applications :

The mixer truck is for mixing and transporting concrete, beton, cement. Our mixer trucks are mainly made by alloy steel, with high quality and competitive price.

Competitive Advantage :

1 ) For producing mixing tank and mixing blade, our factory use B520JJ alloy steel as material, other factories use Q235 carbon steel. B520JJ alloy steel is 1 ~ 2 times stronger than Q235 carbon steel. Our mixing tank ’ s life can be 50 ~ 80 thousand cubic meters, our mixing blade ’ s life can be 30 ~ 40 thousand cubic meters.
2 ) Mixing tank is equipped with sectional mold tooling which ensures the tank round and coaxial. Automatic welding ensures the weld seam smooth, beautiful and stronger. Other factories don ’ t use sectional mold tooling and automatic welding.
3 ) 3D mixing technology ensures uniform mixing, input rate ≥ 8 m3 / min, output rate ≥ 5 m3 / min, residual rate ≤ 0.45 %, Slump 50 mm ~ 220 mm. We weld special wear rib on the edge of mixing blade which makes the mixing blade ’ s life increasing more than 12 % . Other factories don ’ t have 3D mixing technology and special wear rib.
4 ) Reducer, hydraulic pump and motor are optional base on customers ’ requirements.

Specifications:

Dongfeng 153 White 10 Wheeler 8 M3 Beton Mixer Truck With 280 Hp Cummins Engine

Vehicle Description

Overall dimensions ( mm )

8100 x 2500 x 3800

Agitator Capacity ( m3 )

8

GVW ( kg )

25500

Rated contained mass ( kg )

25000

Front Passengers In Cab

3

Max speed ( Km / h )

78

Agitator tank thickness ( mm )

5

Vane thickness ( mm )

6

Gearbox

9JS119A Fast ( 9F, 1R )

Air conditioner

Yes

Exhaust brake

Yes

Back camera

Yes

ABS

Yes

Power takeoff

full power PTO

Slump ( mm )

140 - 220

Bank angle ( ° )

15

Input rate ( m3 / min )

≥ 1.5

Output rate ( m3 / min )

≥ 1

Filling rate

66 %

Residual rate

< 1 %

Chassis Description

Chassis Model

EQ5254GJB1

Chassis type

10 wheeler

Approach / Departure angle ( ° )

28 / 14

F/R overhang ( mm )

1245 / 2070

Wheel base ( mm )

3200 + 1350

Leaf spring quantity

8 / 10

Tire quantity

10 + 1

Tire specification

11R22 . 5

F / R track base ( mm )

1967 / 1860

Type of fuel

Diesel

Engine Description

Cylinder quantity

6

Displacement ( ml )

8300

Power ( hp )

280

Rated speed ( RPM )

2200

Torque ( N . m )

1125

Torque speed ( r / min )

1400

Min . fuel consumption at full load

≤ 200 g / kW . h

Engine Manufacturer

Cummins Engine Co . , Ltd

Reducer Description

Reducer brand

Italy Tech PMP

Hydraulic Pump Description

Hydraulic pump brand

Italy Tech PMP

Hydraulic Motor Description

Hydraulic motor brand

Italy Tech PMP

Water Supply System Description

Water supply type

Air pressure

Working pressure ( MPa )

0 . 25 ~ 0 . 3

Water tank volume ( L )

300

Others

Radiator

Chinese brand 18 L with Filter element, oil pressure gauge, electronic automatic induction cooling device, when reach 65 ℃ the radiator autocratically cooling.

Water tank content gauge

Crystal material, corrosion resistance and long service life.

Lamp protection

Front lamp protective grill.

Supporting roller

imported from Japan, fully guarantee the reliability and stability of the mixer tank operation. Fixed by bolts and nuts, after - sale replace and repair with low costs.

Mixing Blade

Use high strength wear - resistant alloy steel as material, it is 1 ~ 2 times stronger than normal carbon steel. Mixing blade ’ s life can be 30 ~ 40 thousand cubic meters. Welding special wear rib on the edge of mixing blade which makes the mixing blade ’ s life increasing more than 12 % .

Mixing Tank

Use high strength wear - resistant alloy steel as material, it is 1 ~ 2 times stronger than normal carbon steel. Mixing tank ’ s life can be 50 ~ 80 thousand cubic meters. Mixing tank is equipped with sectional mold tooling which ensures the tank round and coaxial. Automatic welding ensures the weld seam smooth, beautiful and stronger.

3D mixing technology

3D mixing technology ensures uniform mixing, higher speed input rate and output rate, lower residual rate.

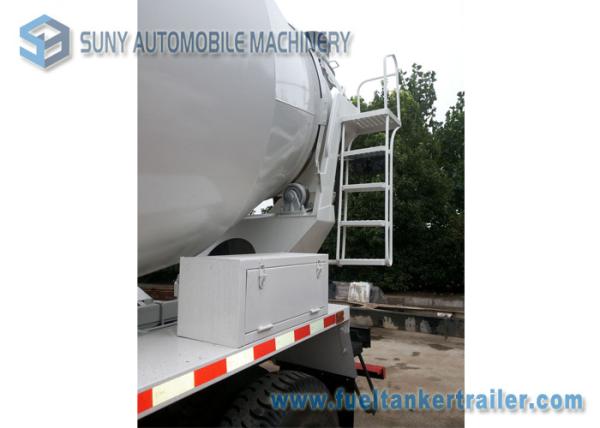

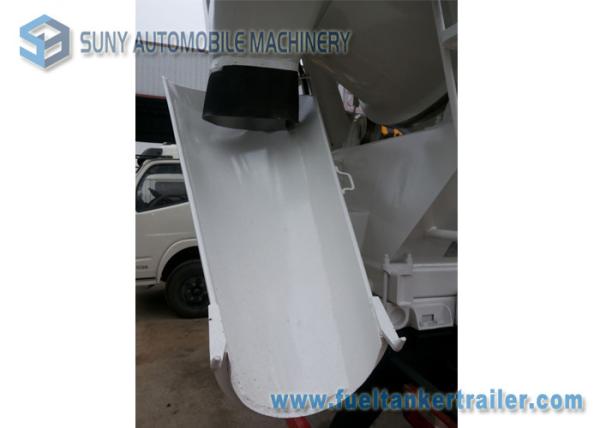

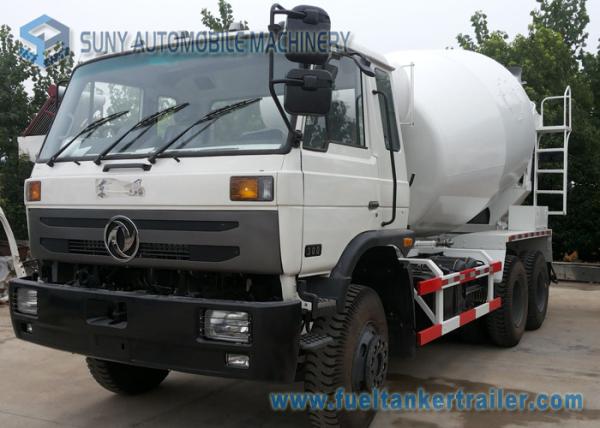

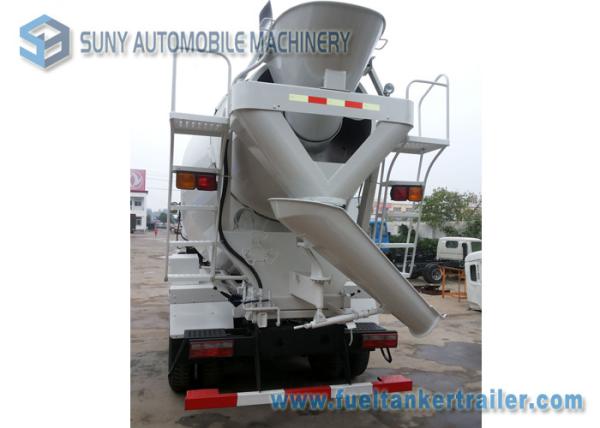

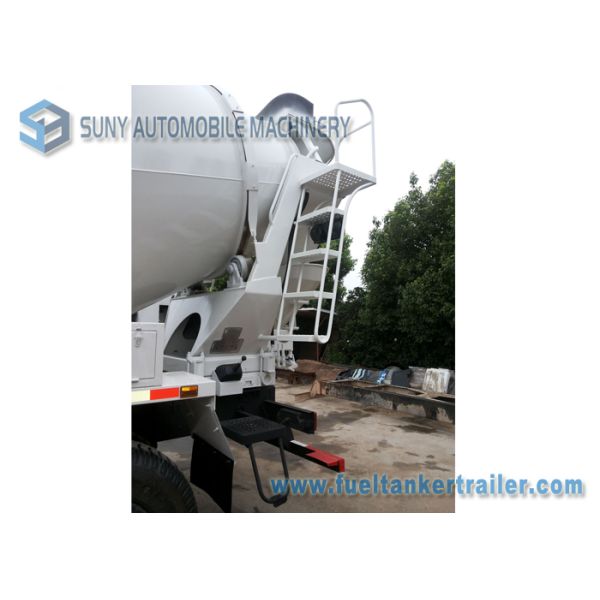

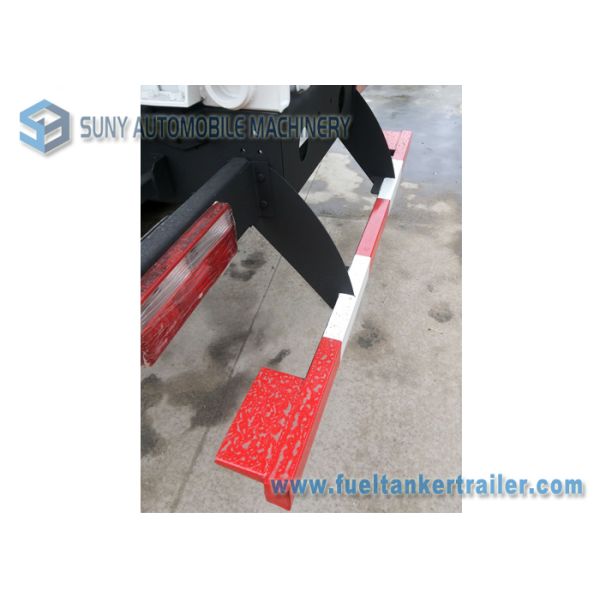

More Pictures:

Dongfeng 153 White 10 Wheeler 8 M3 Beton Mixer Truck With 280 Hp Cummins Engine
Dongfeng 153 White 10 Wheeler 8 M3 Beton Mixer Truck With 280 Hp Cummins Engine
