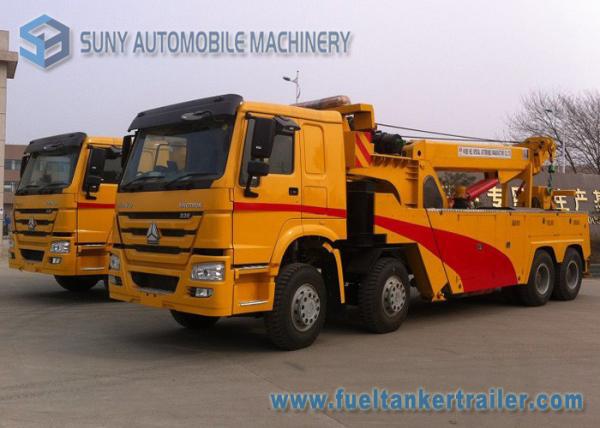

8 X 4 HOWO Tow Truck Heavy Duty 50 Ton Rotator Wrecker Truck
Product Description:
The wrecker truck technology and production has been great development in recent years. First of all,a series of varieties and specifications of more diversified structure; followed by the exclusive use of the chassis, chassis second-class diversification, to clear up obstacles in the path of the largest car models 4 bridge; the third is the structure of diverse functions,with lifts, lifting, towing, traction, back-dragging, cleaning, maintenance, etc; and the fourth is the ability to work even greater ability to drag up to give 25T, capacity 18T, lifting capacity 40T; the five is more advanced mode of operation, superior and comfortable working environment.
1.Product Paramenter:
Products Technical Specification |
|
Type |
8*4 Wrecker Truck |
Brand |
HOWO |
Emission Standard |
Euro 2 |
Cab |
HW76, Half row,with sleeper, Optional A/C |
Vehicle Description |
|
Overall dimensions (mm) |
10925 * 2496 * 3125 |
G.V.W (kg) |
31000 |
Curb weight(vehicle) (kg) |
21870 |
Whole vehicle main performance |
|
Max speed (Km / h) |
102 |
Engine |
|
Engine model |
WD615.69 |
Maximum power (kw) |
247kw / 336hp |
Displacement (lit) |
9726 |
Chassis Description |
|
Chassis model |
ZZ1317N4667W |
Wheel base (mm) |
1800 + 4600 + 1350 |
Gear Box |
HW19710 |
F/R Axle |
HF7 / ST16 |
F/R track base (mm) |
2022 / 1830 |
F/R overhang (mm) |
1500 / 1675 |
Approach/Departure angle (°) |
16 / 18 |
Spring plate |
4 / 4 / 12 |
Type of fuel |
Diesel |
Brake system |
Air braking |
Operation control system |
Power Steering |
Electric system |
24V |
Tires & Quantity |
295 / 80R22.5 & 12+1 |
Lifting System |
|
Rated Lifting Weight (kg) |
13675 |
Max. Lifting weight of original place (kg) |
18000 |
Max. Lifting weight of full extension boom (kg) |
8000 |
Rated towing weight (kg) |
44000 |
Max. Designed towing weight (kg) |
60000 |
Effective length of boom (mm) |
3350 |
Extension traveling of boom (mm) |
1700 |
Folding angle of boom (°) |
90 |
Under Lift Structure |
|
Max. Rated hanging weight (kg) |
25000 |
The height from hook to the ground (mm) |
13430 |
Max. Extension traveling of lifting boom (mm) |
6000 |
Rotation angle (°) |
360 |
Numbers of winch (pcs) |
2 |
Rated pulling power of winch (kg) |
2 × 15000 |
Dia. Of steel cable(mm) |
22.4 |
Length of steel cable (m) |
40 |
Min. Speed of steel cable (m/min) |
4 |
Rotation angle (°) |
65 |
Truck is nude packing, shipping in container, in bulk ,in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients’ requirement for clients!
3. Company Information:
Hubei Suny Automobile And Machinery Co., Ltd is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this heavy duty towing wrecker truck. It's in an excellent condition and also with good quality and competitive price. Further information,pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
