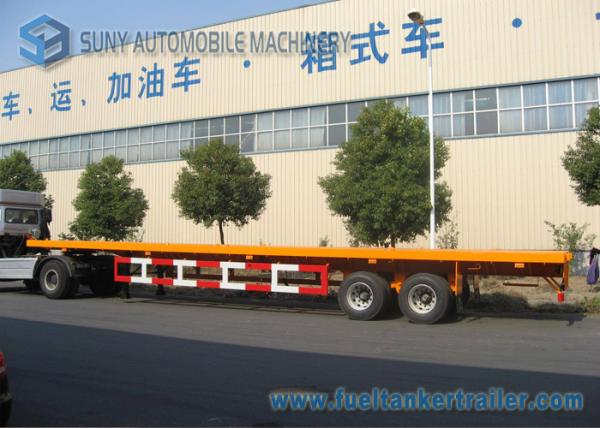

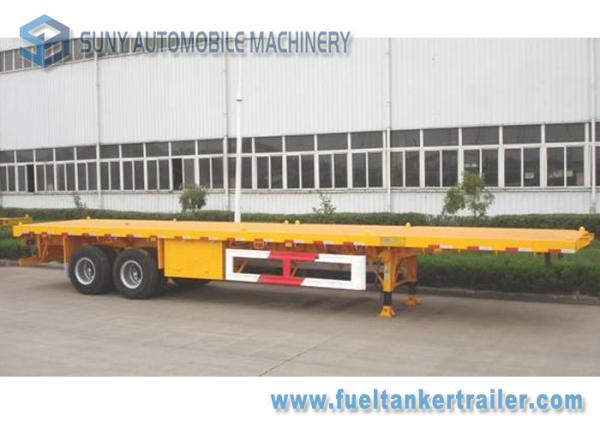

Container Transport 40FT Flat Bed Trailer 2 Axle Trailer ISO
Container Transport 40FT Flat Bed Trailer 2 Axle Trailer ISO
Container Transport 40FT Flat Bed Trailer 2 Axle Trailer ISO
Container Transport 40FT Flat Bed Trailer 2 Axle Trailer ISO
Specifications
Brand Name :
SUNY
Model Number :
SY9204PB
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 15,000 ~ 20,000 FOB
Payment Terms :
T/T, L/C
Supply Ability :
1000 units / per year
Delivery Time :
10 ~ 15 working days
Packaging Details :
After Waxing by Container, RO-RO, Bulk Freighter
Trailer Material :
Q235 & Q345
Overall Dimensions :
13000*2500*1500 mm
Trailer Load :
40 tons
Axles :
2 axles 13 t Fuwa
Suspension :
Mechanical Suspension
Brake System :
WABCO Brand
Outrigger :
28 t Fuwa Optional Jost
Tire :
11.00R22.5 * 8pcs
Description

2 Axle Flatbed Semi Trailer 40FT ISO Container Transport Flat Bed Trailer

Description:

Semi trailer is our company's main product. We configure Grid type semi trailer ,low bed semi trailer, container semi trailer, flat bed semi trailer, LPG tank semi trailer, fuel tank semi trailer, water tanker semi trailer, fecal suction semi trailer, sewage suction semi trailer, compactor garbage semi trailer, van semi trailer, box semi trailer, water tank semi trailer, bitumen semi trailer, bulk cement semi trailer, dump semi trailer, chemical tank semi trailer and etc. We produce tank semi trailer with plastic lining, aluminum tank, aluminum alloy tank, rotational molding, carbon steel, stainless steel, production according to the customer's requirement.

Specification:

ISO 20FT / 40FT / 45FT Transportation Container Flatbed Semi Trailer

(flatbed trailer material: carbon steel)

(flatbed trailer opting 20FT, 30FT, 40FT, or with lift cylinder unloading )

(flatbed trailer axle opting: 1, 2, 3, 4 axle & lift axle semi trailer / full trailer )

Flatbed Container Semi Trailer Specifications

(SY9204PB 2 axle flatbed container semi trailer for 2 sets 20ft or 1 set 40ft container)

Overall dimensions (L*W*H)

13000 * 2500 * 1500 mm

(3525 mm height with hydraulic tipping cylinder)

Design Loading

40000 kg =450 tons ( for 2 sets 20ft or 1 sets 40ft container )

GVW

Approx 47200 kg

Mass in working order

Approx 7200 kg

Axle specification

13 T × 2 pcs ( FUWA axle ) optional: FUWA 15 T, BPW 12 T

Axle load

-/ 18000 kg (2 axles)

Wheel base

8200 + 1310 mm

Front / Rear track base

- / 1840 / 1840 mm

Suspension system

Mechanical suspension, opting air suspension.

Front / Rear suspension

- / 2095 mm

Approach / Departure angle

- / 15 °

Tire specification

11.00R22.5 × 8 pcs (vacuum tires) opting single tire type

Spring few films

13 × 90-10 (optional: -/8/8, -/10/10)

King pin

50 # China brand kingpin, opting 90 # / JOST.

Landing leg

28 ton load landing leg, optional JOST.

Braking system

Optional: China brand 4S/2M ABS / WABCO ABS

Twist Lock

8 No. Of ISO twist lock for 2 sets 20ft / 1 set 40ft container

Accessories

Mudguards

PVC Mudguards

Side protection

Nil.

Fire extinguishers carriers

2 pcs

Spare tire carrier

1 pc

Container locker

8 sets

Tool box

1 tool box with our factory's standard free tools
