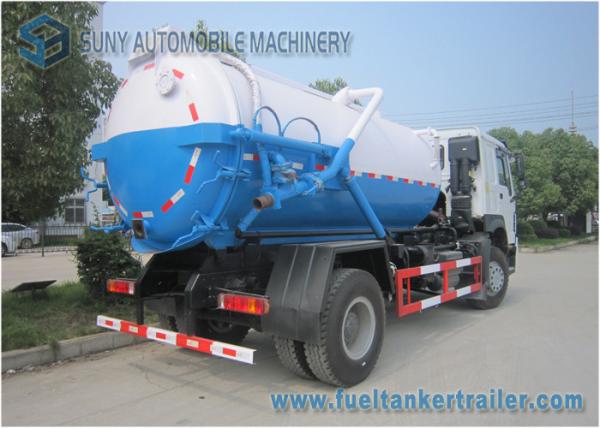

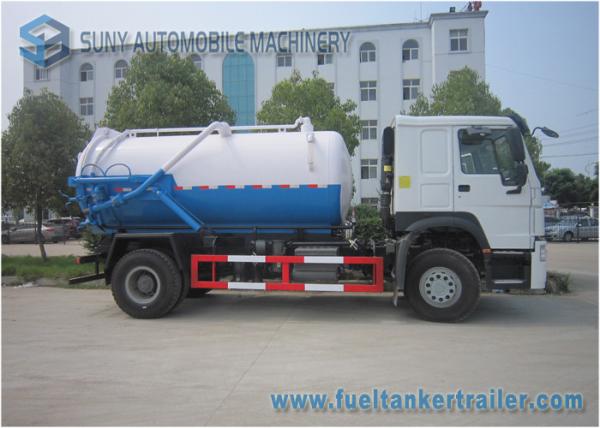

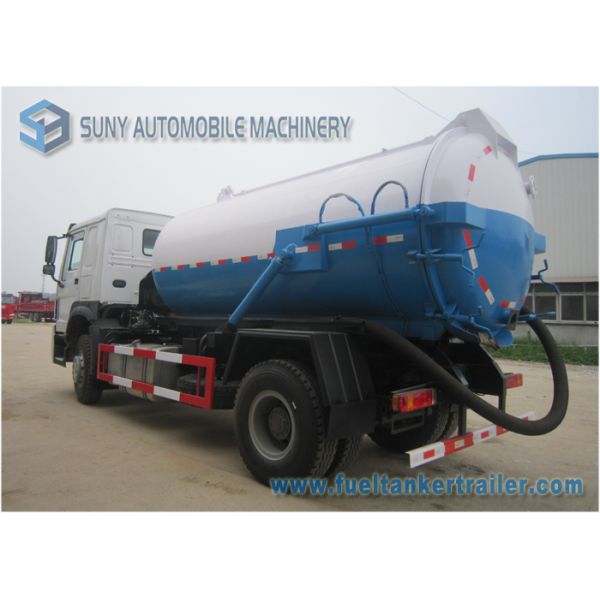

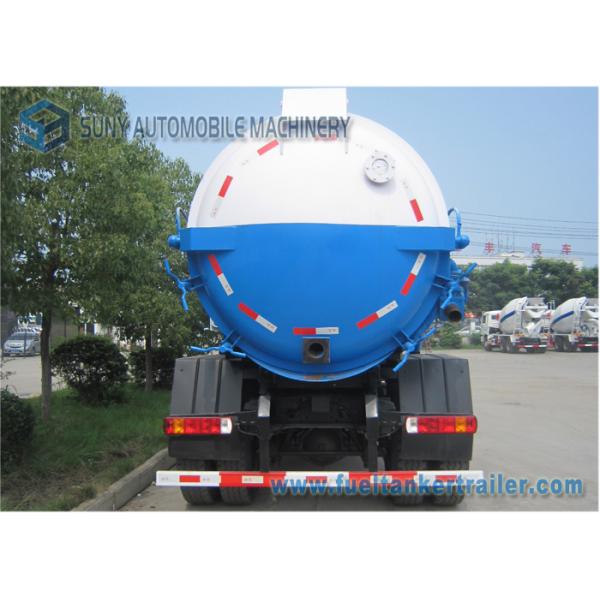

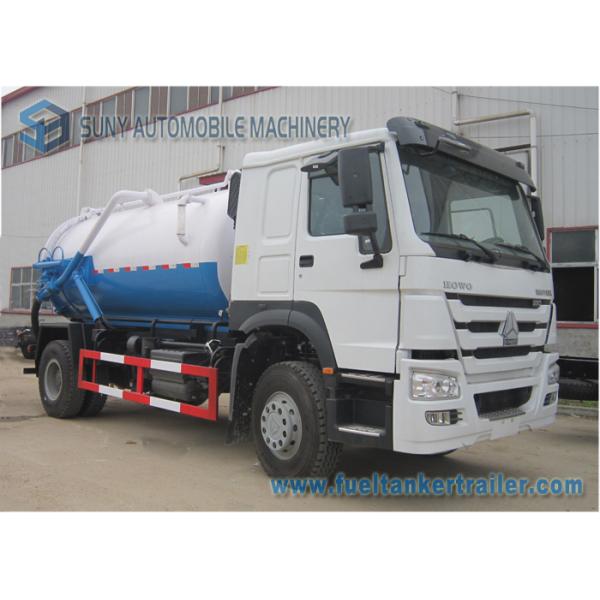

Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Large 12000L Q235 Vacuum Tank Truck , 6 Tyre Sinotruk HOWO Truck
Specifications
Brand Name :
SUNY
Model Number :
SY5160GXW4ZZ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD23000-25000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk,ro-ro,container
Tank capacity :
12000 L
Tank material :
Q235
Tank shape :
Cylinder-shaped
Whole tank dimension :
4500*1800 mm
Whole truck dimension :
8300*2490*3400 mm
F/R Axle load :
6000/10000kg
Wheel base :
4500 mm
Engine Power :
220 hp
Description

12000L Sinotruk HOWO 220 hp 4x2 Suction Sewage Vacuum Tank Truck

Description:

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.

Applications:

Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.

Competitive Advantage:

1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min

2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

4. The diesel engine ( air compressor unit ), providing compressed air.

Specifications:

Truck chassis specification

Item

unit

parameter

Chassis model

ZZ1164K4516D1

Overall dimensions

mm

8300x2490x3400

GVW

kg

Appro × 16000

Mass in working order

Appro × 6805

Wheel base

mm

4500

Exhaust / hp

ml / hp

6494 / 220

Max speed

km / h

95

Tire specification

10.00 - 20

Engine type

YC6J220-46

Traction system

4 × 2

Number of Tyres

6

Number of axles

2

Electric system

24 V

Operation control system

Electrically hydraulic control

Allowable passengers in cab

3

F / R Axle load ( kg )

6000 / 10000

Engine

The truck, diesel engine, water cooled, direct injection, 220 horse power

Special function

Specification

Tank Capacity ( L )

12000

Tank Dimension ( mm )

4500 x Φ1800

Equipped with high-power vacuum suction sewage pump.

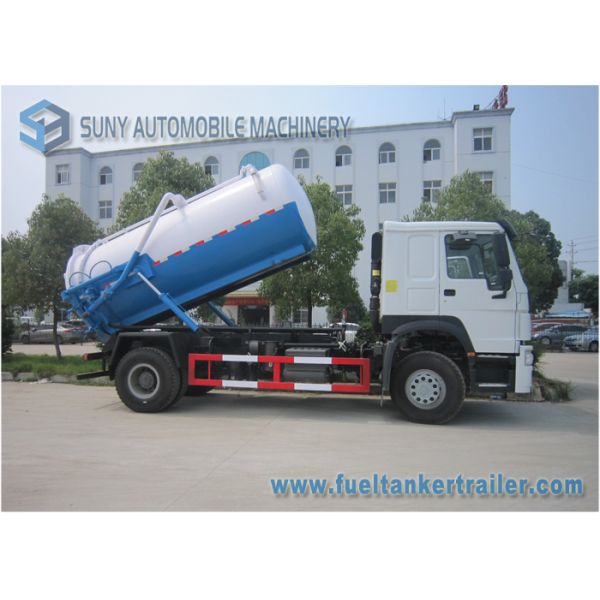

Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve.

Equipped with power take off, transmission shaft, , pipe network, sewage pipe for

observing and cleanout equipment.
