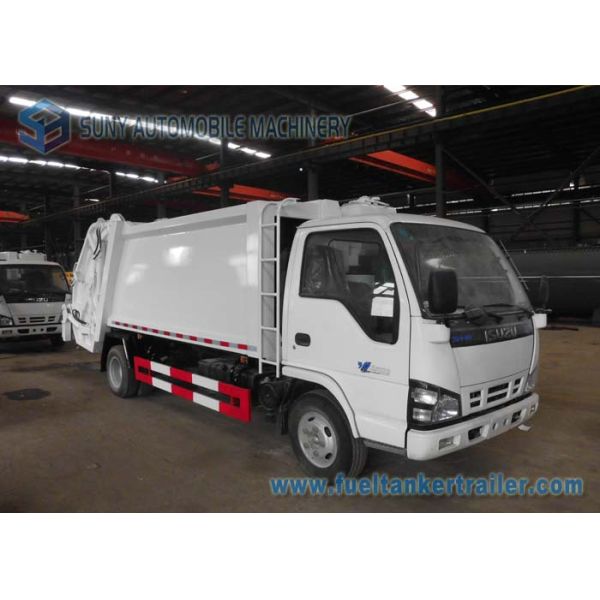

Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
Specifications
Brand Name :
SUNY
Model Number :
SY5050LJIZ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD25000-USD40000
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200 set per month
Delivery Time :
15 - 25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/model :
ISUZU/NKR77PLPACJAY
Garbage van capacity :
6 m3+ 1 m3
Tank material :
Q235
Dimension :
5950*1880*2280 mm
Engine :
4KH1-TC
Drive :
4X2
Wheel base :
3360 mm
Description

5 m3-6 m3 4*2 Isuzu 600p Comperssion Garbage Truck Single Row 130 hp 2axles

Description&Applications:

Compression garbage truck is the urban sanitation special vehicle which is used to highly collecting,transiting garbage and could avoid to leak along the way leading to secondary pollution in the collecting and transiting process.It is the ideal urban sanitation equipment.

1. The collecting method is simple.

2. High compression ratio and big loading capacity

3. Automatic operation: adopting computer controlling system,could set two operating models with full-automation and half-automation.

Competitive Advantage:

1- powful R & D capabilities------we can design and produce the truck according to different trash cans of different countries so that it can be fit for the different countries’ demand.

2- strict quality control----stable quality for each truck

3- competitive price-----based on same product, our price is most competitive

4- best service-----we cherish each customer and opportunity.

Specifications:

5 m3-6 m3 4*2 Isuzu 600p Comperssion Garbage Truck Single Row 130 hp 2axles

Chassis Model.

NKR77PLPACJAY

Engine

Engine model and emission

4KH1-TC (Euro III)

Rated power of engine (kw/rpm)

96/2000

Displacement (L)

2.999

Gearbox

Gearbox type

MSB

5- Speed

axle

Front/Rear axle load (T)

2 T/4.8 T

Cabin type/width (mm)

600P SINGER ROW AIR CONDITION/1880

Drive form

4×2

Tire type/number

7.00-16

Steering device

Power steering

Performance parameter

Maximum speed (no load)(km/h)

105

Maximum gradeability (%)

≥25%

Fuel consumption per hundred kilometers (L/100km)

8.00

Minimum turning radius (m)

6.142

Dimension parameters

Overall dimensions (LxWxH)mm

5950*1880*2280

Wheelbase (mm)

3360

Front/rear wheel track (mm)

1504/ 1425

Front/rear suspension (mm)

1015/ 1880

Rated voltage (V)

24

Weight data (kg)

G.V.W

7300

Curb weight

4700

Max payload

3000-7000

Upper configuration

Van capacity (m³)

6 m3+ 1 m3

Height from filling mounth to ground

900

Cycle time for once

≤28

Discharge waste time for once

≤30

Max broken compressive force

21
Isuzu 5 Speed Two Axle Garbage Trucks / Vehicle Single Row 130 Hp
