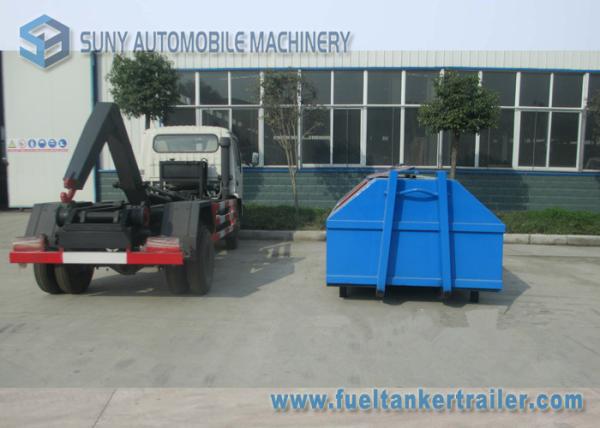

Dongfeng 2 Axle 5 Ton Hook Lift Garbage Truck Refuse Waste Collection Truck
Dongfeng 2 Axle 5 Ton Hook Lift Garbage Truck Refuse Waste Collection Truck
Dongfeng 2 Axle 5 Ton Hook Lift Garbage Truck Refuse Waste Collection Truck
Dongfeng 2 Axle 5 Ton Hook Lift Garbage Truck Refuse Waste Collection Truck
Specifications
Brand Name :
SUNY
Model Number :
SY1061ZBS
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 12000 - USD 17000
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200 set per month
Delivery Time :
15 - 25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/model :
Dongfeng 4 * 2
Refuse body capacity :
4 m3, 5 m3
Tank material :
Q235
Dimension :
5380 * 1900 * 2140 mm
Engine :
4100QBZL
Drive :
4 * 2, right steering, left steering
Wheel base :
3300 mm
Description

4 - 5 Ton 4*2 Dongfeng 2 Axle Hook Lift Garbage Truck, Refuse Collector Truck


1. 95hp engine, Euro II, III or IV
2. Fast gear box
3. 4x2 chassis right or left hand steering

Applications:

The garbage truck is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.
If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.

Competitive Advantage:

garbage truck,trash collection convenient, highly effective, repeatedly compresses automatically,working automation, leak-proof garbage truck
1. High fuel efficiency

2. The turbocharger with wastegated design

3. Compacted yet durable and dependable engine

4. Advanced design and manufacturing

5. Excellent cold start performance

6. Excellent performance and advantage

Specifications:

Product

4 - 5 Ton 4 * 2 Dongfeng 2 Axle Hook Lift Garbage Truck, Refuse Collector Truck

Chassis type

EQ1061T14DJ2A

Cubage T

4-5

Parameters

Overall dimension length / width / height ( mm )

5380 * 1900 * 2140

Total Mass ( kg )

6120

Payload ( kg )

3500

Kerb Mass ( kg )

2500

Approach angle / Departure angle ( mm )

19 / 15

Front suspension / rear suspension ( mm )

962 / 1918

Fuel Type

diesel

Fuel Consumption / 100 km

9

Max Speed

95

Engine

Type

4100QBZL

Displacement / Power ( kw )

3298 / 70

Manufacturer

Kunming Yunnei Power Co., Ltd

Type

4-in-line diesel engine

Chassis

Drive type

4 * 2

Wheelbase ( mm )

3000

Tread ( front / rear )

1404 / 1458

Front axle

1.5 T

Rear axle

3.0 T

Steering gear

Dual-armed steering wheel,recirculating ball steering

Transmission

5 forward gear,1 reverse gear,technical transmission

Clutch

Uniwafer,dry diaphragm spring clutch

Braking system

Brake fluid system,barrelChoose to fix air braking

Cab

Non-longheaded,single row

Number of spring axle ( front / rear)

5 / 8 + 4, 5 / 9, 6 / 8 + 4

Tire Type

6.50-16

Air-condition

Choose to fix

Special performance parameters

Hydraulic system pressure

16 MPa

Crane arm turn radius

2400 mm

Hydraulic system Flow capacity

Crane arm maximum pivot angle

145

Hoisting time

30s

Unloading time

50s

Dongfeng 2 Axle 5 Ton Hook Lift Garbage Truck Refuse Waste Collection Truck
