50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
Specifications
Brand Name :
SUNY
Model Number :
SY40GP-5002GYY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 45,000 ~ 60,000 FOB Shanghai
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
1000 units/per year
Delivery Time :
25 ~ 35 days after we get the deposit
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Fuel Tank capacity :
50000 L
Working pressure :
0.9 bar
Whole trailer dimension :
12192*2438*2591 mm
Refuel station color :
optional
Refuel tank material :
Mild steel Q345 / Q235
Refuel station :
ISO 40FT GP container
Description

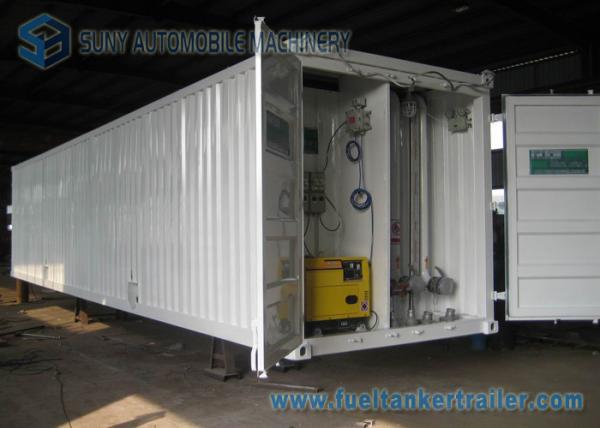

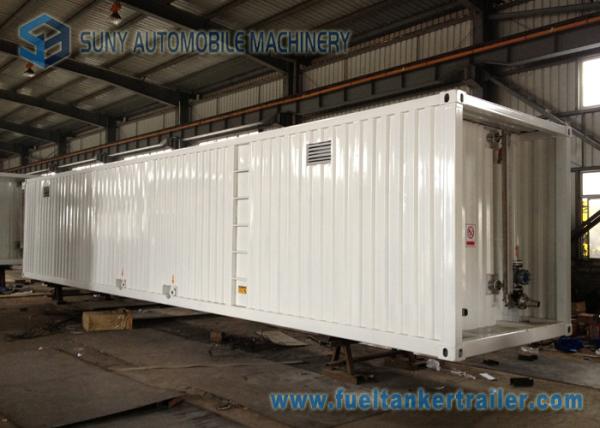

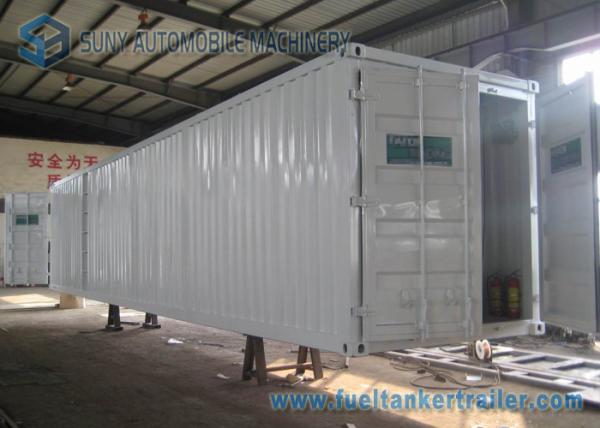

50000 L Mobile Refuel Station Container ISO 40FT Oil Storage Tank Container

Description & Applications:

Mobile fuel tank refuel station container belongs to the optimization of the storage tank equipment. Mobile refuel station have a large volume of oil storage more energy, and at the same time can be achieved on other needs of the oil supply equipment or vehicles to provide refueling. Have independent operation ability. Applies to construction sites, or remote area, and to facilitate the transfer of the use of the different site. Thus greatly improving the use efficiency and the auxiliary role of oil supply..

We also produce all kinds of aluminum oil tank trailer with various international standards, and stainless steel oil tank semi trailer, mild steel tanker semi trailer, and different brand oil tank truck with different capacity.

Competitive Advantage:
We can be completely customized all different truck and trailer according to customer needs; with advanced design concept; the production process and the first class process, as well as services; competitive prices.


Specifications:

40ft Mobile (Storage/Refuel) container station (Total volume 50000 L)

(Two fuel compartment - Diesel & Gasoline)-------( ordinary shape)

TIEM

SPECIFICATION

REMAR

The design standard

SY40GP-5002GYY

GB/T16563-1996 ; ISO1496-3

Exterior

Box Type

40FT

Tank Shape

Trapezoid Shape

Horizontal

Inner storage tanker wall

Single wall

Optional double wall ( or/and ) Riot barrier layer

Maximum Capacity

25000 L * 2 compartments

Double bins (gasoline and diesel)

Opting single compartment for one oil.

Dimension

12192*2438*2591 mm

L*W*H

Curb Weight

6100 kg

Payload

50000 kg

Water load at 20℃

Working Temperature

-19~70 ℃

Working Pressure

0.9 Bar

Tank Materials

GB Q345B

Carbon steel

Thickness

6 mm

End Enclosure

6 mm

Flange flat head

Stiffening ring

6 mm

4pcs double bins

Compound Manhole

DN500

2 sets

Safety valve (breather valve)

DN80

2 pcs

Oil and gas recovery joint

DN100

1 set

Drain valve

DN80

2 pcs

Protective Frame

800*750*150 mm

2 pcs

Feeding valve

DN100

With check valve and dust proof cover 2 pcs API

Discharge Valve

DN100

With dust proof cover 2 pcs API

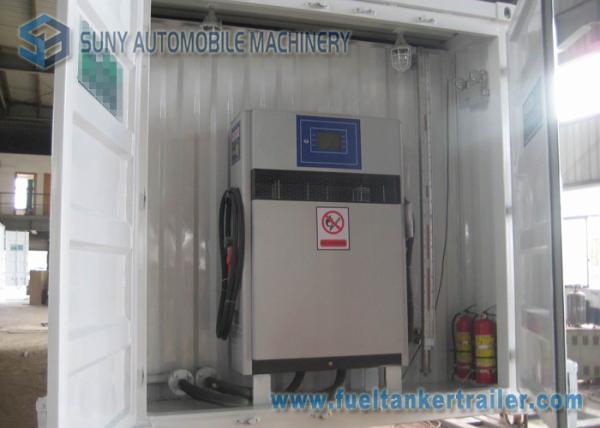

Fuel dispenser

√

1 set, with fuel filter, double refuel guns

Fuel Filter

1 pc

Anti-overflow and Anti-static controller

JL-KEY

2 pcs

Ultrasonic electronic measuring instrument

√

Liquid level alarm 2 pcs

Model of the Engine

√

Power of the Engine

√

Dry powder fire extinguishers

√

Tank door

√

C/W container lock handles

√

Ladder

√

Explosion-proof lighting

4pcs

Fire lights

2pcs

Electric-proof control box

√

Optional

Oil input pump system
(Note: if you need pump, the generator will be changed larger power unit.)


50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
50000 L Mobile Refuel Station Container , ISO 40FT Oil Storage Tank
