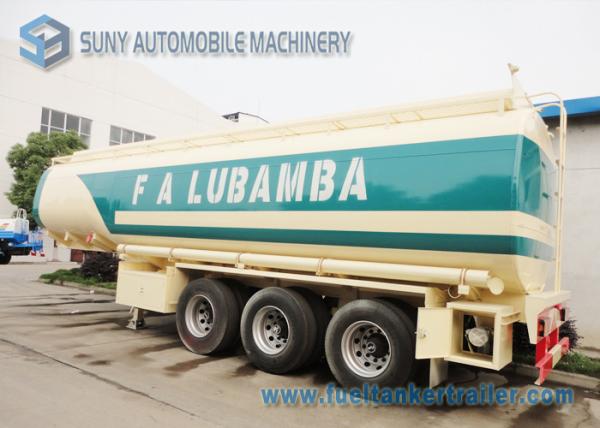

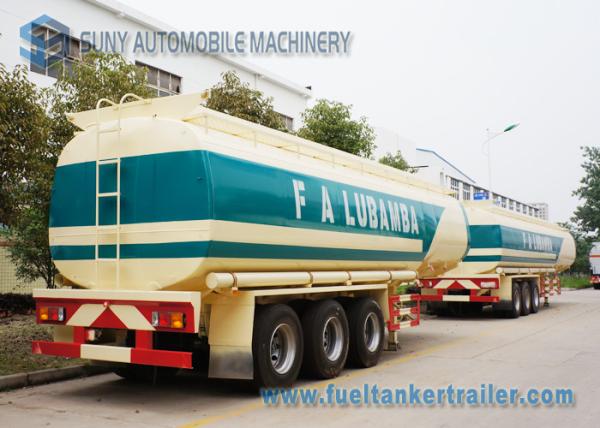

Model : SY9342MGYY ( 42000 liters 3 axles mild steel oil tank trailer )

DIMENSIONS & WEIGHT

Overall Dimensions ( L* W * H )

9500*2500*3950 mm ( dimensions for reference )

Volume

42000 Liters = 42 m³

MAX . GVW

Approx 51200 kg

Kerb weight

Approx ≤ 9200 kg

Rated payload

Approx 42000 kg

TANKER

Main tank shell ( material / thickness )

Mild steel Q345 ( 6 mm )

Head,Wash plate ( material / thickness )

Mild steel Q345 ( 7 mm )

Tanker bottom beam ( material / thickness )

Full loading straight type

Top coaming ( material / thickness )

Mild steel

Overturn protection ( material / thickness )

Mild steel

Tank shape

Trapezoid shape

Compartments

1 compartment, opting more compartments

TANK TOP ACCESSORIES

Aluminum Ladder with pneumatic control aluminum handrail in rear up to the tank top walkway.
With AL Anti-slip Walkway on the top.

TANK EQUIPMENT

Manhole

Opting different brand

Foot valve

Opting different brand

API standard quick connector - drain valve

Opting different brand

API adjustable joints

Opting different brand

API connector dust cover

Opting different brand

Vapor recovery system

Opting different brand

Pneumatic control system

Opting different brand

Air filter with pressure gauge

1 set.

Far end release valve

Opting different brand

Piping

Mild steel

Discharge method

Gravity discharge

RUNNING GEAR

Axle

FUWA 3 * 13 T axles, double wheel.
Opting BPW axle and single wheel

Suspension

Mechanical , opting pneumatic

Tire and Rim

12+1 tires 11.00R22.5
12+1 pcs steel rims, opting aluminum rims

King pin

JOST 2” kingpin ( 50 # ) or 3.5”( 90 # )

Landing legs

JOST A400

Side guard

1 set LTA approval side guards

Rear Bumper

1 set LTA approval rear heavy duty under-run bumper

BRAKING SYSTEM

Double line air brakes Mechanical parking brake with WABCO emergency relay valve. Air braking.
WABCO ABS SYSTEM 4S/2M

ELECTRIC INSTALLATION

Complete 24V system in explosion proof installation. 7 pin socket for tractor connection. With Junction box
LED lights. Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
With the reverse buzzer

PAINTING

Without painting, shiny finished.

ACCESSORIES

Mudguards

PVC Mudguards for each tire.

Drain hose

√

Earthing strip

√

Fire extinguishers carriers

√

Spare tire carrier

√

Tool box

√
