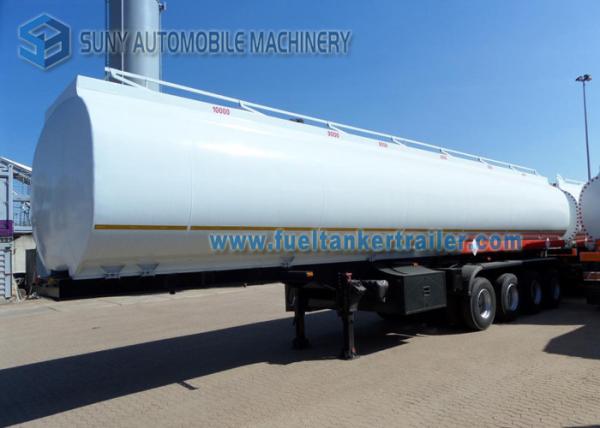

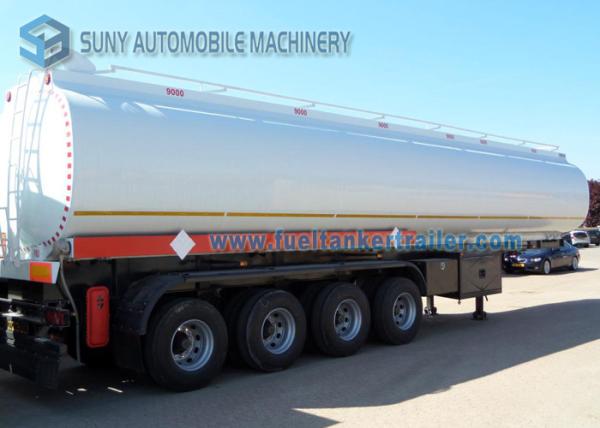

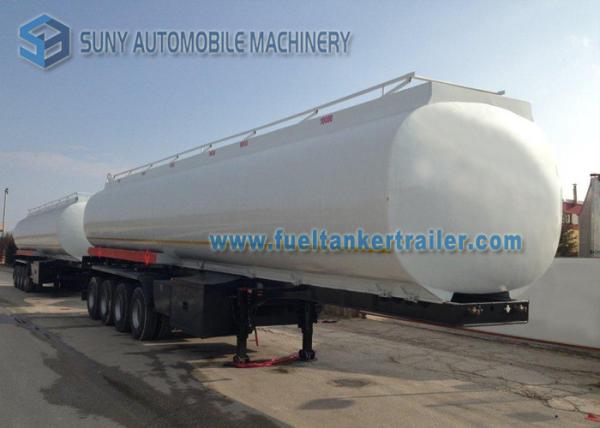

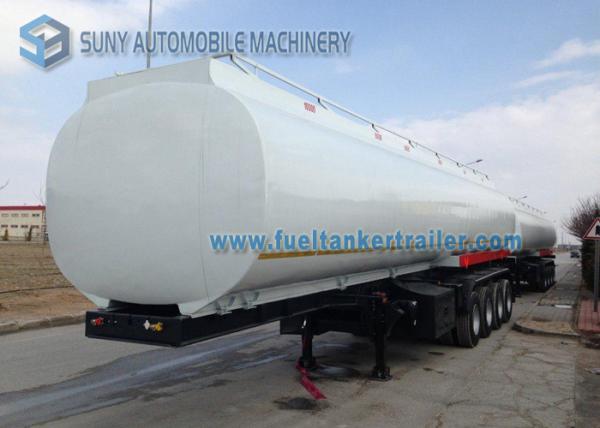

Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Heavy Duty Elliptical 4 Axle Oil Tank Trailer Container Semi Trailer
Specifications
Brand Name :
SUNY
Model Number :
SY9456MGYY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 45,000 ~ 70,000 FOB Shanghai
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
1000 units/per year
Delivery Time :
28 ~ 40 days after we get the deposit
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Oil Tank capacity :
56000 L
Oil tank shape :
Elliptical shape
Whole trailer dimension :
13500*2500*3950 mm
Oil tank trailer :
4 axles FUWA mechanical suspension
Loading system :
Mechanical
Oil tank color :
optional
Oil tank material :
mild steel Q345
Workiing pressure :
0.9 Bar
Description

56000 Liters Oil Tank Trailer 4 axles Mild Steel Fuel Tanker Semi Trailer

Description & Applications:

Oil tank semi trailer is tractor head connecting oil tank trailer. Compared with the ordinary single type tank car, semi-trailer tanker carrying oil can effectively improve the transportation efficiency. In the case of the same tonnage, reduce transportation costs, save fuel consumption.

Oil tank trailer in the rear of the tractor is approximately the similar, ordinary more are double (two axles), or bridge (tri-axle) points, according to the need to choose the traction head. And we can fabricate different axle and tires models in according to customer’s requirement.

We also produce all kinds of aluminum oil tank trailer with various international standards, and stainless steel oil tank semi trailer, mild steel tanker semi trailer.

Competitive Advantage:
We can be completely customized all different truck and trailer according to customer needs; with advanced design concept; the production process and the first class process, as well as services; competitive prices.


Specifications:
56000 Liters 4 axle Mild Steel Oil Tank Trailer

Model : SY9456MGYY ( 56000 liters 4 axle mild steel oil tank trailer )

DIMENSIONS & WEIGHT

Overall Dimensions ( L* W * H )

13500*2500*3950 mm ( dimensions for reference )

Volume

56000 Liters = 56 m3

MAX . GVW

Approx 66800 kg

Kerb weight

Approx ≤ 10800 kg

Rated payload

Approx 56000 kg

TANKER

Main tank shell ( material / thickness )

Mild steel Q345 ( 5 mm )

Head,Wash plate
( material / thickness )

Mild steel Q345 ( 6 mm )

Tanker bottom beam
( material / thickness )

Full loading straight type

Top coaming ( material / thickness )

Mild steel

Overturn protection
( material / thickness )

Mild steel

Tank shape

Elliptical shape

Compartments

1 compartment, opting more compartments

TANK TOP ACCESSORIES

Aluminum Ladder with pneumatic control aluminum handrail in rear up to the tank top walkway.
With AL Anti-slip Walkway on the top.

TANK EQUIPMENT

Manhole

Opting different brand

Foot valve

Opting different brand

API standard quick connector - drain valve

Opting different brand

API adjustable joints

Opting different brand

API connector dust cover

Opting different brand

Vapor recovery system

Opting different brand

Pneumatic control system

Opting different brand

Air filter with pressure gauge

1 set.

Far end release valve

Opting different brand

Piping

Mild steel

Discharge method

Gravity discharge

RUNNING GEAR

Axle

FUWA 4 * 13 T axles, double wheel.
Opting BPW axle and single wheel

Suspension

Mechanical , opting pneumatic

Tire and Rim

16+1 pcs tires 11.00R22.5
16+1 pcs steel rim, opting aluminum rim

King pin

JOST 2” kingpin ( 50 # ) or 3.5”( 90 # )

Landing legs

JOST A400

Side guard

1 set LTA approval side guards

Rear Bumper

1 set LTA approval rear heavy duty under-run bumper

BRAKING SYSTEM

Double line air brakes Mechanical parking brake with WABCO emergency relay valve. Air braking.
WABCO ABS SYSTEM 4S/2M

ELECTRIC INSTALLATION

Complete 24V system in explosion proof installation. 7 pin socket for tractor connection. With Junction box
LED lights. Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
With the reverse buzzer

PAINTING

Without painting, shiny finished.

ACCESSORIES

Mudguards

PVC Mudguards for each tire.

Drain hose

√

Earthing strip

√

Fire extinguishers carriers

√

Spare tire carrier

√

Tool box

√
