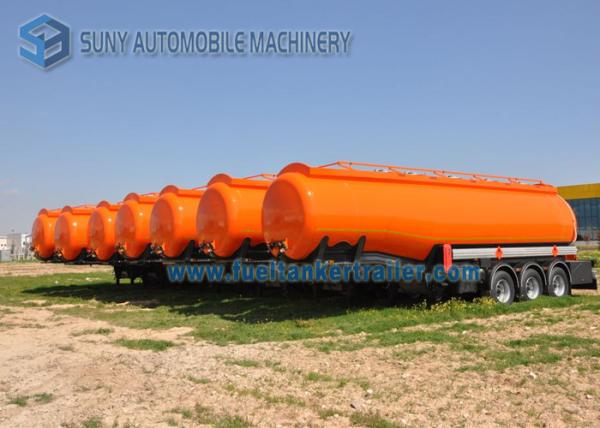

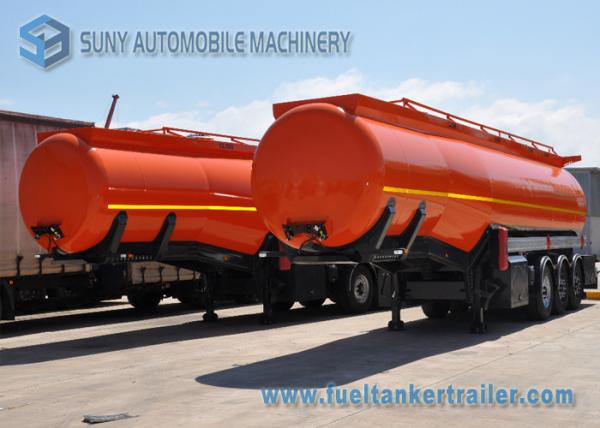

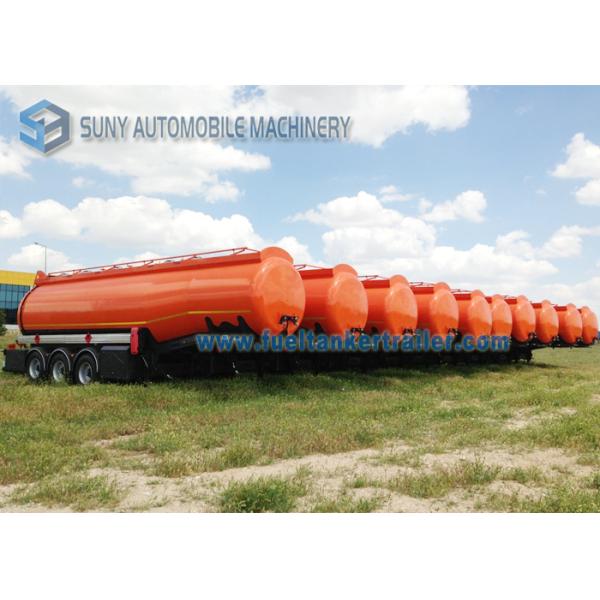

High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
High Capacity International Goose Neck Oil Tank Trailer 45000L 3 Axle
Specifications
Brand Name :
SUNY
Model Number :
SY9345MGYY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 34,000~ 60,000 FOB Shanghai
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
1000 units/per year
Delivery Time :
20~30 days after we get the deposit
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Oil Tank capacity :
45000 L
Oil tank shape :
Goose Neck Cylinder shape
Working pressure :
0.9 bar
Whole trailer dimension :
11800*2500*3950 mm
Oil tank trailer :
3 axles BPW mechanical suspension
Loading system :
Mechanical
Oil tank color :
opting
Oil tank material :
MS Q345
Description

45000 L Mild Steel Goose Neck Oil Tank Trailer 3 Axle Fuel Tanker Semi Trailer

Description & Applications:

Oil tank semi trailer is tractor head connecting oil tank trailer. Compared with the ordinary single type tank car, semi-trailer tanker carrying oil can effectively improve the transportation efficiency. In the case of the same tonnage, reduce transportation costs, save fuel consumption.

Oil tank trailer in the rear of the tractor is approximately the similar, ordinary more are double (two axles), or bridge (tri-axle) points, according to the need to choose the traction head. And we can fabricate different axle and tires models in according to customer’s requirement.

We also produce all kinds of aluminum oil tank trailer with various international standards, and stainless steel oil tank semi trailer, mild steel tanker semi trailer.

Competitive Advantage:
We can be completely customized all different truck and trailer according to customer needs; with advanced design concept; the production process and the first class process, as well as services; competitive prices.


Specifications:

45000 L Mild steel Goose Neck Oil Tank Trailer 3 axle

Model : SY9345MGYY ( 45000 L mild steel goose neck oil tank trailer 3 axle )

DIMENSIONS & WEIGHT

Overall Dimensions ( L* W * H )

11800*2500*3950 mm ( dimensions for reference )

Volume

45000 L = 45 m3

MAX . GVW

Approx 54400 kg

Kerb weight

Approx ≤ 9400 kg

Rated payload

Approx 45000 kg

TANKER

Main tank shell ( material / thickness )

Mild steel Q345 ( 6 mm )

Head, Wash plate
( material / thickness )

Mild steel Q345 ( 7 mm )

Tanker bottom beam
( material / thickness )

Full loading straight type

Top coaming ( material / thickness )

Mild steel

Overturn protection
( material / thickness )

Mild steel

Tank shape

Goose Neck Cylinder shape

Compartments

1 compartment, opting more compartments

TANK TOP ACCESSORIES

Aluminum Ladder with pneumatic control aluminum handrail in rear up to the tank top walkway.
With AL Anti-slip Walkway on the top.

TANK EQUIPMENT

Manhole

Opting different brand

Foot valve

Opting different brand

API standard quick connector - drain valve

Opting different brand

API adjustable joints

Opting different brand

API connector dust cover

Opting different brand

Vapor recovery system

Opting different brand

Pneumatic control system

Opting different brand

Air filter with pressure gauge

1 set.

Far end release valve

Opting different brand

Piping

Mild steel

Discharge method

Gravity discharge

RUNNING GEAR

Axle

BPW 3 * 12 T axles, single wheel. Opting FUWA axle and double wheel

Suspension

Air suspension , opting mechanical

Tire and Rim

6+1 tires 385/65R22.5
6+1 pcs aluminum rims

King pin

JOST 2” kingpin ( 50 # ) or 3.5” ( 90 # )

Landing legs

JOST A400

Side guard

1 set LTA approval side guards

Rear Bumper

1 set LTA approval rear heavy duty under-run bumper

BRAKING SYSTEM

Double line air brakes Mechanical parking brake with WABCO emergency relay valve. Air braking.
WABCO ABS SYSTEM 4S/2M

ELECTRIC INSTALLATION

Complete 24V system in explosion proof installation. 7 pin socket for tractor connection. With Junction box
LED lights. Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
With the reverse buzzer

PAINTING

Without painting, shiny finished.

ACCESSORIES

Mudguards

PVC Mudguards for each tire.

Drain hose

√

Earthing strip

√

Fire extinguishers carriers

√

Spare tire carrier

√

Tool box

√
