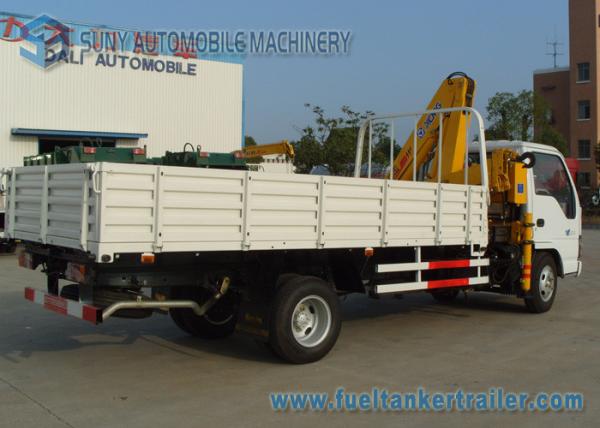

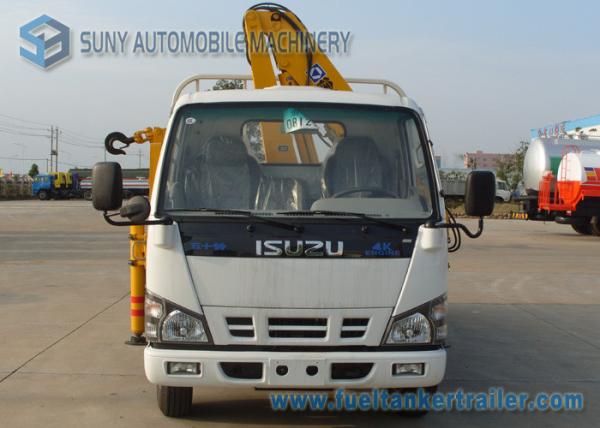

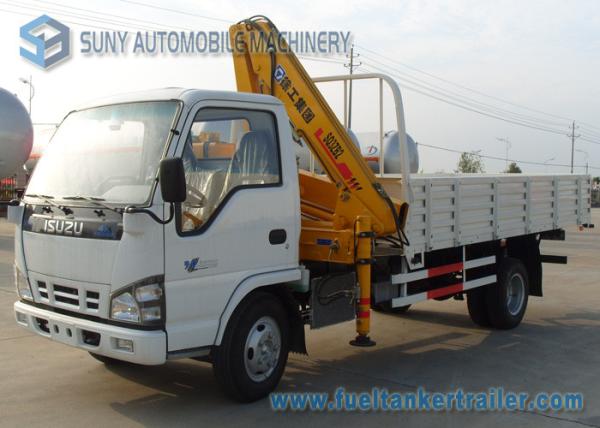

4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
4 X 2 Isuzu 3000KG Diesel Crane Mounted Truck With Knuckle Boom
Specifications
Brand Name :
SUNY
Model Number :
QL1050A1HAY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 35000-40000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk, ro-ro, container
Type :
4 X 2 Truck Crane
G. V. W. ( kg ) :
4495
Wheelbase (mm) :
3360
Tire & Quantity :
6.50R16 & 6 + 1
Engine :
4KH1-TCG40
Maximum Power :
88kw/120hp
Lifting Capacity (kg) :
3000
Lifting Height (m) :
10
Description
4 X 2 Isuzu Crane Mounted 3 Ton 3000KG Truck Crane With Knuckle Boom

Product Description:

We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

Crane brand optional: XCMG, UNIC, SANY, FEITAO, SHIMEI

Crane style optional: telescopic boom and fold boom.

Crane load capacity optional: 1ton 2ton 3.2ton 4ton 5ton 6.3ton 8ton 10ton 12ton 14ton 16ton 25ton 30ton 50ton.....

1. Product Parameter:

Products Technical Specification

Type

4*2 Truck With Crane

Brand

ISUZU

Emission Standard

Euro 4

Cab

Single row,Optional A/C

Vehicle Description

Overall dimensions (mm)

5995 *1900 * 2820

Van dimensions (mm)

3600 * 1800 * 550 (can be adjusted according to your requirement)

G.V.W (kg)

4495

Curb weight(vehicle) (kg)

2900

Loading capacity (kg)

5000

Whole vehicle main performance

Max speed (Km/h)

105

Engine

Engine model

4KH1-TCG40

Maximum power (kw)

88kw / 120hp

Displacement (lit)

2999

Chassis Description

Chassis model

QL1050A1HAY

Wheel base (mm)

3360

F / R track base (mm)

1504 / 1425

Gear box

5 forwards & 1 reverse

F / R overhang (mm)

1015 / 1620

Approach/Departure angle (°)

24 / 15

Spring plate

8 / 6 + 5

Front / Rear axle (kg)

2000 / 2500

Type of fuel

Diesel

Brake system

Air braking

Operation control system

Power Steering

Electric system

24V

Tires & Quantity

6.50R16 12PR & 6+1

Crane Description:

Crane description

Model

SQ3.2ZK2

Max Lifting Capacity (kg)

3200

Max Pressure of Hydraulic System (MPa)

22

Oil Tank Capacity (L)

60

Crane Weight (kg)

1200

Max Lifting Moment (T.M)

6.72

Max. Operating Diameter (m)

7.2

Max. Lifting Height (m)

10

Rotation Angle

All Rotation 360°

Boom Section

3

Installation Space (mm)

850

Working Radius (m)

2.1 / 4.15 / 5.8 / 7.3

Lifting Capacity (kg)

3200 / 1300 / 950 / 650

Other

Production cycle

15-20 days

Warranty

12 month from date of supply
2. Packing and Shipping:

Truck is nude packing, shipping in container, in bulk , in ro-ro.

We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients’ requirement for clients!

3. Company Information:

Hubei Suny Automobile And Machinery Co., Ltd is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Our advantage:

(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.

(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.

(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.

If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.

4. Our Service:

Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.

We highly recommend this crane mounted truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.

If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.

Looking forward to receiving your inquiry!
