12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
Specifications
Brand Name :
SUNY
Model Number :
SYSQ12SA3
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 25,000~ 30,000 EXW Factory
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
50 sets per month
Delivery Time :
35 days after receiving deposits
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Maxl lIft capacity :
12000 kg = 12 ton
Max lift moment :
30 Ton.m
Oil tanker capacity :
160 L
Crane weight :
4150 kg
Installation space :
1300 mm
Max working radius :
14600 mm (without jib)
Description

12 Ton Telescopic Boom Straight Arm Crane Mounted Truck 14600 mm Working Radius

Product Description:

We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

Crane brand optional: SUNY, XCMG, UNIC, SANY, FEITAO, SHIMEI

Crane style optional: telescopic boom and knuckle boom.

Crane load capacity optional: 1 ton, 2 ton, 3.2 ton, 4 ton, 5 ton, 6.3 ton, 8 ton, 10 ton, 12 ton, 14, ton, 16 ton, 25 ton, 30 ton, 50 ton.....

Product Description:

SUNY SQ12SA3 Telescopic Boom Truck Crane

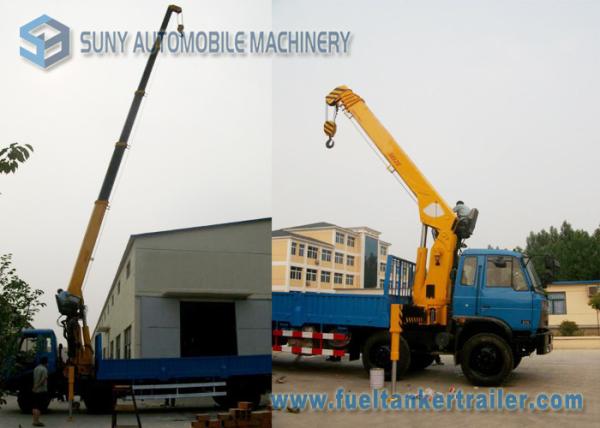

The SYSQ12SA3 telescopic boom crane ( color optional), there have more images as below.

SYSQ12SA3 ( SUNY brand )

Working radius ( mm )

2500

5200

8300

11400

14600

x

x

x

x

Rated load ( kg )

12000

5700

3250

1900

1400

x

x

x

x

Note: our straight arm crane SQ12SA3, the largest load 12 ton, the standard model max. working radius is 14600 mm, which does not include increasing jib.

Following is drawing of the SYSQ12SA3 folding arm truck crane ( Which include detailed specification on it


12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius

12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius

12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius

12 Ton Telescopic Boom Straight Arm Truck Mounted Crane 14600 mm Working Radius
