Specifications
Brand Name :
SUNY
Model Number :
SYSQ12ZA4
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 29,000~ 33,000 EXW Factory
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
50 sets per month
Delivery Time :
35 days after receiving deposits
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Maxl lIft capacity :
12000 kg = 12 tonS
Max lift moment :
27.0 Ton.m
Oil tank capacity :
160 Liters
Crane weight :
4000 kg
Installation space :
1400 mm
Max working radius :
12000 mm (without jib)
Description

High Performance Knuckle Fold Arm Crane Mounted Truck 12 Ton Trucks

Product Description:

We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

Crane brand optional: SUNY, XCMG, UNIC, SANY, FEITAO, SHIMEI

Crane style optional: telescopic boom and knuckle boom.

Crane load capacity optional: 1 ton, 2 ton, 3.2 ton, 4 ton, 5 ton, 6.3 ton, 8 ton, 10 ton, 12 ton, 14, ton, 16 ton, 25 ton, 30 ton, 50 ton.....

Product Description:

SUNY SQ12ZA4 Knuckle Truck Crane

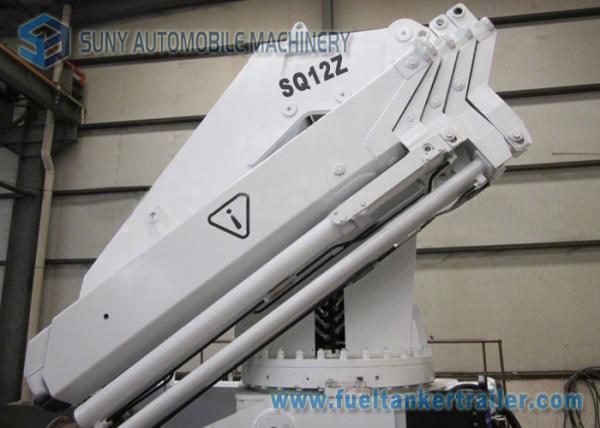

The SYSQ12ZA4 knuckle boom crane (color optional), there have more images as below.

SYSQ12SA4 ( SUNY brand )

Working radius ( mm )

225

470

645

830

1015

12000

Rated load ( kg )

12000

5700

3750

2750

2100

1600

Note: our fold arm crane SQ12ZA4, the largest load 12 ton, the standard model max. working radius is 12000 mm, if you need longer, which does not have increasing manual boom crane.

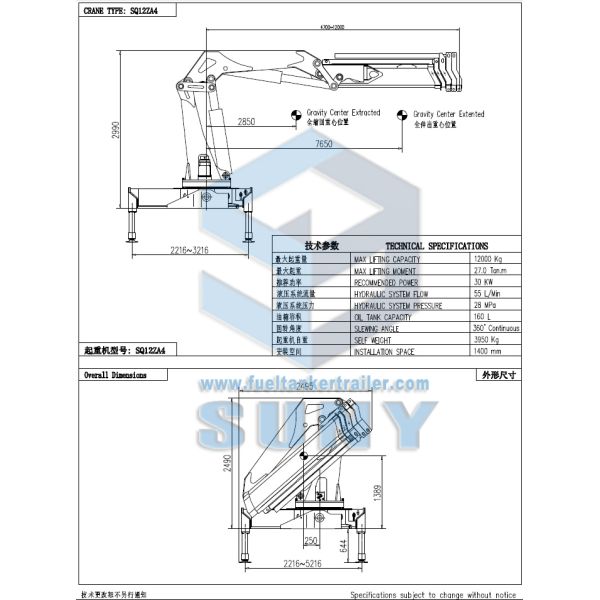

Following is drawing of the SYSQ12ZA4 folding arm truck crane ( Which include detailed specification on it


High Performance Knuckle Fold Arm Crane Mounted Truck 12 Ton Trucks

High Performance Knuckle Fold Arm Crane Mounted Truck 12 Ton Trucks
