Specifications
Brand Name :
SUNY
Model Number :
SYSQ1ZA2
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 5800~ 12,000 EXW Factory
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
50 sets per month
Delivery Time :
35 days after receiving deposits
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Maxl lIft capacity :
1000 kg = 1 ton
Max lift moment :
2.2 Ton.m
Oil tank capacity :
25 L
Crane weight :
550 kg
Installation space :
500 mm
Max working radius :
4230 mm (with manual jib)
Description

1 Ton Folding Arm Crane Mounted Truck SQ1ZA2 Knuckle Boom Truck Crane 4230 mm Max Working Radius

Product Description:

We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

Crane brand optional: SUNY, XCMG, UNIC, SANY, FEITAO, SHIMEI

Crane style optional: telescopic boom and knuckle boom.

Crane load capacity optional: 1 ton, 2 ton, 3.2 ton, 4 ton, 5 ton, 6.3 ton, 8 ton, 10 ton, 12 ton, 14, ton, 16 ton, 25 ton, 30 ton, 50 ton.....

Product Description:

SUNY SQ1ZA2 Knuckle Truck Crane

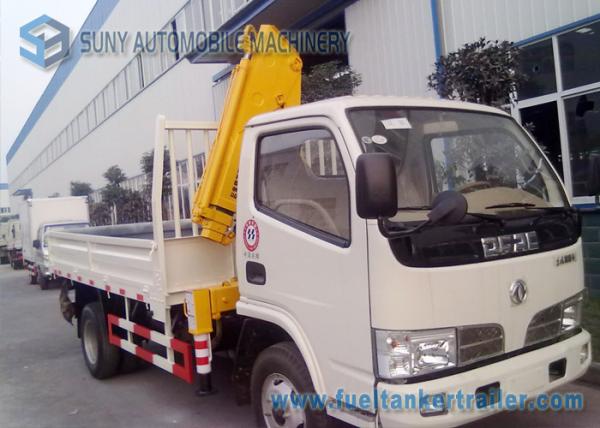

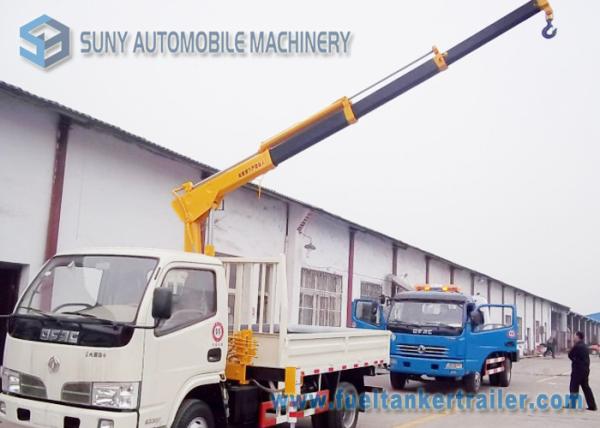

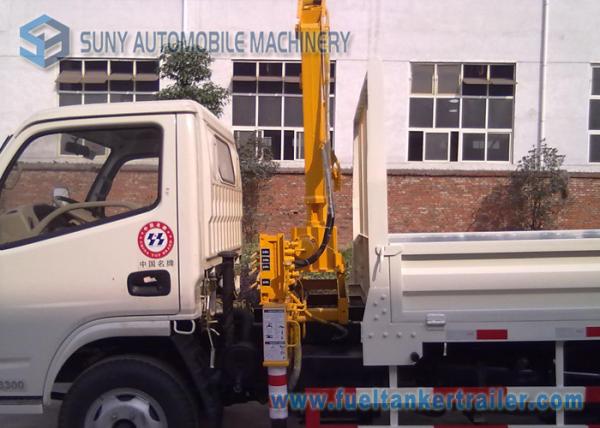

The SYSQ1ZA2 knuckle boom crane (color optional), there have more images as below.

SYSQ1SA2 ( SUNY brand )

Optional arm

Working radius ( mm )

1390

2300

3250

4230

Rated load ( kg )

1600

1000

500

300

Note: our fold arm crane SQ1ZA2, the largest load 1 ton, the standard model max. working radius is 3250 mm, if you need longer, we can add one more manual operation arm to 4230 mm.

Following is drawing of the SYSQ1A2 folding arm truck crane ( Which include detailed specification on it ):

Knuckle Boom 1 Ton Crane Mounted Truck 4230mm Max Working Radius

Knuckle Boom 1 Ton Crane Mounted Truck 4230mm Max Working Radius+

.Knuckle Boom 1 Ton Crane Mounted Truck 4230mm Max Working Radius

Knuckle Boom 1 Ton Crane Mounted Truck 4230mm Max Working Radius
