Model : SY9380GLF ( 38 M³ Dry Bulk Cement Tank Semi Trailer )

DIMENSIONS & WEIGHT

Overall Dimensions (L*W*H)

11980*2500-3800 mm (with air compressor and power unit).
Upper dimension just for reference.

Volume

38 m³

MAX. GVW

54100 kg

Kerb weight

8500 kg

Pay load

45600 kg

TANKER

Tank Material

Mild steel Q345 ( Opting aluminum )

shape

V shape

Thickness of shell

5 mm

Thickness of dish

6 mm

Test pressure

3 bar

Max working pressure

2 bar

Working temperature

-20° to 50°

Compartments

The tank is divided in 1 room

Manhole

2 pcs pressure manhole

Aeration pad

Valve type aeration system.

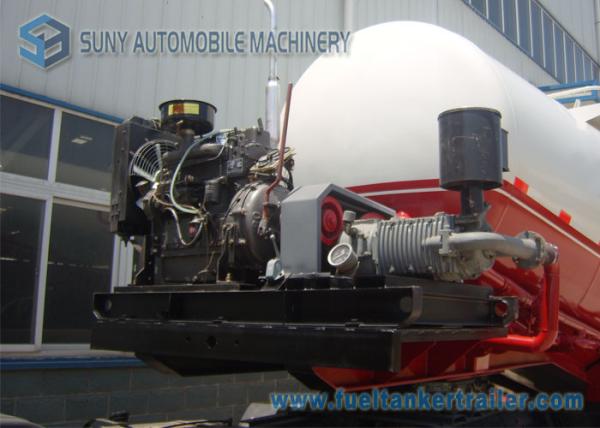

Air compressor

NORTH 12/2 air compressor (optin)

Power unit

Hufeng 4105 diesel power unit (optin)

Guard on top of tank

Checkered plate

Side guard

Cross bar structure

Rear bottom guard

Fixed type

RUNNING GEAR

Axle

FUWA 3-pcs*13 T axles, double wheel.

Tire & Rim

12-pcs * 12.00R220 tires ( opting different brand tire )
12-pcs * 9.0R22.5 rim ( opting steel rim or aluminum alloy rim )

Leaf spring

6-pcs 90*16*13

Suspension

Mechanical suspension ( opting air suspension )

King pin

JOST C200 2.0" kingpin ( 5 0# ) opting, 3.5”( 90 # )

Landing legs

1 pair . JOST

Main beam

Q345, 8 mm, L shape

PNEUMATIC BRAKING SYSTEM

Air tank

2 set

Spring brake chamber

2-pcs T3030, 2-pc T30

Air connector

1 set stander air connector

Valve

1 pc WABCO ABS

ELECTRIC INSTALLATION

Complete electrical system with 7- socked DIN and SAE connection. 24V
One set of LED standard lamb, nangua brand.
One set of standard cable

PAINTING

One primer +final painting
All steel parts are sand blasted before painting. Anti-corrosion.
Primer, finished urethane paint.
All painting are according to customer’s requirement.

ACCESSORIES

Mudguards

PVC Mudguards

Side protection

√

Spare tire carrier

√ 1-set

Ladder

√ 1-set

Hand rail

√ 1-set

Hose and Carrier

3” 8 meters discharging PVC hose *1-pc. hose carrier on left/right side

Tool box

1 set tool box with factory's standard free tools
