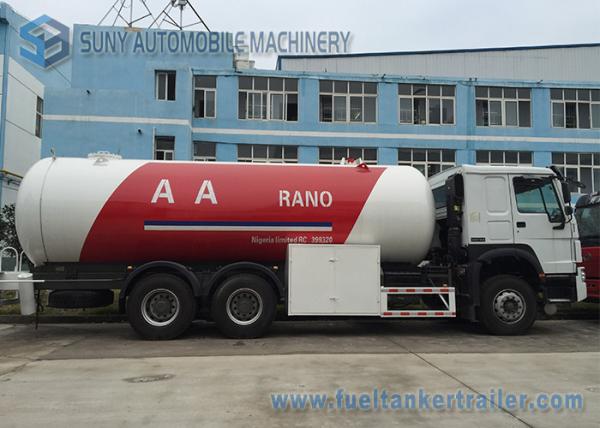

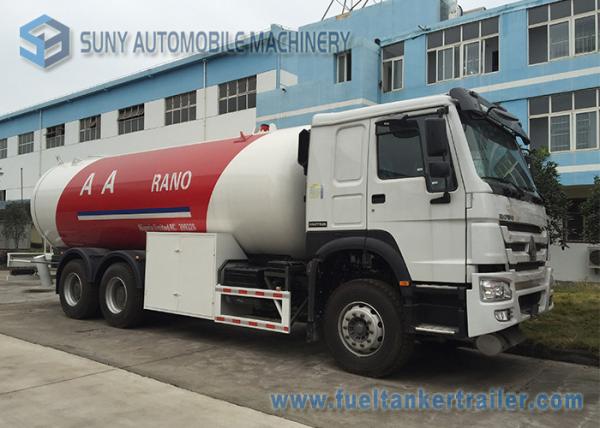

SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
Specifications
Brand Name :
SUNY
Model Number :
SY5251GYQ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 63000 - 78000 / unit
Supply Ability :
500 units per year
Delivery Time :
30 working days
Packaging Details :
Container , RO/RO , Bulk
Tank Capacity :
24000L
LPG Tank Material Thickness :
12mm
LPG Tank Material :
Q345r, Optional: Q370r
Tank Filling Media :
LPG, Propane
Designed Pressure :
1.77MPa
LPG Density :
Wholly Get Rid of Stress
Rust Thickness :
1mm
LPG dispenser :
optional equipped
Description

SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas

LPG tank design and produce:


A ) LPG tank Designing pressure:0.7~2.16Mpa Designing temperature:50
B ) The various types LPG tank is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
C ) We inspect the quality of lpg tank product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
D ) There are domestic or imported safety accessories with high quality ,its matching is complet for lpg tank.
E ) The anticorrosion coating of LPG tank adopt the following process, sandblast, spray painting ,purging and so on.

20000-24000L LPG tank truck specification:

Design and production standard
1.TSG R0005-2011<Supervision regulation on safety technology for stationary pressure vessel>
2.JB/T19905-2005 < LPG transported tank truck>, GB150 1~4-2011<pressure vessels>
LPG tank truck specification
Filling gas LPG
Tank capacity 24800L
Loading weight 10416kg
Chassis model SINOTRUK HOWO & 6X4
Overall dimension 11000*2500*3395mm
Cab

SINOTRUK HOWO HW76

with one sleeper, with A/C, left hand drive (OPTIONAL: RHD)
Wheelbase 4350+1350mm
Bridge Front axle 7T
Rear axle 16T /16T
Enging Model WD615.47(Europe II emission standard)
Horse power 371HP
Displacement 9726CC
Tire 11.00-20(10+1 )
LPG tank specification
Tank material Q345R
Tank Designed thickness End cover 12mm
Tank body 12mm
Designed pressure 1.77Mpa
Tank dimension L7544xΦ2100mm
Testing water pressure 2.1MPa
Air tight test pressure 1.61Mpa
Heat treatment Wholly get rid of stress
Rust thickness 1mm
Use Years Ten years
equipment

1.double tool box
2.double valve box
3.double Emergency Cut-off Valve
4.single pipe liquid out
5.both side loading and unloading
6.with LPG dispenser,LPG pump,Liquid level meter,Pressure meter,Safe valve,Thermometer,

Liquid phase,Gas phase,Sewage draining exit


SINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking GasSINOTRUK HOWO 24m3 Bulk LPG Tank Trailer For Dispensing Cooking Gas
