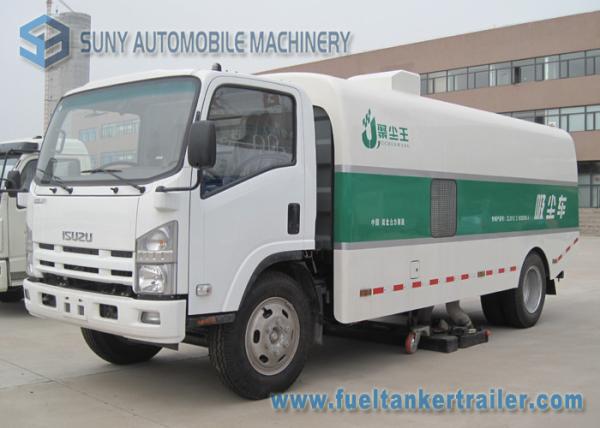

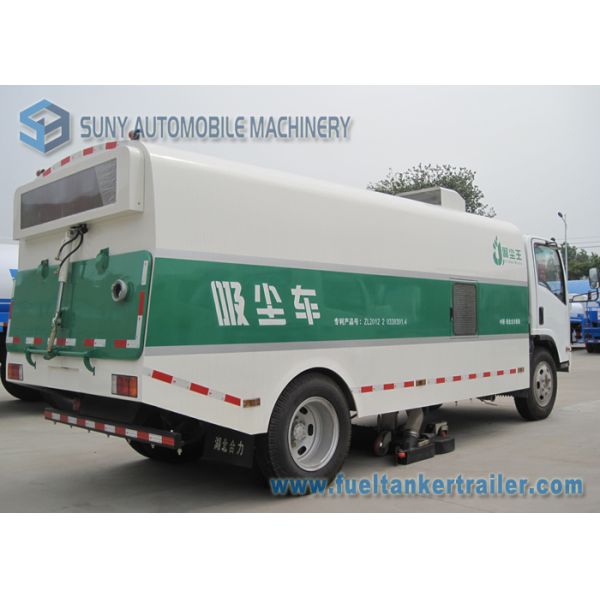

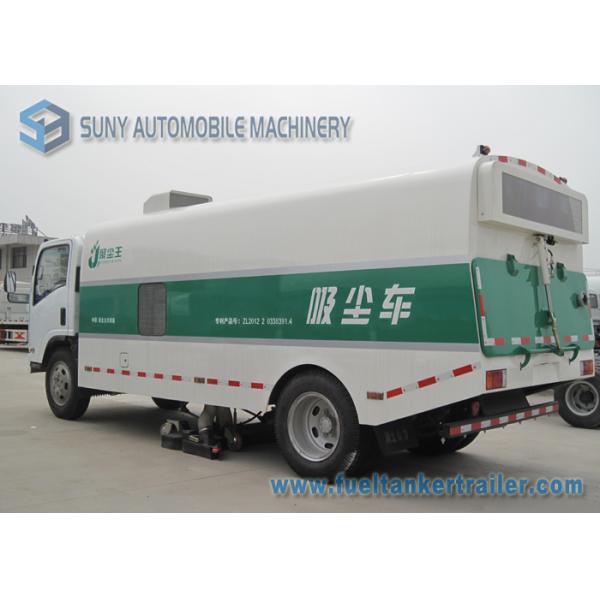

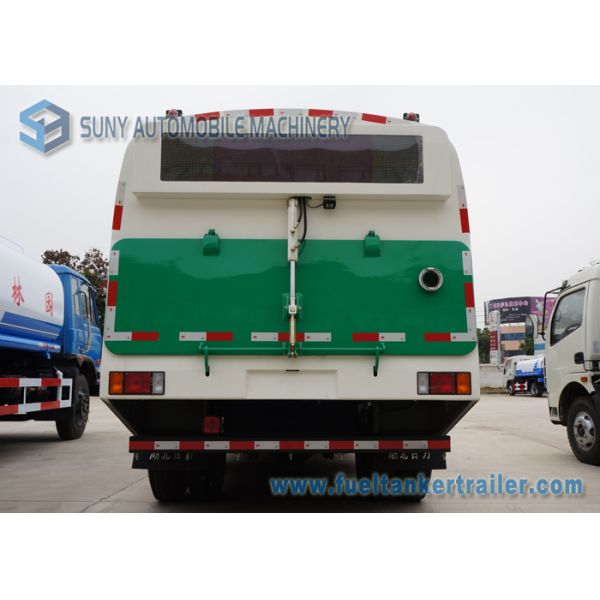

Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck
Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck
Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck
Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck
Specifications
Brand Name :
SUNY
Model Number :
QL11019MARY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 45000-50000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk, ro-ro, container
Type :
4 X 2 Dust Sunction Truck
G. V. W. ( kg ) :
7060
Wheelbase (mm) :
4475
Tire & Quantity :
8.25-20 & 6+1
Engine :
4HK1-TCG40
Maximum Power :
139kw/190hp
Dustbin Capacity (L) :
8000
Loading Capacity (kg) :
3500
Description

Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck

Product Description:

Pickup head is the key component of street vacuum sweeper,which is disigned to pick up paticles efficiently from road surface and send them to dust collection hopper smoothly. The particle removal perfomance of the pickup head is the most important index for a street vacuum sweeper.Many researches have been performed on estimating the particle removal performance of street sweeping and washing for controlling anbient total suspended particles bu experiments, which indicated that the street sweeping and washing process was effective at removing dust and silt from urban roads.

1. Product Parameter:

Products Technical Specification

Type

Dust suction truck

Vehicle Description

Overall dimensions(mm)

7320×2250×2800

G.V.W (kg)

7060

Curb weight(kg)

4200

Max speed (Km/h)

105

Engine Description

Engine model

4HK1-TCG40

Engine Type

4 cylinders, straight in-line, exhaust turbo charging system to improve engine power

Maximum power

139kw/190hp

Displacement (lit)

5193

Chassis Description

Chassis model

QL11019MARY

Wheel base(mm)

4475

F/R track base(mm)

1680/1650

F/R overhang(mm)

1110/1735

Approach/Departure angle(°)

24/15

Spring plate

8/10+6

Driving Type

4×2,left hand drive

Tyre&Quantity

8.25-20&6+1

Up-parts Description

Max sweeping width(mm)

3000

Sweep efficient

More than 98%

Sweep speed(Km/h)

5-20

Hydraulic pressure(Mpa)

12

Suction cap ground clearance in working(mm)

5-10

Dustbin capacity(m3)

8

Max operating capacity

75000 square meters per hour

The biggest diameter of suction granularity(mm)

Less than 50

Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck

Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck

Dust Sunction Isuzu Sanitation Truck , 6 Wheels 4 X 2 3500KG Road Cleaning Truck
