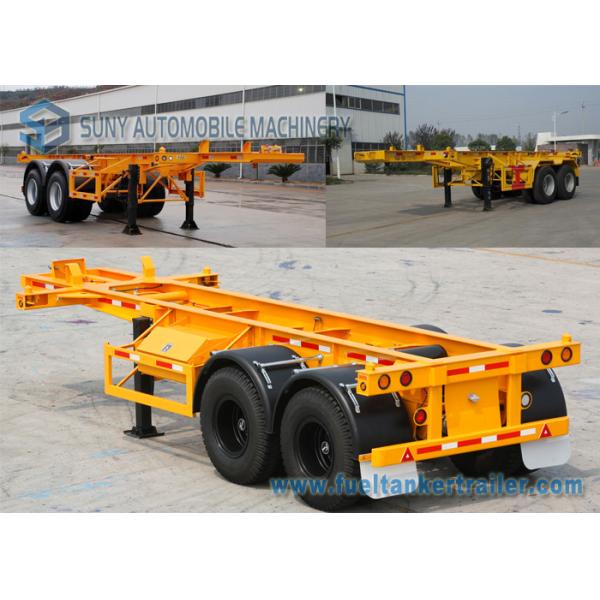

20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
Specifications
Brand Name :
SUNY
Model Number :
SY9400GJ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 6000 ~ 10000 / unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Unit / Month
Delivery Time :
10 - 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Material :
steel Q345
Trailer size :
20 ft / 7160 × 2490 × 1560 mm
Trailer Load Capacity :
25 T ~ 30 T
Trailer Tare Weight :
Approx . 3600 kg
King Pin :
JOST Brand , 50 # or 90 #
Container Twist Locks :
4 pieces
Tire specs :
12R22.5
Emergency Brake :
WABCO , 4M / 2S
Description

20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire

Optional Equipment:

1. 3 Axles Skeletal trailer / 4 Axles Container Trailer

2. BPW Axle , YORK Axle , etc.

3. Container Trailer Size 20 ft , 40 ft , 45 ft , 53 ft ,etc.

4. Load Capacity of Container Skeletal Semi Trailer : 20 T , 25 T , 30 T , 35 T , 40 T ,etc

5. Tire : Vacuum Tire , Radial Tires , Nylon Tire.

Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .

DIMENSIONS & WEIGHT

Vehicle Dimensions

7160 * 2490 * 1560 mm

Tare Weight

Approx. 3600 kg

Payload

25000 kg

SPECIFICATION

Chassis

Heavy duty and extra durability designed , Opting for high tensile steel Q345 .

Main beam height is 500 mm , Upper plate is 14 mm , lower plate is 16mm , middle is 8 mm.

Axle

2 axles

FUWA brand 13 T

Suspension

Mechanical with 8 - piece leaf spring

King Pin

2.0’’ or 3.5’’ traction pin (bolts type)

Landing Gear

19 T

Wheel Rim

9.0R22.5 stud steel rim 9 pieces

Tire

12R22.5 Tubeless Tire , include one spare tire , 9 pieces

Braking System

One units of WABCO , Four double and two single chamber

Electric

International standard 24 v circuit 7-pin ISO socket ; Tail lamp with turn signal ,

brake light & reflector , side lamp etc . One set 6-core standard Cable .

Light

LED brand ,

Front marker lamp front corner marker lamp is red , Reflector lamp is white

Side marker lamp Orange

Rear lamp Red

Turn signal lamp Orange

Container Twist Locks

12 pieces

Tools box

1 piece

Painting　

Sand blasting processing clean rust

1 coat of anticorrosive primer ,

2 coats of finish urethane paint

color at customer’s choose.

Packing

One container carry two units .
