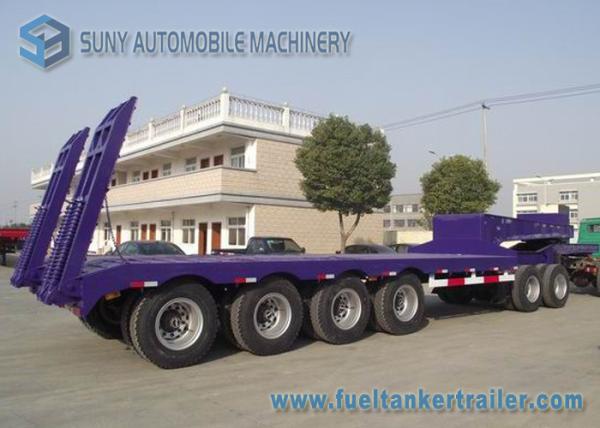

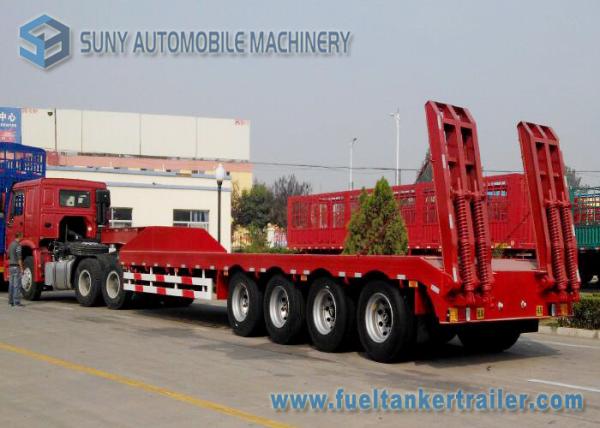

60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer
60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer
60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer
60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer
60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer
60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer
Specifications
Brand Name :
SUNY
Model Number :
SY9404DPB
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 12000 ~ 30000 / unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Unit / Month
Delivery Time :
10 - 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Trailer Suspension :
Reverse loading suspension
Semi Trailer Axles :
4 axles , FUWA Brand , 13T
Brake :
Without ABS system
Tire :
8.25R20 Triangle brand 16 pieces
Ladder :
A pair of common ladder
Tool box :
One piece
Trailer size :
13500 * 3000 * 2750 mm
Tare Weight :
14,000 kg
Payload :
60 T , 70 T , 80T
Description

60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer

Optional :

Loading capacity 50 T , 60 T , 70 T , 80 T

2 Axles , 3 Axles / FUWA Brand , BPW Brand , YORK Brand.

JOST leg , FUWA leg ,

Width can be extended 3500 mm

Gooseneck Semi Trailer

Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .

DIMENSIONS & WEIGHT

Overall dimensions (L×W×H)

13500 * 3000 * 2750 mm

Payload

60000 - 80000 kg

Tare Weight

14,000 kg

CHASSIS

Axles

4 axles

Brand Name : FUWA

King pin

2.0’’ or 3.5'' traction pin JOST brand

Suspension

Reverse loading suspension

Steel Spring

10 - pieces strenghed

Brake

KEMI brand Brake Chamber Six double and two single chamber( TKL brand )

Valve WABCO

Without ABS system

Electrical

Voltage 24 V

Wire 7 ways (7 wire harness)

Light color:

Front marker lamp : front corner marker lamp is red Reflector lamp is white

Side marker lamp : Orange

Rear lamp : Red

Turn signal lamp : Orange

Frame: (specs. and materials)

Main beam height is 500 mm ; Upper plate is 20 mm , lower plate is 20 mm ,middle is 10 mm .
25# channel steel ; Diamond Plate 5 mm diamond.

Wheel rim

6.0-20

Tire

8.25R20 Triangle brand 16 pieces (Spare Tire Carriers 2 pieces)

Ladder

A pair of common ladder

Other

Painting

According to the requirement of the buyer

Marking

According to the requirement of the buyer

Side Guard

According to the requirement of the buyer

Tool box

One piece

60 T Heavy Lowbed Flatbed Semi Trailer , 4 Axles Flatbed Car Trailer
