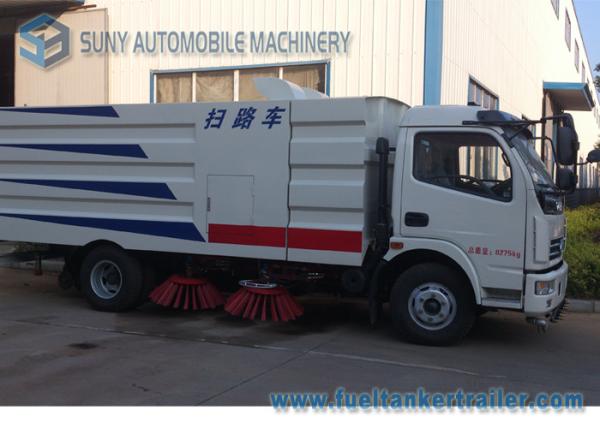

Donfeng 4 X 2 Road Sweeper Truck Vacuum Sweeper Truck 103kw 140hp 5M3
Donfeng 4 X 2 Road Sweeper Truck Vacuum Sweeper Truck 103kw 140hp 5M3
Donfeng 4 X 2 Road Sweeper Truck Vacuum Sweeper Truck 103kw 140hp 5M3
Donfeng 4 X 2 Road Sweeper Truck Vacuum Sweeper Truck 103kw 140hp 5M3
Donfeng 4 X 2 Road Sweeper Truck Vacuum Sweeper Truck 103kw 140hp 5M3
Donfeng 4 X 2 Road Sweeper Truck Vacuum Sweeper Truck 103kw 140hp 5M3
Specifications
Brand Name :
SUNY
Model Number :
DFA1080SJ12D3
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 35000-40000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk, ro-ro, container
Type :
4 X 2 Dust Sunction Truck
G. V. W. ( kg ) :
8275
Wheelbase (mm) :
3800
Tire & Quantity :
7.50-16 & 6+1
Engine :
YC4E140-42
Maximum Power :
103kw / 140hp
Dustbin Capacity (L) :
5000
Loading Capacity (kg) :
2500
Description

Donfeng 4 X 2 Vacuum Sweeper Truck 103kw 140hp 5M3 Road Sweeper

Product Description:

Generally, the particle suction process is implemented at a given pressure as street vacuum sweeper travels at a constant speed. Therefore, the fluid zone in the pickup head moves forward at a constant translational velocity, which is equivalent to the sweeper traveling speed.

1. Product Parameter

Products Technical Specification

Type

Dust suction truck

Vehicle Description

Overall dimensions(mm)

7160×2200×2750

G.V.W (kg)

8275

Curb weight(kg)

5900

Max speed (Km/h)

99

Engine Description

Engine model

YC4E140-42

Engine Type

4 cylinders, straight in-line, exhaust turbo charging system to improve engine power

Maximum power

103kw/140hp

Displacement (lit)

4260

Chassis Description

Chassis model

DFA1080SJ12D3

Wheel base(mm)

3800

F/R track base(mm)

1770/1586

F/R overhang(mm)

1100/2260

Approach/Departure angle(°)

24/8

Spring plate

8/10+7

Front / rear axle (T)

3.5/5

Driving Type

4×2,left hand drive

Tyre&Quantity

7.50-16&6+1

Up-parts Description

Max sweeping width(mm)

2800

Sweep efficient

More than 96%

Sweep speed(Km/h)

5-20

Hydraulic pressure(Mpa)

12

Suction cap ground clearance in working(mm)

5-10

Dustbin capacity(m3)

5

Max operating capacity

45000 square meters per hour

The biggest diameter of suction granularity(mm)

Less than 50
