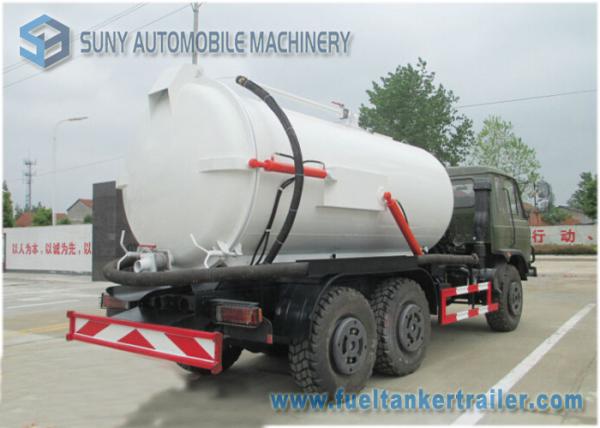

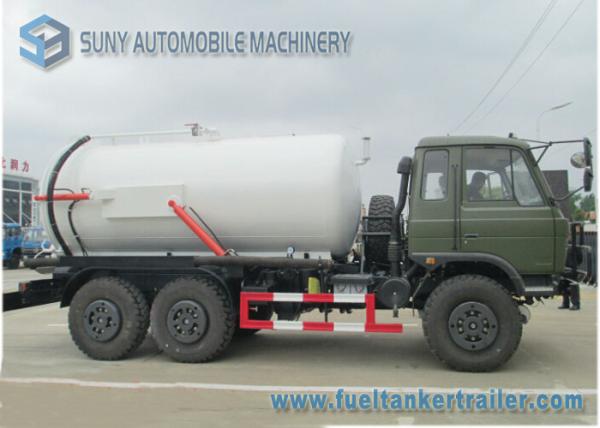

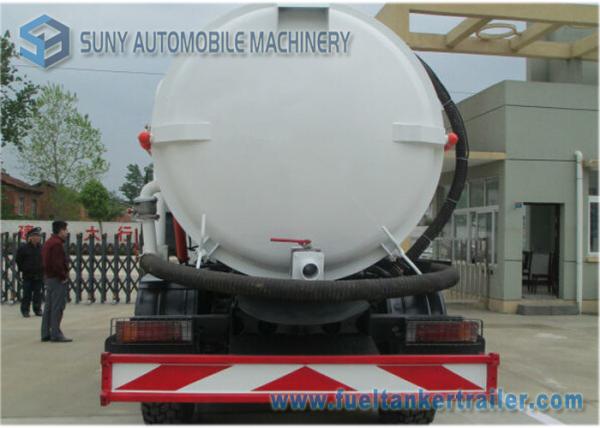

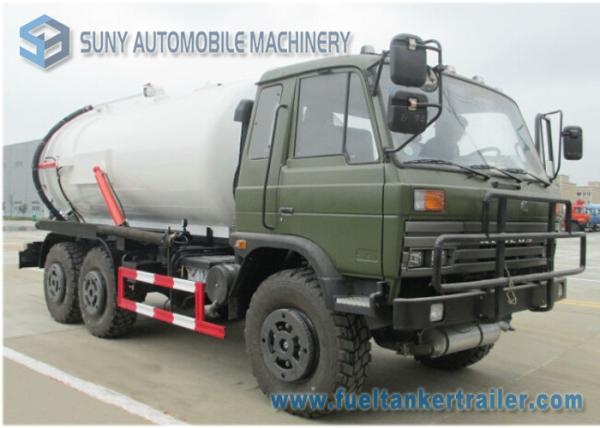

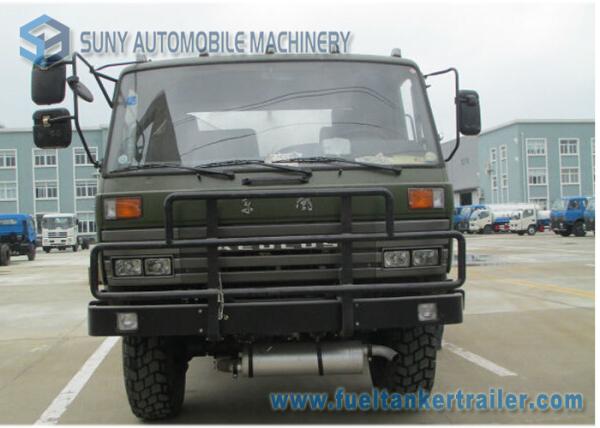

Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
Specifications
Brand Name :
SUNY
Model Number :
EQ2102
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 42000-58000 / Set
Supply Ability :
50 sets per month
Delivery Time :
25 days after receiving deposits
Packaging Details :
bulk,ro-ro,container
Tank capacity :
8000 L
Wheel base :
3475+1250
Tire specification :
12.5R20
Gear box :
9JS135
Drive type :
6×6
Engine :
EQ6BT5.9
working pressure :
8500 Pa
inlet diameter :
50 mm
Description

Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance

Description:

The sewage suction truck series are very suitable for sucking, salvaging loading and unloading the sewer sludge mud, dung, or sewage especially our new product- plastic-lined steel series pumping & shipping of petroleum chemical cesspool dangerous waste suction truck, is very good at sucking, salvaging loading and unloading the Corrosive waste. Our products enjoy quick and easy operation, wide usage and a long life. Suitable for large medium small towns’ sanitation, municipal departments.

Applications:

Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.

Competitive Advantage:

1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min

2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

4. The diesel engine ( air compressor unit ), providing compressed air.

Specifications:

Commodity

Dongfeng 6*6 all wheel off-road 8000Litres sewage suction truck

Chassis

EQ2102

Cubage (T)

7000 Liters to 8000 Liters

Vehicle

Overall dimension(length/width/height)mm

7800×2500×3000

G V W ( kg )

17180

Payload ( kg )

8000

Curb mass ( kg )

8955

Fuel Type

Diesel

Engine

Model

EQ6BT5.9

Exhaust/Power ( kw )

5900cc/118 kw

160HP

Manufacturer

DONGFENG MOTOR

Type

6-in-line water cool Turbo Charge engine

Chassis

Drive type

6×6

Wheelbase ( mm )

3475+1250

Gear box

9JS135 9Forwards, mechanical transmission

Clutch

Uniwafer, dry screw spring clutch

Tire specification

12.5R20

Air condition

with

suction system

suction pump

Single Stage Rotary Oil Seal Vacuum Pump

special parameter

Vertical suction height

≥8

working pressure

8500 Pa

rotation speed

500

suction speed

98 L/S

power

5.5 kw

inlet diameter

50 mm

filling time

less than 5 s

discharge time

Less Than 4 s

Dongfeng 6x6 Off-road 8000 Litres Vac Tank Truck High Performance
