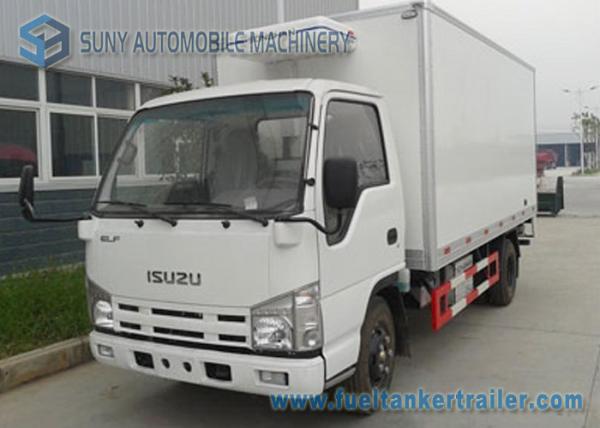

3 T ~ 5 T ISUZU 100p Refrigerator Van Truck ISUZU Engine 72 kw / 98 hp
3 T ~ 5 T ISUZU 100p Refrigerator Van Truck ISUZU Engine 72 kw / 98 hp
3 T ~ 5 T ISUZU 100p Refrigerator Van Truck ISUZU Engine 72 kw / 98 hp
3 T ~ 5 T ISUZU 100p Refrigerator Van Truck ISUZU Engine 72 kw / 98 hp
3 T ~ 5 T ISUZU 100p Refrigerator Van Truck ISUZU Engine 72 kw / 98 hp
3 T ~ 5 T ISUZU 100p Refrigerator Van Truck ISUZU Engine 72 kw / 98 hp
Specifications
Brand Name :
SUNY
Model Number :
QL1040
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 20,000 ~ 35,000 / Unit
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Cargo Body Size :
4000*2250*2200 mm
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness :
80mm
Door :
Single Rear Door , Optional Side Door
Temperature Range :
-18C to 0°C
Engine :
72kw / 98hp
Displacement (lit) :
2.771
Number of gears :
5 forward gears & 1 reverse
Brake System :
Oil braking
Tire :
7.00-15
Cabin :
ISUZU 100P Single row,With A/C
Description

3 T ~ 5 T ISUZU 100p Refrigerated Box Truck ISUZU Engine 72 kw / 98 hp

Box Volume 15 ~ 20 Cubic

4x2 ISUZU Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -18°C to 0°C
Total capacity: approx. 2000 KG ~ 3000 KG ~ Max .5000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional

Products Technical Specification
Brand-Series ISUZU
Product Name 4*2 Refrigerated truck
Fuel type Diesel
Emission Standard Euro 4
Cabin 100P Single row,With A/C
Chassis standard configuration
Chassis model QL1040
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 5995*2305*3390
Cargo body dimensions (L×W×H) 4000*2250*2200
Wheel base 3360
Front / Rear track base 1385 / 1425
Front / Rear overhang 1015 / 1525
Weight data (kg) G.V.W 4475
Curb weight (chassis) 3145
Max payload 4000
Whole vehicle
main performance		 Max. speed (km/h) 98
Max. slope of climb (%) 30
Engine Model 4JB1CN
Maximum power 72kw / 98hp
Number of cylinders 4
Displacement (lit) 2.771
Engine Manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd.
Gear box Number of gears 5 forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) 2 / 3
Suspension Front / Rear Spring plate 8/6+5,4/3+2
Steering Wheel left/right hand drive LHD
Brake system Service brake Oil braking
Electric device Voltage (V) 24
Tire & Quantity 7.00-15 & 6+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 4000*2250*2200
Cargo Body Material FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems Equipped with DT-230
Temperature Range Normal temperature,refrigeration temperature reached -18°C
Others

Stainless Steel door frame,Stainless steel corrugated floor,

Mark lamp at the four (4) corners f the body,

Room lamp will be provided inside the cabin.

3 T ~ 5 T ISUZU 100p Refrigerator Van Truck ISUZU Engine 72 kw / 98 hp
