Single Phase Off Grid Inverters Series 3.5kW 5.5kW 10kW For Optimal Load Management
Single Phase Off Grid Inverters Series 3.5kW 5.5kW 10kW For Optimal Load Management
Single Phase Off Grid Inverters Series 3.5kW 5.5kW 10kW For Optimal Load Management
Single Phase Off Grid Inverters Series 3.5kW 5.5kW 10kW For Optimal Load Management
Specifications
Brand Name :
DS
Model Number :
DS-D-SAL
Certification :
EN 61000-6-1/3 / IEC 62109-1/ IEC 62109-2 / UL1741 / FCC
Place of Origin :
China
MOQ :
8 set
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
590*365*200/612*424*208
Nominal AC Apparent Power :
SAL 3.6K_EU / SAL 3K_US: 3600 VA
Max. Output Apparent Power :
SAL 3.6K_EU / SAL 3K_US: 7200 VA(10s)
MPPT Voltage Range :
SAL 3.6K_EU / SAL 3K_US: 120~450 V
Max. Efficiency :
All models: 97.0%
MPPT Efficiency :
All models: >99%
Battery Chemistry :
All models: LFP/Lead-Acid
IP Rating :
All models: IP21
Operating Temperature Range :
All models: -20°C to 60°C
Description

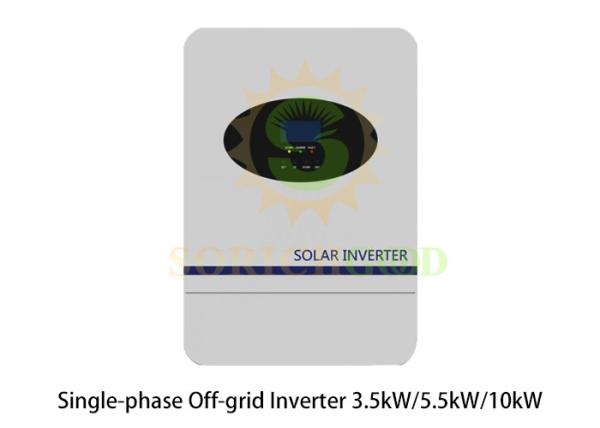

D Single-phase Off-grid Inverters Series 3.5kW/5.5kW/10kW for Optimal Load Management

Product Description

The D Single-phase Off-grid Inverter Series (3.5kW/5.5kW/10kW) is a high-efficiency device specifically designed to optimize energy conversion and load management. This series utilizes DSP digital control mode to ensure efficient AC/DC conversion, reducing energy losses. Additionally, the intelligent load management feature allows for load identification and distribution, optimizing power supply and protecting critical equipment. The inverter also offers a wide input voltage range, compatible with different battery types and voltages, enhancing system flexibility and compatibility.

Total 8 Model

Technicle Specifications
Model SAL3.6K_EU SAL3K_US SAL5.6K_EU SAL5K_US
Battery
Battery Chemistry LFP/Lead-Acid
Nominal Voltage (V) 24 48
Max.Operating Current (A) 80 100
Charing Current (A) 60 60
PV Input
Max.PV Input Power (W) 4000 6000
Max.PV Input Voltage (V) 500
MPPT Voltage Range (V) 120~450
Start-up Voltage (V) 150
Number of MPPT Trackers/Strings per MPPT Trackers 1/1
Max.PV Input Current (A) 15 22
AC Output(Off-grid)
Nominal AC Apparent Power (VA) 3600 3600 5600 5600
Max.Output Apparent Power (VA) 7200,10s 11000,10s
Nominal AC Voltage (V) 230 120 230 120
Nominal Grid Frequency(Hz) 50/60
Max.Output Current (A) 15 30 24 46
THDi <3%
Efficiency
Max.Efficiency 97.0%
MPPT Efficiency >99%

Protection
Anti-islanding Protection Supported
Reverse Connection Protection Supported
DC Switch Supported
Insulation Impedance Supported
AC Overcurrent/Overvoltage Protect ion Supported
AC Short Circuit protection Supported
Surge Protection DC TYPE IⅡ,AC TYPE Ⅱ
General
Dimension W*H*D(mm) 460*285*113 485*335*124 485*345*124
Packing Dimension L*W*D(mm) 590*365*200 612*424*208
Weight (Kg) 10.5 14 16
Operating Temperature(℃) -20~60
Relative Humidity 0~95%,no condensation
Permissible Altitude(m) 4000(>2000m derating)
IP Rating IP21
Noize (dB) <30
Communication Interface RS485/CAN,WIFI/4G/LAN,Bluethooth(optional)
Display LCD
Safety EMC/Certification EN 61000-6-1/3,IEC62109-1,IEC62109-2,UL1741/FCC

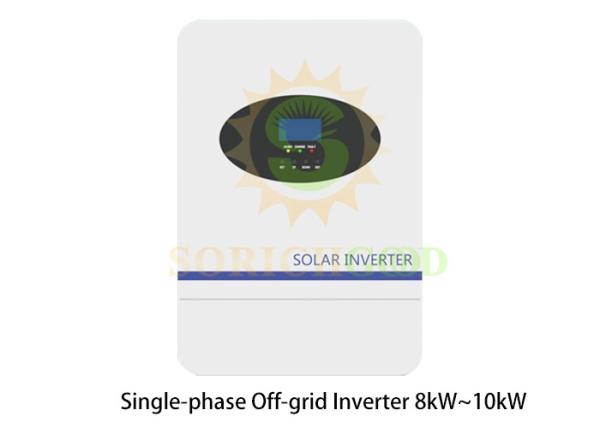

Technicle Specifications

Model SAL 8K_EU SAL8K_US SAL 10K_EU SAL10K_US
Battery
Battery Chemistry LFP/Lead-Acid
Nominal Voltage(V) 48 48
Max.Operating Current(A) 180 200
Charing Current(A) 100 120
PVInput
Max.PV Input Power (W) 11000
Max.PV Input Voltage (V) 500
MPPT Voltage Range (V) 120~450
Start-up Voltage(V) 125
Number of MPPT Trackers/Strings per MPPT Trackers 2/2
Max.PV Input Current (A) 160 200
AC Output (Off-grid)
Nominal AC Apparent Power (VA) 8000 8000 10000 10000
Max.Output Apparent Power (VA) 16000,10s 20000,10s
Nominal AC Voltage (V) 230 120 230 120
Nominal Grid Frequency(Hz) 50/60
Max.Output Current(A) 34 66 44 83
THD <3%
Efficiengy
Max.Efficiency 97.0%
MPPT Efficiency >99%

Protection
Anti-islanding Protection Supported
Reverse Connection Protection Supported
DC Switch Supported
Insulation Impedance Supported
AC Overcurrent/Overvoltage Protecti on Supported
AC Short Circuit protecton Supported
Surge Protection DC TYPE IⅡ,AC TYPE IⅡ
Genera
Dimension W*H*D(mm) 645*450*133
Packing Dimension L*W*D(mm) 802*567*240
Weight (Kg) 28
Operating Temperature(℃) -20-60
Relative Humidity 0~95%,no condensation
Permissible Atitude(m) 4000(>2000m derating)
IP Rating IP21
Noize(dB) <30
Communication Interface RS485/CAN,WF/4G/LAN,Bluethooth(optional)
Display LCD
Safety EMC/Certificaton EN 61000-6-1/3,IEC62109-1,IEC62109-2,UL1741/FCC

Application

The D Single-phase Off-grid Inverter is widely used in standalone power systems for residential, agricultural, commercial, and remote areas. Its high-efficiency energy conversion and intelligent load management make it an ideal choice for off-grid solar power systems, backup power solutions, and critical applications where stable and reliable power supply is essential. This product is particularly valuable in areas with scarce energy resources or limited grid access, offering unmatched adaptability and reliability.

Shipping Methods

Supports global air and sea shipping
