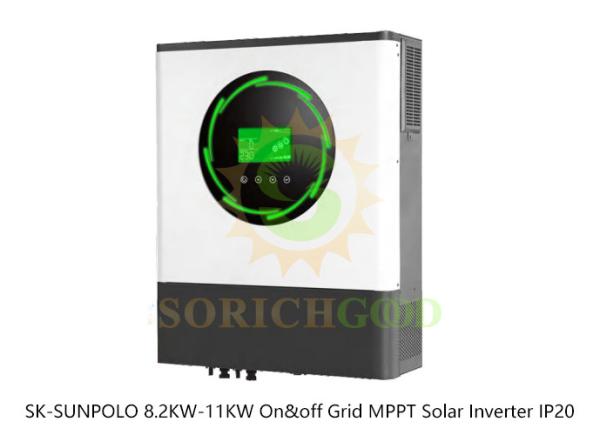

Highly And Flexible SUNPOLO 8.2KW 11KW Hybrid Inverters For Residential Commercial Industrial
Highly And Flexible SUNPOLO 8.2KW 11KW Hybrid Inverters For Residential Commercial Industrial
Highly And Flexible SUNPOLO 8.2KW 11KW Hybrid Inverters For Residential Commercial Industrial
Highly And Flexible SUNPOLO 8.2KW 11KW Hybrid Inverters For Residential Commercial Industrial
Specifications
Brand Name :
TP
Model Number :
SI6
Certification :
CE
Place of Origin :
China
MOQ :
10 units
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Dual MPPT Inverter :
Efficient solar energy management with two MPPT trackers
Real Hybrid Operation :
Capable of working in grid-tied, off-grid, or hybrid modes
High Conversion Efficiency :
Reaches up to 96% efficiency in DC to AC conversion
Robust Solar Input :
Supports up to 12,000W (8.2KW model) and 11,000W (11KW model) solar input power
Battery Independence :
Operates with or without a battery, offering flexible energy storage options
User-Friendly Interface :
Features an intuitive touch LCD screen for easy monitoring and configuration
Description

Highly and Flexible SUNPOLO 8.2KW SUNPOLO 11KW Hybrid Inverters for Residential Commercial and Industrial

Highly And Flexible SUNPOLO 8.2KW 11KW Hybrid Inverters For Residential Commercial Industrial

Product Description:

The SUNPOLO 8.2KW & SUNPOLO 11KW Hybrid Inverter is a highly versatile energy solution designed for both on-grid and off-grid applications. Equipped with dual MPPT trackers, it allows optimal performance with a PV input range of 90-450VDC. This inverter offers seamless switching between grid-tie and hybrid operations, ensuring efficient energy conversion with a peak efficiency of up to 96%. Its robust design supports a maximum solar input power of up to 12,000W (for the 8.2KW model) and 11,000W (for the 11KW model), making it perfect for larger installations. The built-in BMS (Battery Management System) ensures compatibility with various battery types, including Lead Acid, Lithium-Ion, and more, providing reliable energy storage and management.

MODEL SUNPOL⁰8.2KW SUNPOLo11KW
Basical information
Rated AC Output Power 8200W 11000W
Grid-TieOperation
PVInput (DC)
NominalDC VoltMax DC Voltage 360VDC/450VDC
Start-up Voltage/Initial Feeding Voltage 80VDC 120VDC
MPPT Voltage Range 90-450VDC
No.of MPPT Tracker/Max.Input Current 27A*2(MAX40A)
Max.PV Input Power 12000W(6000W*2) 11000W(5500W*2)
Grid Output (AC)
Nominal Output Volt 220Vac/230Vac/240Vac,Single Phase
Output Voltage Range 184V-265Vac or 195-253V(Selectable)
NominalOutput Current 40A(Max.2nd Output Current) 47.8A
Power Factor >0.9
Efficiency
Max.Conversion Efficiency(DC/AC) 96%
Off-Grid Operation
ACInput (AC)
AC Start-up Voltage/Auto Restart Volt. 120Vac-140Vac/180Vac
Acceptable Input Voltage Range 90-280Vac or 170-280Vac
Max.AC Input Current 60A 60A
Battery Mode Output(AC)
Nominal Output Volt 220Vac/230Vac/240Vac
Waveform Pure sine wave
Efficiency(DC to AC) 93%

Battery &Charger
Battery Type Supported Lead Acid/NRLA/AGM/Deep Cycle/Gel/Flooded/Tubular/Lithium-lon
Nominal Battery Voltage 48Vdo
Max Solar Charge Current 150A 150A
MaxAC Charge Current 150A 150A
MaxTotal Charge Current 150A 150A
Genera
Physica
ProductsDimension,DXWXH(mm) 552*422*152 552*422*152
Product Net Weight(kgs) 18.8 19.1
Product GrossWeight(kgs) 20.9 21.3
Packing Dimension,D XWXH(mm) 700mm*510*mm*232mm,1PC/CTN 696mm*567mm*243mm,1PC/CTN
Parallel functions Yes,MAX.6pcs Yes,MAX.6pcs
Communication Interface RS232,USB,WIFI RS232,USB,WFI
Environment
Humidity 5%to 95%Relatve Humidity(Non-condensing)
Operating Temperature -10℃ to 50℃
Storage Temperature -15℃ to 60℃

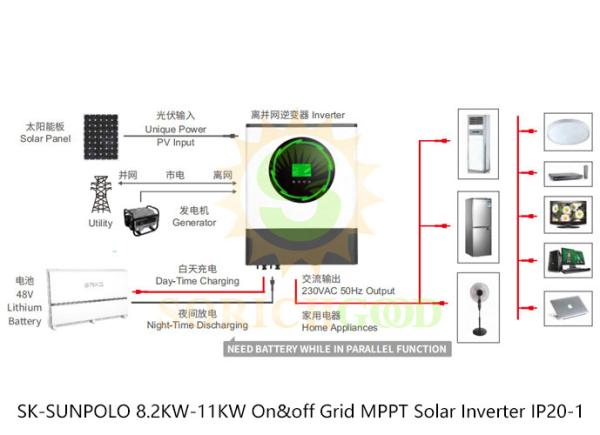

Application:

This inverter is ideal for residential, commercial, and industrial applications where high power and flexibility are required. With its ability to work with or without batteries, it can be deployed in areas with unstable grids, providing backup power during outages. Its grid-tied mode offers the ability to feed excess solar power back to the grid, making it a suitable option for energy-conscious users aiming to reduce energy costs and carbon footprint.

Shipping Methods

Supports global air and sea shipping.
