Solar Hybrid Inverter System For Residential And Small Commercial Energy Needs
Solar Hybrid Inverter System For Residential And Small Commercial Energy Needs
Solar Hybrid Inverter System For Residential And Small Commercial Energy Needs
Solar Hybrid Inverter System For Residential And Small Commercial Energy Needs
Specifications
Brand Name :
TP
Model Number :
SE4.2
Certification :
CE
Place of Origin :
China
MOQ :
20 units
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Max. PV Power :
4.2KVA Model: 5000W 6.2KVA Model: 6500W
Rated Power :
4.2KVA Model: 4200VA 6.2KVA Model: 6200VA
Battery Voltage :
4.2KVA Model: 24VDC 6.2KVA Model: 48VDC
Surge Power :
4.2KVA Model: 8400VA 6.2KVA Model: 12400VA
Max. Solar Charge Current :
120A (Both models)
MPPT Range @ Operating Voltage :
90-450VDC (Both models)
Description

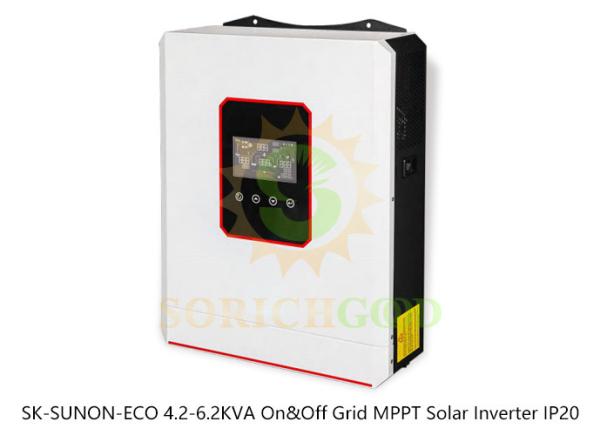

The SUNON-ECO Hybrid Inverters for Residential and Small Commercial Energy Needs

Solar Hybrid Inverter System For Residential And Small Commercial Energy Needs

Product Description:

The SUNON-ECO series is a high-performance hybrid inverter designed for off-grid and grid-tied solar systems. Equipped with a built-in 120A MPPT solar charge controller, it offers efficient energy conversion with a peak efficiency of 98%. The inverter supports pure sine wave output, ensuring compatibility with sensitive electronics and home appliances. With its robust battery management system, the SUNON-ECO inverters provide seamless operation with or without batteries, making it suitable for various power needs. Available in 4.2KVA and 6.2KVA models, the SUNON-ECO series is ideal for residential and small commercial applications requiring reliable and efficient power solutions.

NEW MODEL SUNON-EC04.2KVA SUNON-ECO 6.2KVA
Max.PV Power 5000W 6500W
Rated Power 4200VA 6200VA
Max.Charge Current 120A 120A
BATTERY
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 33VDC 63VDC
Battery Type Compatible with GEL,AGM,Llithium Battery
GRID INPUT
Voitage 230 VAC
Selectable Voltage Range 170-280VAC(ForPersonal Computers);90-280 VAC(For Home Appliances)
Frequency Range 50 Hz/60 Hz(Auto sensing)
Efficiency(AC Mode) 98%
AC OUTPUT
AC Voltage Regulation (Batt.Mode) 230 VAC±5%
Surge Power 8400VA 12400VA
Efficiency(Peak) 90%~94%
Transfer Time 10 ms(For Personal Computers);20 ms(For Home Appliances)
Waveform Pure sine mave
DUALLOADS AC OUTPUT
Full Load 4200VA 6200VA
Maximum Main Load 4200VA 6200VA
Maximum Second Load (Battery Mode) 1200W 2100W
Main Load Cut Off Voltage 22VCD 44VCD
Main Load Retum Voltage 27VCD 54VCD

SOLAR CHARGER&AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Power 5000W 6500W
Max.input Current 27A 27A
MPPT Range @Operating Voltage 90~450VDC 90~450VDC
Maximum PVArray Open Circuit Voltage 500 VDC
Maximum Solar Charge Current 120A 120A
Maximum AC Charge Curent 100A 100A
Maximum Charge Curent 120A 120A
PHYSICAL
Packing Dimension,DXWXH(mm) 543*394*204 543*394*204
Net Weight (kgs) 9.8 10.5
Communication Interface USB/RS232WIFIVGPRS
OPERATING ENVIRONMENT
Humidity 5%to 95%Relative Humidity(Non-condensing)
Operating Temperature -10℃ to 50℃
Storage Temperature -15℃ to 60℃
Product specifications are subject to change without further notice.

Application:

The SUNON-ECO series is ideal for residential and small commercial applications where consistent and reliable power is required. It supports both off-grid and grid-tied setups, offering flexibility in energy management. With dual AC outputs, this inverter can feed power back to the grid, making it suitable for homes, offices, and small businesses. It also supports a wide PV input voltage range (90V–450VDC) and integrates a smart battery charge controller, ensuring optimal performance for solar energy storage systems.

Shipping Methods

Supports global air and sea shipping.
