590W 210R N-TopCon Monocrystalline Silicon Panels For Solar Applications
590W 210R N-TopCon Monocrystalline Silicon Panels For Solar Applications
Specifications
Brand Name :
LS
Model Number :
NM590
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Power Range :
590W - 625W
Maximum Efficiency :
23.14%
Nominal Maximum Power (Pmax) :
590W - 625W
Maximum Power Voltage (Vmp) :
39.92V - 41.20V
Maximum Power Current (Imp) :
14.78A - 15.40A
Open Circuit Voltage (Voc) :
47.90V - 48.83V
Short Circuit Current (Isc) :
15.62A - 16.23A
Nominal Maximum Fuse Current :
30A
Description

590W 210R N-TopCon Monocrystalline Silicon Panels The Perfect Choice for Solar Applications

590W 210R N-TopCon Monocrystalline Silicon Panels For Solar Applications

Product Description:

The 210R N-TopCon Monofacial Module is a cutting-edge solar panel designed to deliver exceptional performance and efficiency. With a power range of 590W to 625W, this module is equipped with 210R N-TopCon Mono Cells, arranged in a 132pcs (6×22) configuration, providing a maximum efficiency of up to 23.14%. The module's dimensions are 2382×1134×35mm, and it weighs 32.8kg (35mm) or 30.8kg (30mm), making it both robust and relatively lightweight for easy installation.

This module features a 3.2mm highly transparent tempered glass front with an anti-reflective coating, enhancing light absorption and durability. The anodized aluminum alloy frame ensures long-term structural integrity, while the IP68-rated junction box provides superior protection against water and dust. The module also includes 4mm² cables, available in portrait (400mm) or landscape (1400mm) orientations, which can be customized to meet specific installation needs. Additionally, it is fitted with three diodes for optimized performance in various environmental conditions.

The 210R N-TopCon Monofacial Module is designed for high-performance applications, capable of withstanding front and rear pressures of 5400pa and 2400pa, respectively. It is compatible with MC4 connectors and can be efficiently packed for shipment, with 31 pieces per pallet (35mm) or 36 pieces per pallet (30mm), and up to 648 pieces per 40' HQ container.

Electrical Performance Parameters |STC
Model Type 590C(HPM)595C/HPM)600CHPM)605C(HPM)610C(HPM)615C/HPM)620C(HPM)625C(HPM)
66(210R)66(210R) 66(210B)66(210R)66(210R)66(210R)66(210R)66(210R)
Nominal Max.Power Pmax(W) 590 595 600 605 610 615 620 625
Max.Power Voltage Vmp(V) 39.92 40.05 40.17 40,30 40.43 40.55 40.69 40.83
Max.Power Current Imp(A) 14.78 14.86 14.94 15.02 15.09 15.17 15.24 15.31
Open Circuit Voltage Voc(V) 47.90 48.04 48.17 48.30 48.44 48.57 48.70 48.83
ShortCircuit Current lsc(A) 15.62 15.71 15.79 15,88 15.97 16.06 16.14 16.23
Module Efficiency (%) 21.84 22.03 22.21 22.40 22.58 22.77 22.95 23.14
Power Output Tolerance (W) 0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,AirMass AM1.5.
*Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Mode Type 590C(HPM)595C(HPM)600C(HPM)605CHPM)610C(HPM)615C(HPM)620C(HPM)625C(HPM)
66(210R)66(210R)66(210R)66(210R)66(210R)66(210R)66(210R)66(210R)
Nominal Max.Power Pmax(W) 444 448 452 456 460 464 468 472
Max.Power Voltage Vmp(V) 37.28 37.43 37.58 37.75 37.90 38.07 38.24 38.39
Max.Power Current Imp(A) 11.91 11.97 12.03 12.08 12.14 12.19 12.24 12.30
Open Circuit Voltage Voc(V) 45,45 45.58 45.71 45.83 45.96 46.09 46.22 46.35
Short Circuit Current lsc(A) 12.60 12.67 12.75 12.82 12.89 12.97 13.04 13.12
NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
*Power measurement tolerance ±3%.
Structure Performance
SolarCell Type 210R N-TopCon Mono Cell (Half Cell)
Solar Cell Arrangement 132pcs(6×22)

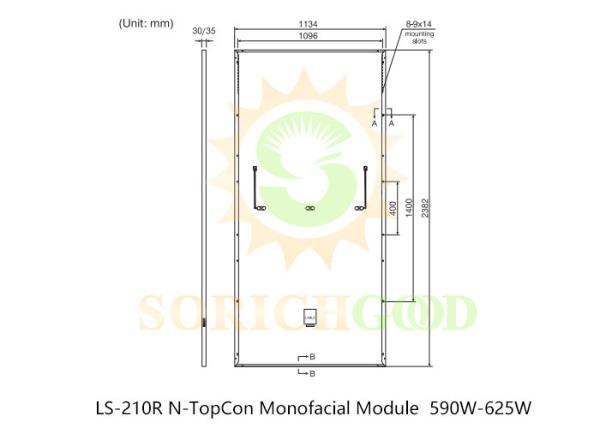

Module Dimension 2382×1134×35mm/30mm
Weight 32.8kg(35mm)/30.8kg(30mm)
Front Glass 3.2mm,highly transparent tempered glass
with ant-reflective coating
Back Sheet White
Frame Anodized Aluminum Alloy
Junction Box IP68 rated
Cable 4mm²,portrait
Length can be customized
Diode Quantity 3 pcs
Front side/Rearside 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 558pcs(35mm)/648pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient (Isc) +0.043%
Temperature Coefficient (Voc) -0.25%
Temperature Coefficient (Pmax) -0.30%

Maximum Parameters
Working Temperature 40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 30A

Application:

This module is ideal for large-scale commercial and utility-scale solar power plants where maximum power output and efficiency are critical. It is designed to perform in various environmental conditions, making it suitable for use in both high-temperature and low-light environments. Its high power output and robust design also make it an excellent choice for installations in areas with extreme weather conditions, ensuring reliable energy production over the module's lifespan.

Shipping Methods:

Supports global air and sea shipping.
