570W 182 N-TopCon Bifacial Module 72S High Performance Mono PV Solar Panels
570W 182 N-TopCon Bifacial Module 72S High Performance Mono PV Solar Panels
Specifications
Brand Name :
LS
Model Number :
NB570
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Power Range :
570W ~ 595W
Maximum Efficiency :
23.03%
Temperature Coefficient (Pmax) :
-0.30%
Module Dimensions :
2278×1134×30/35mm
Weight :
32.3kg (35mm) / 31.4kg (30mm)
Junction Box :
IP68 rated
Operating Temperature Range :
-40℃ ~ +85℃
Maximum System Voltage :
1500V DC
Description

570W 182 N-TopCon Bifacial Module 72S High-Performance Monocrystalline Silicon Panels

570W 182 N-TopCon Bifacial Module 72S High Performance Mono PV Solar Panels

Product Description:

The 182 N-TopCon Bifacial Module 72S delivers exceptional power output, ranging from 570W to 595W, with an impressive module efficiency of up to 23.03%. This module is built using advanced 183.75R N-TopCon Mono Cells in a 144-cell (6x24) configuration, ensuring high performance and durability. The front glass is a 2.0mm highly transparent tempered glass with an anti-reflective coating, providing enhanced energy conversion efficiency. The anodized aluminum alloy frame adds structural integrity, while the IP68-rated junction box guarantees protection against environmental elements.

Max.Power Current Imp(A) 13.43 13.50 13.57 13.64 13.71 13.78
Open Circuit Voltage Voc(V) 51.03 51.23 51.43 51.63 51.83 52.03
Short Circuit Current Isc(A) 14.21 14.27 14.33 14.39 14.45 14.51
Module Efficiency (%) 22.07 22.26 22.45 22.65 22.84 23.03
Power Output Tolerance (W) 0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature25℃,Air Mass AM1.5.
'Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type 570CHBD)
72S(182)		 575C(HBD)
72S(182)		 580C(HBD
72S(182)		 585C(HBD
72S(182)		 590C(HBD)
72S(182)		 595C(HBD)
72S(182)
Nominal Max.Power Pmax(W) 429 433 437 441 445 449
Max.Power Voltage Vmp(V) 39.87 40.02 40.17 40.32 40.46 40.60
Max.Power Current Imp(A) 10.76 10.82 10.88 10.94 11.00 11.06
Open Circuit Voltage Voc(V) 48.47 48.66 48.85 49.04 4,923 49.42
Short Circuit Current lsc(A) 11.46 11.51 11.56 11.61 11.66 11.71
*NMOT:Iradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
Structure Performance
Solar Cell Type 183.75R N-TopCon Mono Cell(Half Cell)
Solar Cell Arrangement 144pcs(6×24)

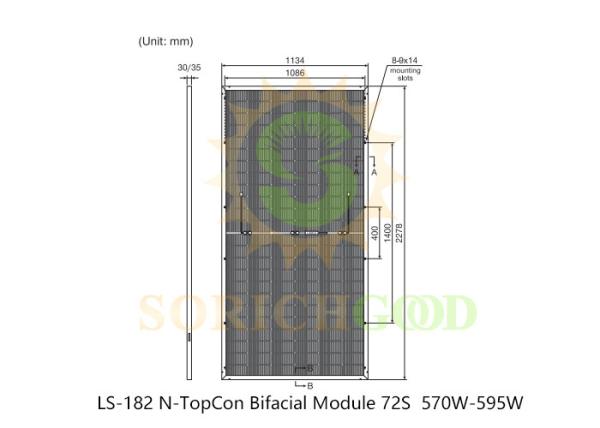

Module Dimension 2278×1134×35mm/30mm
Weight 32.3kg(35mm)/31.4kg(30mm)
Front Glass 2.0mm,highly transparent tempered glass
with anti-reflective coating
Frame Anodized Aluminum Alloy
Junction Box IP68 rated
Cable 4mm²,portrait 200mm,landscape 1400mm(+
1400mm-
Length canbe customized
Diode Quantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 620pcs(35mm)/720pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient(Isc) +0.043%
Temperature Coefficient (Voc) -0.25%
Temperature Coefficient(Pmax) -0.30%

Maximum Parameters
Working Temperature -40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 30A

Application:

This high-efficiency module is ideal for large-scale utility projects, commercial rooftop installations, and solar farms where maximizing energy output is crucial. Its bifacial design captures sunlight from both sides, making it particularly effective in environments with high albedo surfaces such as snow or sand. The robust construction and advanced cell technology ensure reliable performance in a wide range of climatic conditions, including high temperatures and heavy snow loads.

Shipping Methods:

Supports global air and sea shipping.
