525W Powerful Stylish Monocrystalline Silicon Panels For Residential And Commercial
525W Powerful Stylish Monocrystalline Silicon Panels For Residential And Commercial
Specifications
Brand Name :
LS
Model Number :
PB525
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Nominal Max. Power (Pmax) :
525W~545W
Maximum Efficiency :
21.1%
Power Output Tolerance :
0W ~ +5W
Open Circuit Voltage (Voc) :
49.98V~50.78V
Short Circuit Current (Isc) :
13.54A~13.74A
Max. Power Voltage (Vmp) :
40.82V~41.44V
Max. Power Current (Imp) :
12.87A~13.74A
Module Efficiency (NMOT) :
19.5%~20.0%
Description

525W Powerful and Stylish Monocrystalline Silicon Panels for Residential and Commercial

525W Powerful Stylish Monocrystalline Silicon Panels For Residential And Commercial

Product Description

The 182 Pure Black P-type Monofacial Module offers a power range of 525W to 545W, making it a highly efficient choice for residential and commercial solar projects. This module is equipped with advanced P-type monocrystalline cells, providing an efficiency of up to 21.1%. The Pure Black aesthetic, combined with high performance, ensures that the module not only meets energy needs but also complements modern architectural designs.

Built with a robust anodized aluminum alloy frame in black and an IP68 rated junction box, this module is designed to withstand harsh weather conditions, ensuring long-term durability and reliability. The module's 3.2mm highly transparent tempered glass with anti-reflective coating maximizes sunlight absorption, further enhancing its energy output.

ElectricalPerformance Parameters |STC
Model Type 525D(BPM)
72(182)		 530D(BPM)
72(182)		 5350(BPM)
72(182		 5400(BPM)
72(182)		 545D(BPM)
72(182)
NominalMax.Power Pmax0W0 525 530 535 540 545
Max.Power Voltage Vmp(V) 40.82 41.04 41.24 41.44 41.64
Max.Power Current Imp(A) 12.87 12.92 12.98 13.04 13.09
Open Circuit Voltage Voc(V) 49.98 50.18 50.38 50.58 50.78
ShortCircuitCurrent sc(A) 1,354 13.59 13.64 1,369 1,374
Module Efficiengy (%) 20.32 20.52 20.71 20.90 21.10
Power Output Tolerance W) 0~+5W
·STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5.
*Powermeasurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Mode Type 525D(BPM)
72(182)		 530D(BPM)
72(182)		 535D(BPM)
72(182)		 540D(BPM)
72(182)		 545D(BPM)
72(182)
NominalMax.Power Pmax(W) 390 395 400 405 410
Max.PowerVoltage Vmp(V 37.84 38.04 38.24 38.44 38.64
Max.Power Current mp(A) 10.31 10.39 10.47 10.54 10.62
Open CircuitVoltage Voo(V) 47.48 47.68 47.88 48.08 48.28
Short Circuit Current sc(A) 1,092 10.97 11.02 11.07 11.12
·NMOT:Iradiance 800W/m²,Cell Temperature 20°℃,Wind Speed 1m/s.
·Power measurement tolerance ±3%.
Structure Performance
Solar Cel Type 182mm Mono-crystalline (Half Cell)
Solar Cell Arrangement 144pcs(6×24)

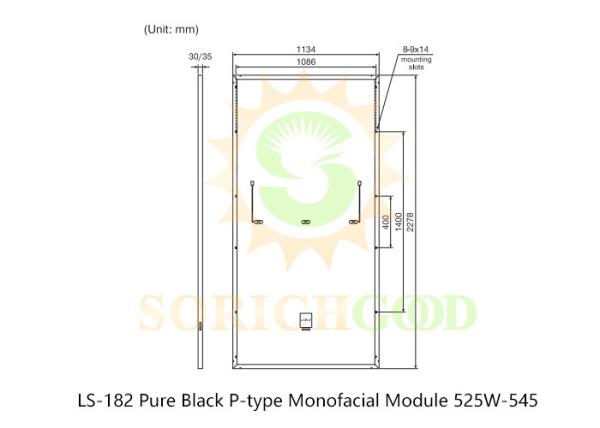

Module Dimension 2278×1134×35mm/30mm
Weight 28.0kg(35mm)/26.3kg(30mm)
Front Glass 3.2mm,highly transparent tempered glass
with antreflective coating
Back Sheet Black
Frame Anodized Aluminum Alloy (Black)
Junction Box IP68 rated
Cable 400mn(+)londc
4mm²,ponrait200mm(-j,lanascape
Length can be customized		 1400mm(t)
1400mm-
Diode Quantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 620pcs(35mm)/720pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient (lsc) +0.048%
Temperature Coefficlent (Voc) -0.26%
Temperature Coefficient (Pmax) -0.34%

Maximum Parameters
Working Temperature 40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 25A

Application

This module is ideal for installations where both performance and aesthetics are critical. It is particularly suitable for residential rooftops, commercial buildings, and urban environments where a sleek, all-black appearance is desired. Additionally, the module's high efficiency and power output make it an excellent choice for projects with limited space but high energy requirements.

Shipping Methods

Supports global air and sea shipping.
