515W Monocrystalline Silicon Panels For Low Light Energy Production
515W Monocrystalline Silicon Panels For Low Light Energy Production
Specifications
Brand Name :
LS
Model Number :
NB515
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
Per Pallet: 31pcs(35mm)/36pcs(30mm) Per Container (40’HQ): 682pcs(35mm)/792pcs(30mm)
Power Range :
515W - 530W
Power Output Tolerance :
0W ~ +5W
Maximum Efficiency :
22.32%
Nominal Module Operating Temperature :
44±2℃
Temperature Coefficient (Isc) :
+0.043%/℃
Temperature Coefficient (Voc) :
-0.25%/℃
Temperature Coefficient (Pmax) :
-0.30%/℃
Module Dimension :
2094x1134x35mm/30mm
Description

515W 22.32% Maximum Efficiency Monocrystalline Silicon Panels for Low-Light Energy Production

515W Monocrystalline Silicon Panels For Low Light Energy Production

Product Description:

The 182 N-TopCon Bifacial Module (515W-530W) is a top-tier solar panel that boasts a power output range of 515W to 530W, with a power output tolerance of 0W to +5W. This module is designed for high efficiency, with a maximum efficiency of 22.32%, ensuring excellent energy production even under low-light conditions. It utilizes advanced N-TopCon Mono Cell technology with 132 cells arranged in a 6x22 layout, offering enhanced durability and performance.

The panel's structure features a robust anodized aluminum alloy frame, highly transparent tempered glass with anti-reflective coating, and an IP68-rated junction box for superior weather resistance. This module is compatible with MC4 connectors, making it versatile for various installation configurations.

Electrical Performance Parameters |STC
Mode Type 515C/HBD
66(182)		 520COHBD
66(182)		 525C(HBD)
66(182		 530C(HBD)
66(182
Nominal Max.Power Pmax(W) 515 520 525 530
Max.Power Voltage Vmp(V) 3,850 38.70 38.89 39.09
Max.Power Current Imp(A) 13.38 13.44 13.50 13.56
Open Circuit Voltage Voc(V 46.17 46.37 46.57 46.77
Short Circuit Current lsc(A) 14.31 14.37 14.43 14.49
Module Eficiency (%) 21.69 21.90 22.11 22.32
Power Output Tolerance (W) 0~+5W
·STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5.
'Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type 515C(HBD)
66(182)		 520C(HBD)
66(182)		 525C(HBD)
66(182)		 530C(HBD)
66(182)
Nominal Max.Power Pmax(W) 386 390 394 398
Max.Power Voltage Vmp(V) 36.22 36.39 36.55 36.72
Max.Power Current Imp(A) 10.66 10.72 10.78 10.84
Open Circult Voltage Voc(V) 43.62 43.81 44.00 44.19
Short Circuit Current lsc(A) 11.58 11.63 11.68 11.73
‘NMOT:Iradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
*Power measurement tolerance ±3%.

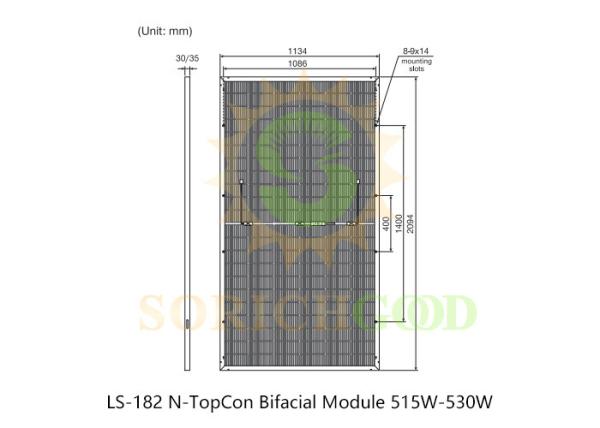

Structure Performance
Solar Cell Type 182mm N-TopCon Mono Cell (Half Cell)
Solar Cell Arrangement 132pcs(6x22)
Module Dimension 2094×1134×35mm/30mm
Weight 29.6kg(35mm)/28.4kg(30mm)
Front Glass 2.0mm,highly transparent tempered glass
with anti-reflective coating
Frame Anodized Aluminum Alloy
Junction Box IP68 rated
Cable 4mm²,portrait 400mm2(t0)0mm(-,)landscape m0( m(-)
Length can be customized
Diode Quantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 682pcs(35mm)/792pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient (Isc) +0.043%
Temperature Coefficient (Voc) -0.25%
Temperature Coefficient (Pmax) -0.30%

Maximum Parameters
Working Temperature -40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 30A

Application:

This module is ideal for large-scale commercial and utility solar power installations where maximum efficiency and reliability are paramount. Its bifacial design also makes it suitable for installations where reflected light from surfaces like rooftops or the ground can contribute to increased energy generation.

Shipping Methods

Supports global air and sea shipping.
