440W 182 Pure Black P-Type Monofacial Module Mono PV Solar Panels
440W 182 Pure Black P-Type Monofacial Module Mono PV Solar Panels
Specifications
Brand Name :
LS
Model Number :
PB440
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Power Range :
440W ~ 450W
Maximum Efficiency :
20.79%
Nominal Max. Power :
450W
Open Circuit Voltage (Voc) :
41.38V
Short Circuit Current (Isc) :
13.72A
Module Efficiency :
20.79%
Nominal Module Operating Temperature :
44±2°C
Maximum System Voltage :
1500V DC
Description

440W 182 Pure Black P-type Monofacial Module High-Efficiency Monocrystalline Silicon Panels

440W 182 Pure Black P-Type Monofacial Module Mono PV Solar Panels

Product Description:

The 182 Pure Black P-type Monofacial Module is designed for high-efficiency energy generation with a sleek, all-black aesthetic that complements both residential and commercial installations. With a power range of 440W to 450W and a maximum efficiency of 20.79%, this module is ideal for applications where visual appeal is as important as performance. The module features a robust anodized aluminum alloy frame, ensuring durability in various environmental conditions. Its half-cell structure enhances energy capture, making it a reliable choice for optimized power output even under partial shading.

Electrical Performance Parameters |STC
Model Type 440D(BPM)
60(182)		 445D(BPM)
60(182)		 450D(BPM)
60(182)
Nominal Max.Power Pmax(W) 440 445 450
Max.Power Voltage Vmp(V) 34.22 34.42 34.62
Max.Power Current Imp(A) 12.86 12.93 13.00
Open Circuit Voltage Voc(V) 40.98 41.18 41.38
Short Circuit Current bo(A) 13.60 13.66 13.72
Module Efficiency (%) 20.33 20.56 20.79
PowerOutput Tolerance (W) 0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5.
·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type 440D(BPM)
60(182)		 445D(BPM)
60(182)		 450D(BPM)
60(182)
Nominal Max.Power Pmax(W) 320 325 330
Max.Power Voltage Vmp(V) 31.24 31.44 31.64
Max.Power Current Imp(A) 10.25 10.34 10.43
Open Circuit Voltage Voc(V) 38.48 38.68 38.88
Short Circuit Current sc(A) 10.77 10.97 11.17
*NMOT:Irradiance800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
*Power measurement tolerance ±3%.
Structure Performance
Solar Cell Type 182mm Mono-crystalline (Half Cell)
Solar Cell Arrangement 120pcs(6×20)

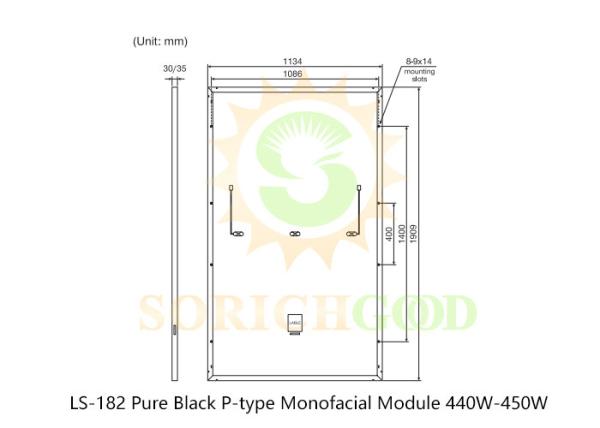

Module Dimension 1909×1134×35mm/30mm
Weight 23.2kg(35mm)/22.1kg(30mm)
Front Glass 3.2mm,highly transparent tempered glass
with anti-reflective coating
Back Sheet Black
Frame Anodized Aluminum Alloy (Black)
Junction Box IP68 rated
Cable 4mm²,portrait 200mm(,landscape 1400mm(+)
1400mm (-)
Length can be customized
Diode Quantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 744pcs(35mm)/864pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient(Isc) +0.048%
Temperature Coefficient (Voc) -0.26%
Temperature Coefficient(Pmax) -0.34%

Maximum Parameters
Working Temperature -40~+85℃
Maximum SystemVoltage 1500V DC
Nominal Maximum Fuse Current 25A

Application:

This module is perfect for residential rooftops, commercial buildings, and urban environments where both high energy yield and aesthetic integration are required. The all-black design allows it to blend seamlessly with modern architectural styles, making it an excellent choice for installations where appearance matters. Additionally, its enhanced temperature coefficient and high power output tolerance ensure reliable performance in a wide range of climates.

Shipping Methods

Supports global air and sea shipping.
