530W Monocrystalline Silicon Solar Panels For Commercial Solar Installations
530W Monocrystalline Silicon Solar Panels For Commercial Solar Installations
Specifications
Brand Name :
LS
Model Number :
PB530
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Power Range :
530W ~ 555W
Maximum Efficiency :
21.48%
Power Output Tolerance :
0W ~ +5W
Module Efficiency :
20.52% - 21.48% (depending on the model)
Nominal Max Power Voltage (Vmp) :
41.29V ~ 42.08V
Short Circuit Current (Isc) :
13.73A ~ 14.07A
Nominal Max. Power (Pmax) :
402W ~ 417W (NMOT conditions)
Maximum System Voltage :
1500V DC
Description

530W Durable Monocrystalline Silicon Panels for Commercial Solar Installations

530W Monocrystalline Silicon Solar Panels For Commercial Solar Installations

Product Description:

The 182 Pure Black P-type Bifacial Module represents a pinnacle of solar efficiency, offering a power range between 530W and 555W with a maximum efficiency of 21.48%. This module is designed with bifacial technology, enabling power generation from both sides, which increases overall energy yield and profitability. Its advanced structure, featuring 182mm mono-crystalline half cells arranged in a 144-cell configuration, ensures robust performance in various environmental conditions.

Electrical Performance Parameters |STC
Model Type 530D(HBD)535D(HBD) 540D(HBD) 545D(HBD)550D(HBD) 555D(HBD)
72(182) 72(182) 72(182) 72(182) 72(182) 72(182)
Nominal Max.Power Pmax(W 530 535 540 545 550 555
Max.Power Voltage Vmp(V 41.29 41.45 41.61 41.77 41.93 42.08
Max.Power Current Imp(A) 12.84 12.91 12.98 13.05 13.12 13.19
Open Circuit Voltage Voc(V) 49.30 49.40 49.52 49.64 49.78 49.93
Short CircuitCurrent Isc(A) 13.73 13.80 13.87 13.94 14.01 14.07
Module Efficiency (%) 20.52 20.71 20.90 21.10 21.29 21.48
Power Output Tolerance (W) 0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5.
·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type 530D(HBD)
72(182)		 535D(HBD)
72(182)		 540D(HBD)
72(182)		 545D(HBD)
72(182)		 550D(HBD)
72(182)		 555D(HBD)
72(182)
Nominal Max.Power Pmax(W 402 405 408 411 414 417
Max.Power Voltage Vmp(V) 38.65 38.78 38.88 39.00 39.13 39.26
Max.Power Current Imp(A) 10.38 10.42 10.47 10.52 10.57 10.63
Open Circuit Voltage Voc(V) 47.00 47.18 47.37 47.56 47.75 47.94
Short CircuitCurrent Isc(A) 11.10 11.15 11.21 11.26 11.31 11.36
·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
*Power measurement tolerance ±3%.

Structure Performance
Solar Cell Type 182mm Mono-crystalline(Half Cell)
Solar Cell Arrangement 144pcs(6×24)

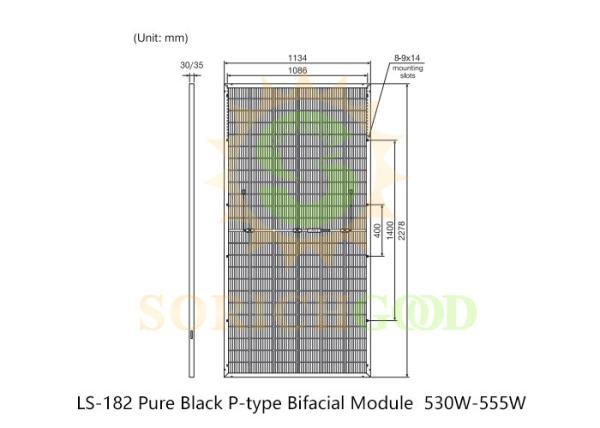

Module Dimension 2278×1134×35mm/30mm
Weight 32.3kg(35mm)/31.2kg(30mm)
Front Glass 2.0mm,highly transparent tempered glass
with ant-reflective coating
Frame Anodized Aluminum Alloy(Black)
Junction Box IP68 rated
Cable 4mm²,portrait 200mmlandscape¹4 +-
Length can be customized
Diode Quantity 3 pcs
Front side/Rearside 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 620pcs(35mm)/720pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient (Isc) +0.048%
Temperature Coefficient (Voc) -0.26%
Temperature Coefficient(Pmax) -0.34%

Maximum Parameters
Working Temperature -40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 25A

Application:

Ideal for large-scale commercial installations and solar farms, the 182 Pure Black P-type Bifacial Module is perfect for projects that demand higher energy output from limited space. The bifacial technology is especially suited for installations where reflected sunlight can be harnessed from surfaces like white rooftops, sand, or snow, further boosting power generation efficiency.

Shipping Methods:

Supports global air and sea shipping.
