525W Anodized Aluminum Alloy Frame Monocrystalline Silicon Panels for Solar Installations
525W Anodized Aluminum Alloy Frame Monocrystalline Silicon Panels for Solar Installations
Specifications
Brand Name :
LS
Model Number :
PtM525
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Solar Cell Arrangement :
108pcs(6x18)
Module Dimension :
1960x1303x35mm
Weight :
28.4kg(35mm)/27.3kg(30mm)
Front Glass :
3.2mm, highly transparent tempered glass with anti-reflective coating
Frame :
Anodized Aluminum Alloy (White)
Connector :
MC4 Compatible
Description

525W Anodized Aluminum Alloy Frame Monocrystalline Silicon Panels for Solar Installations

525W Anodized Aluminum Alloy Frame Monocrystalline Silicon Panels for Solar Installations

Product Description

The 210 P-type Monofacial Module offers a power range of 525W to 540W with a maximum efficiency of 21.14%. This module is designed for high performance in a variety of environments, providing consistent and reliable power output with a tolerance of 0W to +5W. The use of 210mm monocrystalline half cells arranged in a 6x18 configuration enhances the module's efficiency and durability, making it ideal for both residential and commercial solar projects. The module's robust construction includes a 3.2mm highly transparent tempered glass front and an anodized aluminum alloy frame, ensuring long-term durability and resistance to environmental factors.

Electrical Performance Parameters |STC
Model Type 525D(HPM)
54(210)		 530D(HPM)
54(210		 535D(HPM)
54(210)		 540D(HPM)
54(210)
Nominal Max.Power Pmax(W) 525 530 535 540
Max.Power Voltage Vmp(V) 30.10 30.30 30.50 30.70
Max.Power Current Imp(A) 17.45 17.50 17.55 17.60
OpenCircuitVoltage Voc(V) 36.80 37.20 37.60 37.80
Short Circuit Current Isc(A) 18.34 18.38 18.42 18.46
Module Efficiency (%) 20.56 20.75 20.95 21.14
Power Output Tolerance (W) 0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5.
·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type 525D(HPM)
54(210)		 530D(HPM)
54(210)		 535D(HPM)
54(210)		 540D(HPM)
54(210)
Nominal Max.Power Pmax(W) 398 402 406 410
Max.Power Voltage Vmp(V) 28.33 28.54 28.74 28.94
Max.Power Current Imp(A) 14.05 14.09 14.13 14.17
Open Circuit Voltage Voc(V) 34.40 34.60 34.80 35.00
Short Circuit Current Isc(A) 14.80 14.84 14.88 14.92
*NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
*Power measurement tolerance ±3%.

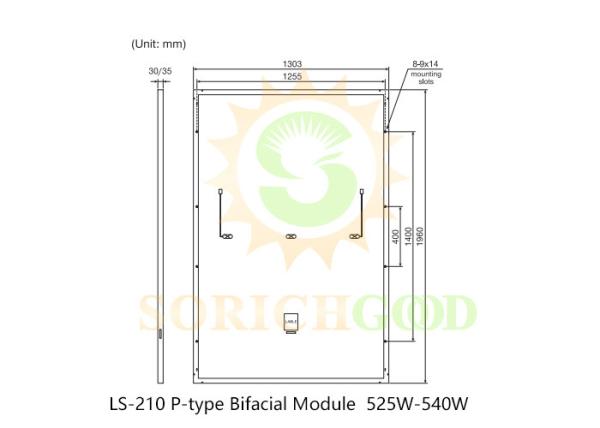

Structure Performance
Solar Cell Type 210mm Mono-crystalline(Half Cell)
Solar Cell Arrangement 108pcs(6×18)
Modu|e Dimension 1960×1303×35mm/30mm
Weight 28.4kg(35mm)/27.3kg(30mm)
Front Glass 3.2mm,highly transparent tempered glass
with anti-reflective coating
Back Sheet White
Frame Anodized Aluminum Alloy
Junction Box IP68 rated
Cable 4mm²,portrait ) ,landscape m( ) (-
Length can be customized
Diode Quantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 558pcs(35mm)/648pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient (Isc) +0.048%
Temperature Coefficient(Voc) -0.26%
Temperature Coefficient(Pmax) -0.34%

Maximum Parameters
Working Temperature -40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 30A

Application

This module is suitable for large-scale ground-mounted solar power plants, commercial rooftops, and residential solar installations. Its high efficiency and power output make it an excellent choice for maximizing energy production in limited space. The module's strong mechanical load capacity and resistance to environmental stressors ensure reliable performance even in harsh conditions.

Shipping Methods

Supports global air and sea shipping.
