PB535 182mm Monocrystalline Silicon Panels for Large-Scale Commercial Solar Installations
PB535 182mm Monocrystalline Silicon Panels for Large-Scale Commercial Solar Installations
Specifications
Brand Name :
LS
Model Number :
PB535
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Power Range :
535W ~ 550W
Maximum Efficiency :
21.29%
Module Dimension :
2278×1134×35mm
Weight :
32.3kg (35mm frame) / 31.2kg (30mm frame)
Front/Rear Glass :
2.0mm tempered with anti-reflective coating
Temperature Coefficient (Pmax) :
-0.34%
Nominal Operating Temperature :
44±2℃
Maximum System Voltage :
1500V DC
Description

PB535 182mm Monocrystalline Silicon Panels for Large-Scale Commercial Solar Installations

PB535 182mm Monocrystalline Silicon Panels for Large-Scale Commercial Solar Installations

Product Description:

The 182 P-type Bifacial Module offers a robust power range of 535W to 550W, ensuring high efficiency and reliable performance. With an impressive maximum efficiency of 21.29%, this module is designed to deliver superior energy output from both sides, maximizing comprehensive efficiency for your solar energy systems. Its innovative structure includes 144 pieces of 182mm mono-crystalline half cells arranged in a 6x24 configuration, housed within a durable anodized aluminum alloy frame. The 2.0mm thick, highly transparent tempered glass with anti-reflective coating further enhances the module's ability to absorb sunlight from all angles, boosting energy generation.

Electrical Performance Parameters |STC
Model Type 535D(HBD)
72(182)		 540D(HBD)
72(182)		 545D(HBD)
72(182)		 550D(HBD)
72(182)
Nominal Max.Power Pmax(W) 535 540 545 550
Max.Power Voltage Vmp(V) 41.45 41.61 41.77 41.93
Max.Power Current Imp(A) 12.91 12.98 13.05 13.12
Open Circuit Voltage Voc(V) 49.40 49.52 49.64 49.78
Short Circuit Current Isc(A) 13.80 13.87 13.94 14.01
Module Efficiency (%) 20.71 20.90 21.10 21.29
Power Output Tolerance (W) 0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5.
·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type 535D(HBD)
72(182)		 540D(HBD)
72(182)		 545D(HBD)
72(182)		 550D(HBD)
72(182)
Nominal Max.Power Pmax(W) 405 408 411 414
Max.Power Voltage Vmp(V) 38.78 38.88 39.00 39.13
Max.Power Current Imp(A) 10.42 10.47 10.52 10.57
Open Circuit Voltage Voc(V) 47.18 47.37 47.56 47.75
Short CircuitCurrent Isc(A) 11.15 11.21 11.26 11.31
·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
·Power measurement tolerance ±3%.

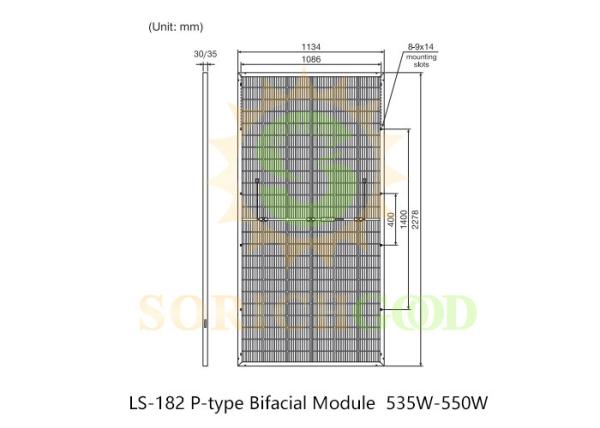

Structure Performance
Solar Cell Type 182mm Mono-crystalline (Half Cell)
Solar Cell Arrangement 144pcs(6×24)
Module Dimension 2278×1134×35mm/30mm
Weight 32.3kg(35mm)/31.2kg(30mm)
Front Glass 2.0mm,highly transparent tempered glass
with anti-reflective coating
Frame Anodized Aluminum Alloy
Junction Box IP68 rated
Cable 4mm²,portrait 4 (()- ,landscape11 ) (-
Lengthcan be customized
Diode Quantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 620pcs(35mm)/720pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient (Isc) +0.048%
Temperature Coefficient (Voc) -0.26%
Temperature Coefficient (Pmax) -0.34%

Maxium Parameters
Working Temperature -40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 25A

Application:

This module is ideal for large-scale commercial solar installations and utility-scale projects where space optimization and maximum output are critical. Its bifacial design makes it perfect for installations where reflective surfaces are available, such as rooftops or ground-mounted systems with light-colored surfaces, to capitalize on the additional energy generation from the rear side.

Shipping Methods:

Supports global air and sea shipping.
